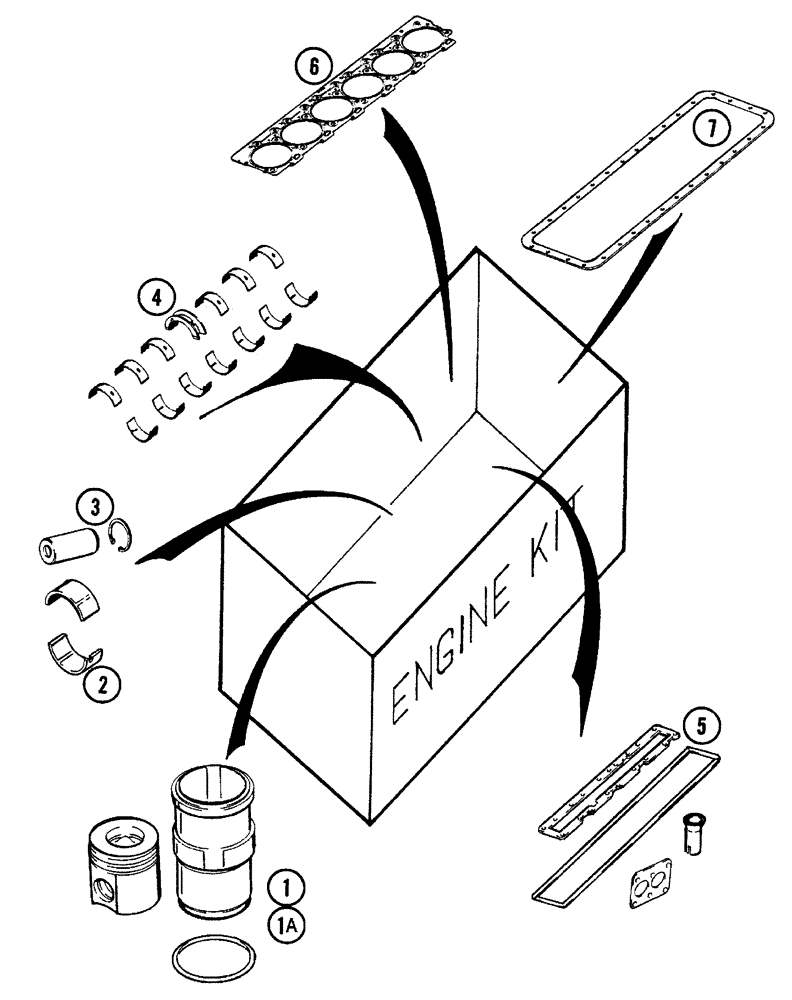

Запчасти Case IH CPX620 (02-42) - KIT ENGINE OVERHAUL - BSN Y6T011701 (01) - ENGINE

A78020

PACKAGE, REPAIR

Engine Overhaul Kit, Inc. 1 - 8

1шт.

1

A77970

PISTON & RINGS KIT

Standard

6шт.

See Figure 02-36

1шт.

2

87443389

BEARING LINER

Connecting Rod, Standard

6шт.

See Figure 02-36

1шт.

3

J934046

PISTON PIN,45mm OD x 91mm L

Piston

6шт.

See Figure 02-36

1шт.

4

J945930

BEARING SET

Main, Standard

6шт.

See Figure 02-33

1шт.

5

J945929

THRUST BEARING

Thrust, Standard

1шт.

See Figure 02-33

1шт.

6

A78018

GASKET KIT

Valve Grind

1шт.

See Figure 02-38

1шт.

7

J943366

CYLINDER HEAD GASKET,2.11mm Thk

1шт.

See Figure 02-24

1шт.

8

87308050

GASKET,0.95mm Thk

Oil Pan

1шт.

See Figure 02-20

1шт.
