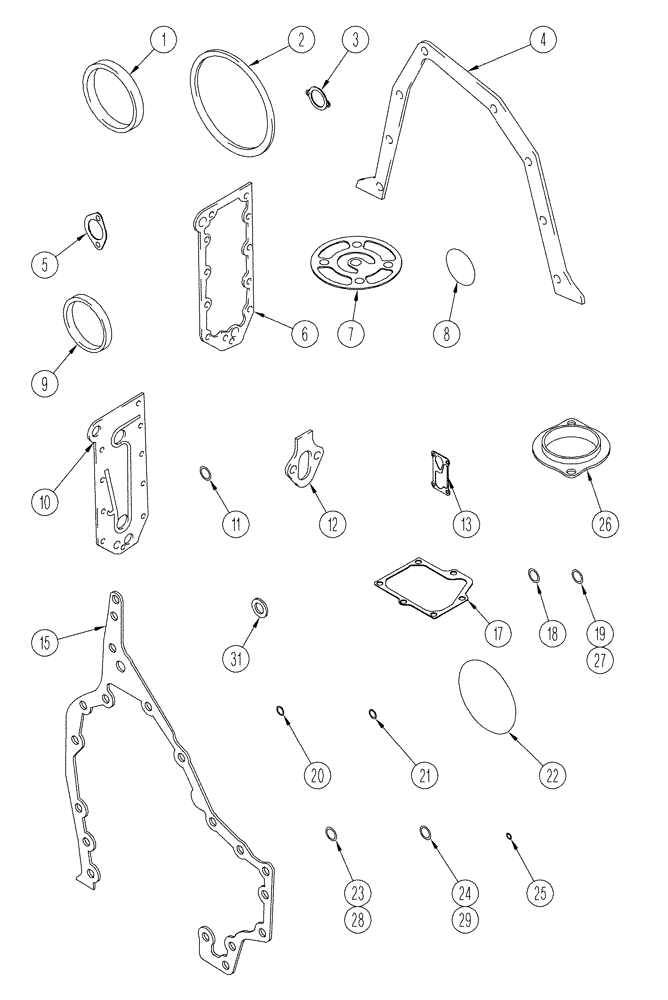

Запчасти Case IH CPX620 (02-40) - GASKET KIT - CYLINDER BLOCK - BSN Y6T011701 (01) - ENGINE

A77981

GASKET KIT

Inc. 1 - 31

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

Front Cover

1шт.

See Figure 02-10

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

6шт.

See Figures 02-22, 02-25

1шт.

3

J945603

GASKET,1.65mm Thk

Water Inlet Mounting

1шт.

See Figure 02-31

1шт.

4

J914301

GASKET

Rear Cover

1шт.

See Figure 02-33

1шт.

5

J914302

GASKET

Suction Tube

1шт.

See Figure 02-20

1шт.

6

J918174

GASKET,0.71mm Thk

Oil Cooler Mounting

1шт.

See Figure 02-18

1шт.

7

87447957

GASKET,1.2mm Thk

Filter Head

1шт.

See Figure 02-18

1шт.

8

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

66 mm ID

1шт.

See Figure 02-31

1шт.

9

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

1шт.

See Figure 03-14

1шт.

10

J929011

GASKET,1.19mm Thk

Oil Cooler

1шт.

See Figure 02-18

1шт.

11

J930911

O-RING,0.07" Thk x 0.8" ID

3/4" ID x 1/16"

1шт.

See Figure 02-18

1шт.

12

J939258

GASKET,1.21mm Thk

Pump Mounting

1шт.

See Figure 02-41

1шт.

13

J937367

GASKET

1шт.

See Figure 02-26

1шт.

15

J944293

GASKET,1.01mm Thk

Gear Housing

1шт.

See Figure 02-10

1шт.

17

87436828

GASKET

Breather

1шт.

See Figure 02-27

1шт.

18

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

2шт.

See Figure 03-05

1шт.

19

87405641

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

3/4 ID x 3/32

2шт.

See Figure 03-05

1шт.

20

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

See Figure 02-26

1шт.

21

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

2шт.

See Figure 02-26

1шт.

22

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

See Figure 02-09

1шт.

23

A77724

O-RING,3.05mm Thk x 23.62mm ID

1шт.

See Figure 02-18

1шт.

24

313246A1

O-RING,2.2mm Thk x 19.3mm ID

19 ID x 2.2 mm

2шт.

See Figure 02-31

1шт.

25

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

9шт.

See Figure 03-05

1шт.

26

J945603

GASKET,1.65mm Thk

Water Inlet

1шт.

See Figure 02-26

1шт.

27

237-8012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 8, 90 Duro

3/4 OD Tube

1шт.

28

J678912

O-RING,2.2mm Thk x 11.3mm ID

2шт.

29

J330202

O-RING,11.3MM ID x 2.2 Thk

2шт.

30

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 mm, Replaces J935171

4шт.
