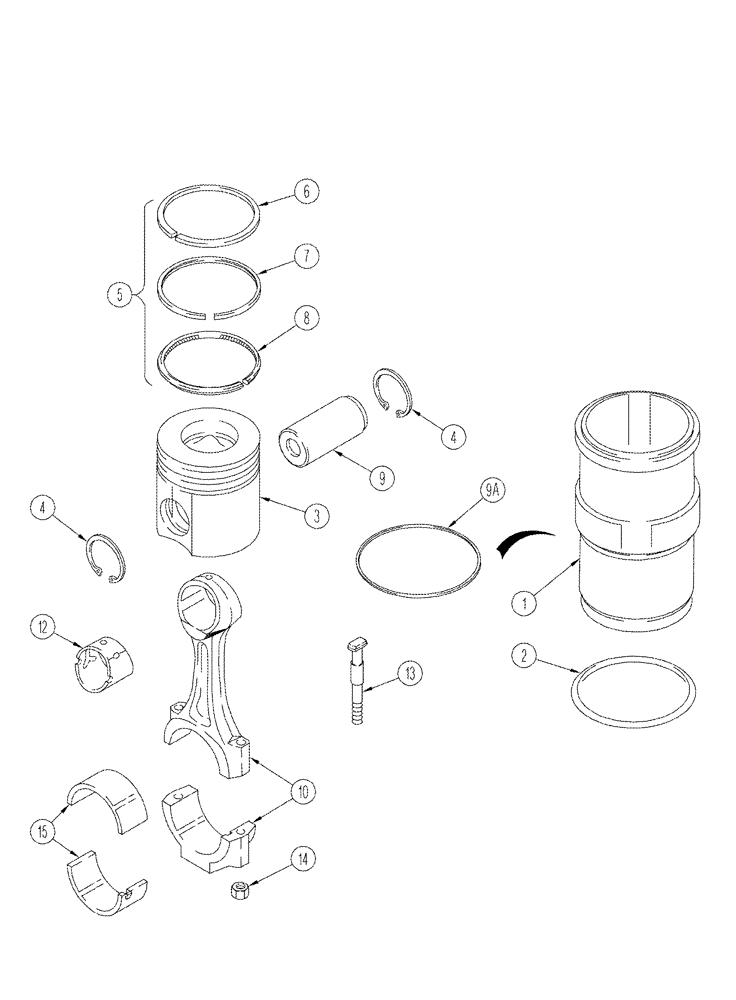

Запчасти Case IH CPX620 (02-36) - PISTONS CONNECTING RODS - BSN Y6T011701 (01) - ENGINE

A77970

PISTON & RINGS KIT

Standard, Inc. 1 - 8

6шт.

1

J948095

SLEEVE CYLINDER,114.02mm ID x 130.95mm OD x 234.12mm L

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

1шт.

J800320

PISTON & RINGS KIT

Standard, Inc. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

2шт.

5

J802538

PISTON RINGS KIT

Standard, Inc. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

RING, Top

1шт.

7

NSS

NOT SOLD SEPARAT

RING, Middle

1шт.

8

NSS

NOT SOLD SEPARAT

RING, Bottom

1шт.

9

J934046

PISTON PIN,45mm OD x 91mm L

Piston

6шт.

9b

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

(.010")

1шт.

9b

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

(.015")

1шт.

9b

J924447

SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk

(.020")

1шт.

9b

J924448

SHIM,0.762mm Thk

(.030")

1шт.

9b

J924449

SHIM,1.000mm Thk

(.040")

1шт.

JR901383

REMAN-CONNECTING ROD

N.A. Only, Inc. 10 - 14

6шт.

JC901383

CORE-ROD CONNECTING

CORE-CONNECTING ROD Return Number

1шт.

J901383

CONNECTING ROD

Inc. 10 - 14

6шт.

84487529R

REMAN-CONNECTING ROD

CPX620 PISTONS CONNECTING RODS - BSN Y6T011701 (5/05 - 8/06), Reman for New P/N J901383

6шт.

84487529C

CORE-ROD CONNECTING

Return Number

1шт.

10

NSS

NOT SOLD SEPARAT

ROD

1шт.

12

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

1шт.

13

J928870

ROD

2шт.

14

J934864

NUT

2шт.

15

87443389

BEARING LINER

Connecting Rod, Standard

6шт.

15

87443529

BEARING LINER

Connecting Rod, Undersize 0.25 mm

6шт.

15

87443532

BEARING LINER

Connecting Rod, Undersize 0.50 mm

6шт.

15

87443533

BEARING LINER

Connecting Rod, Undersize 0.75 mm

6шт.

15

87443534

BEARING LINER

Connecting Rod, Undersize 1.00 mm

6шт.
