Запчасти Case IH CPX620 (02-35) - FLYWHEEL AND BACKING PLATE (01) - ENGINE

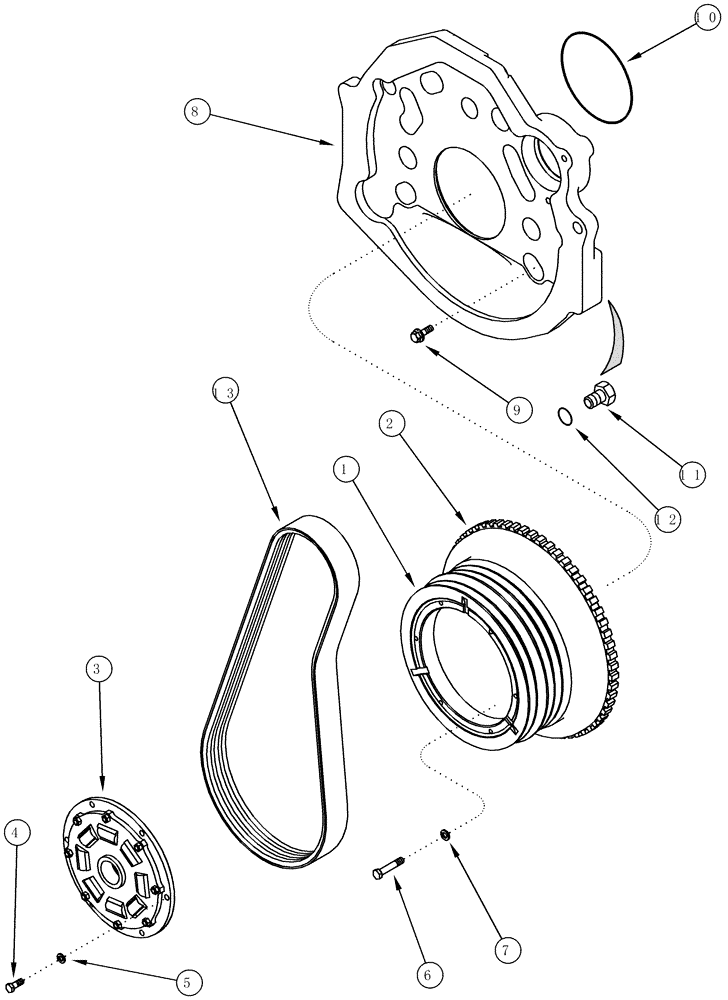

Схема запчастей Case IH CPX620 - (02-35) - FLYWHEEL AND BACKING PLATE (01) - ENGINE
7
11
9
8
6
4
5
12
10
3
1
2
13

Артикул

Название

Примечание

Количество

431642A1

PULLEY

Inc. 1- 2

1шт.

1

NSS

NOT SOLD SEPARAT

PULLEY, Flywheel

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR

1шт.

3

391379A1

DRIVE PLATE,263.45mm OD

1шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

5

492-11038

LOCK WASHER,3/8"

6шт.

6

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

7

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

8шт.

8

J913593

PLATE

1шт.

9

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

10шт.

10

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

11

J910248

PLUG

Includes 12

1шт.

12

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

13

1546117C2

V-BELT,1.97" W x 76.50" L, 3 Ribs

Fan Drive, Rear, Serial Range: -Y6T011701

1шт.

13

87459047

BELT,0.64" W x 73.80" L, 3 Ribs

Fan Drive, Rear

1шт.

Выбрано товаров: 15
