Запчасти Case IH CPX620 (02-34) - CRANKSHAFT - ASN Y6T011701 (01) - ENGINE

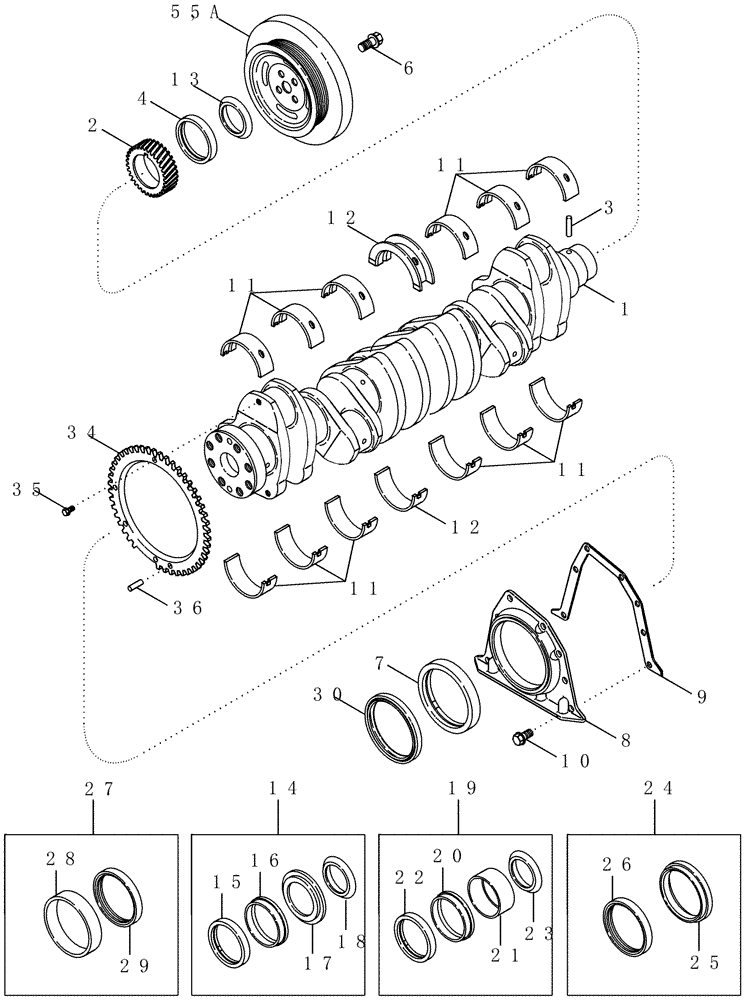

Схема запчастей Case IH CPX620 - (02-34) - CRANKSHAFT - ASN Y6T011701 (01) - ENGINE
25
29
27
22
17
20
5a
18
11
1
30
15
34
13
11
19
23
2
7
8
6
35
4
16
11
21
36
26
14
3
10
9
12
11
24
28
12

Артикул

Название

Примечание

Количество

87356216

REMAN-CRANKSHAFT

Remanufactured, Only For N.A.

1шт.

87356215R

REMAN-CRANKSHAFT

CPX620 CASE IH COTTON PICKER, CRANKSHAFT - ASN Y6T011701 (5/05-8/06), Reman for New PN 87356216

1шт.

87356215C

CORE-CRANKSHAFT

Return Number

1шт.

1

87356215

CRANKSHAFT

With Speed Indicator Ring

1шт.

1

87356215R

REMAN-CRANKSHAFT

CPX620 CASE IH COTTON PICKER, CRANKSHAFT - ASN Y6T011701, With Speed Indicator Ring (5/05-8/06)

1шт.

1

87356215C

CORE-CRANKSHAFT

Return Number

1шт.

2

J918776

GEAR

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Order A77790, REF 14

1шт.

5

87357611

DAMPER

1шт.

5a

87422144

PULLEY,199.42mm OD

1шт.

6

J914118

FLANGE BOLT,Hex, M14 x 1.5 x 60mm, Cl 12.9

M14 x 35

5шт.

7

NSS

NOT SOLD SEPARAT

Seal, Order J934486, REF 24

1шт.

8

J933384

REAR COVER

1шт.

9

J914301

GASKET

1шт.

10

87409160

SCREW,Hex, M6 x 1 x 16mm, Cl 10.9

M6 x 16; 10,9

8шт.

11

J945930

BEARING SET

Main, Standard

6шт.

11

J945931

BEARING SET

Main, Undersize 0,25 mm

6шт.

11

J945932

BEARING SET

Main, Undersize 0,50 mm

6шт.

11

J945933

BEARING SET

Main, Undersize 0,75 mm

6шт.

11

J945934

BEARING SET

Main, Undersize 1,00 mm

6шт.

12

J945929

THRUST BEARING

Thrust, Standard

1шт.

12

J945922

THRUST BEARING

Thrust, Undersize 0,25 mm

1шт.

12

J945923

THRUST BEARING

Thrust, Undersize 0,50 mm

1шт.

12

J945924

THRUST BEARING

Thrust, Undersize 0,75 mm

1шт.

12

J945925

THRUST BEARING

Thrust, Undersize 1,00 mm

1шт.

12

J945926

THRUST BEARING

Thrust, Standard, Oversize 0,25 mm

1шт.

12

J945927

THRUST BEARING

Thrust, Standard, Oversize 0,50 mm

1шт.

12

J945928

THRUST BEARING

Thrust, Undersize 0,50 mm, Oversize 0,50 mm

1шт.

13

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

Order A77790, REF 14

1шт.

14

A77790

SEAL KIT

Crankshaft, Front, Inc. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Tool

1шт.

17

NSS

NOT SOLD SEPARAT

Tool

1шт.

18

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

1шт.

19

A77808

SERVICE KIT

Crankshaft, Front, Inc. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

21

NSS

NOT SOLD SEPARAT

Tool

1шт.

22

NSS

NOT SOLD SEPARAT

Seal

1шт.

23

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

1шт.

24

J934486

SERVICE KIT

Crankshaft, Rear, Inc. 24A, 25, 26

1шт.

24a

NSS

NOT SOLD SEPARAT

Tool, Not Illustrated

1шт.

25

NSS

NOT SOLD SEPARAT

Tool

1шт.

26

NSS

NOT SOLD SEPARAT

Seal

1шт.

27

A77810

SERVICE KIT

Crankshaft, Rear, Inc. 28, 29

1шт.

28

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

29

NSS

NOT SOLD SEPARAT

Seal

1шт.

30

87434865

SEAL

Dust

1шт.

34

87335719

RING

Speed Indicator

1шт.

35

87335729

BOLT

M6 x 1 x 12

4шт.

36

J329899

DOWEL,5.01mm OD x 10mm L

1шт.

Выбрано товаров: 51
