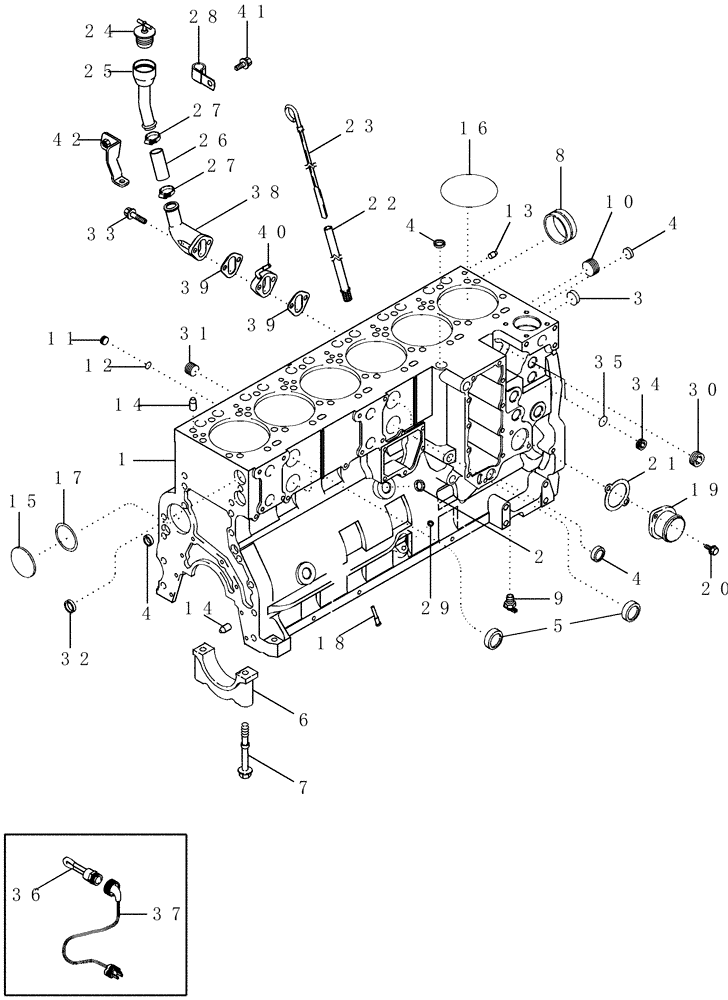

Запчасти Case IH CPX620 (02-31) - ENGINE CYLINDER BLOCK - BSN Y6T011701 (01) - ENGINE

124701A2

ENGINE

ASSEMBLY, Complete, 340 hp, 6TAA-8304, Less : Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe, Order 409463A1, Serial Range: -Y6T011701

1шт.

87459578

ENGINE

ASSEMBLY Complete, 365 hp, Tier 3, Start Serial: Y6T011701

1шт.

409463A1

BASIC ENGINE

8.3L, 24 Valve, 6 Cyl.

1шт.

Note: Basic engines and reman engines are generic engines. The engines are complete internally; however, externally all parts are not supplied with the engines. Check the configuration of the engine being removed, with the configuration of the engine being installed. For any external components not supplied with the engine being installed, reuse those parts from the engine that has just been removed. Do not return the old engine, until the unit is reassembled.

1шт.

409463A1R

REMAN-BASIC ENGINE

CPX620, Tier 2

1шт.

409463A1C

CORE-BASIC ENGINE

Return Part Number

1шт.

84252738R

REMAN-BASIC ENGINE

1шт.

84252738C

CORE-BASIC ENGINE

Return Part Number

1шт.

J991308

SHORT ENGINE

6TAA-8304 Emissions Certified Engine, With: Stripped Short Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings, Inc. 1 - 8

1шт.

JR991308

REMAN-SHORT ENGINE

1шт.

6830SHBC

CORE-SHORT ENGINE

Return Part Number Engine, Short Block Cyl.

1шт.

1

87444195

BASIC BLOCK

Stripped, Also Order J800332 and J945967, Inc. 3 - 8

1шт.

2

J920706

PLUG

22 mm OD

17шт.

3

A77586

PLUG

28.9 mm

2шт.

4

A77506

PLUG

21 mm

4шт.

5

J905401

PLUG

35 mm

4шт.

6

87444056

BEARING CAP,159 mm OD x 34 mm

7шт.

7

87444059

BOLT

M14 x 128

14шт.

8

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

7шт.

See Figure 02-29

1шт.

87444569

SERVICE KIT

Block, Inc. 9 - 18

1шт.

9

217-103

COCK, DRAIN

1/4" PT

1шт.

10

86625135

PLUG,1" - 11-1/2 NPT

1шт.

11

J678923

PLUG,M10 x 1

10 mm, Inc. 12

6шт.

12

86625087

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

14

J901846

PIN,12.01mm OD x 24mm L

4шт.

15

41-3044

PLUG,Exp, 2 3/4"

(70 mm)

1шт.

16

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

6шт.

17

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

66 mm ID

1шт.

18

J928031

NOZZLE,8.5mm OD x 30mm L

12шт.

19

J944720

HYD CONNECTOR

Water Inlet

1шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

21

J945603

GASKET,1.65mm Thk

Water Inlet Mounting

1шт.

22

J905779

TUBE,9.52 mm OD x 228 mm L

Dipstick

1шт.

23

87412249

DIPSTICK

Oil

1шт.

24

A77424

FILLER CAP

Oil Cap

1шт.

25

87404207

TUBE,1.5" OD

Oil Fill

1шт.

26

J912686

HOSE,38.1mm ID x 84mm L

1шт.

27

214-1528

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm, W/ Liner

2шт.

28

A77695

MOUNTING CLIP

1шт.

29

J943808

PLUG

22 mm

1шт.

30

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

7шт.

31

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

1шт.

32

A77506

PLUG

30 mm

4шт.

33

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

2шт.

34

313244A1

PLUG

Hex Socket, 22 mm, Includes 35

2шт.

35

313246A1

O-RING,2.2mm Thk x 19.3mm ID

19 ID x 2.2 mm

1шт.

310493A1

KIT

Engine Block Heater, 120V/1000W, Inc. 40, 41

1шт.

36

NSS

NOT SOLD SEPARAT

ELEMENT

1шт.

37

196466A1

ELECTRIC CABLE

1829 mm (72")

1шт.

310494A1

KIT

Engine Block Heater 240V/1000W, Inc. 40, 41

1шт.

36

NSS

NOT SOLD SEPARAT

ELEMENT

1шт.

37

J913112

WIRE HARNESS

305 mm (12")

1шт.

38

87404211

ELBOW

1шт.

39

J939258

GASKET,1.21mm Thk

2шт.

40

87361265

CONNECTION

CONNECTION, Oil Drain

1шт.

41

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

42

87404209

SUPPORT

1шт.

A78020

PACKAGE, REPAIR

Engine Block, Not Illustrated

1шт.

See Figure 08-45

1шт.
