Запчасти Case IH CPX620 (02-22) - CYLINDER HEAD COVER - BSN Y6T011701 (01) - ENGINE

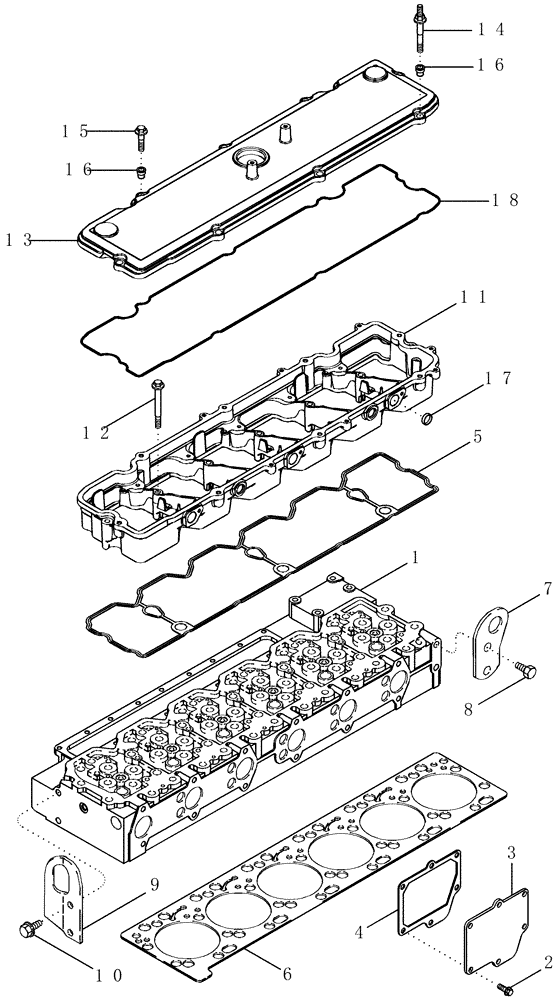

Схема запчастей Case IH CPX620 - (02-22) - CYLINDER HEAD COVER - BSN Y6T011701 (01) - ENGINE
18
17
10
11
4
5
2
16
14
15
7
1
12
9
8
16
6
13
3

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

Head, Cylinder

1шт.

See Figure 02-24

1шт.

2

87409160

SCREW,Hex, M6 x 1 x 16mm, Cl 10.9

M6 x 16 mm; 10.9

6шт.

3

87413814

COVER

1шт.

4

87436828

GASKET

1шт.

5

J939284

GASKET

Valve Cover

1шт.

6

J943366

CYLINDER HEAD GASKET,2.11mm Thk

1шт.

7

J944239

BRACKET

Front

1шт.

8

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

9

J944290

BRACKET

Rear

1шт.

10

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

11

87361258

HOUSING, Rocker Lever

1шт.

12

845-8075

BOLT,Hvy Hex, M8 x 75mm, Cl 8.8

5шт.

13

87361262

COVER, Valve

1шт.

14

87340279

SCREW,Hex Flg, M8 x 1.25 x 35mm

M8

1шт.

15

J900632

FLANGE BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

7шт.

16

87342136

ISOLATOR

8шт.

17

J920706

PLUG

4шт.

18

87345861

GASKET,3.2mm Thk

Valve Cover

1шт.

Выбрано товаров: 19
