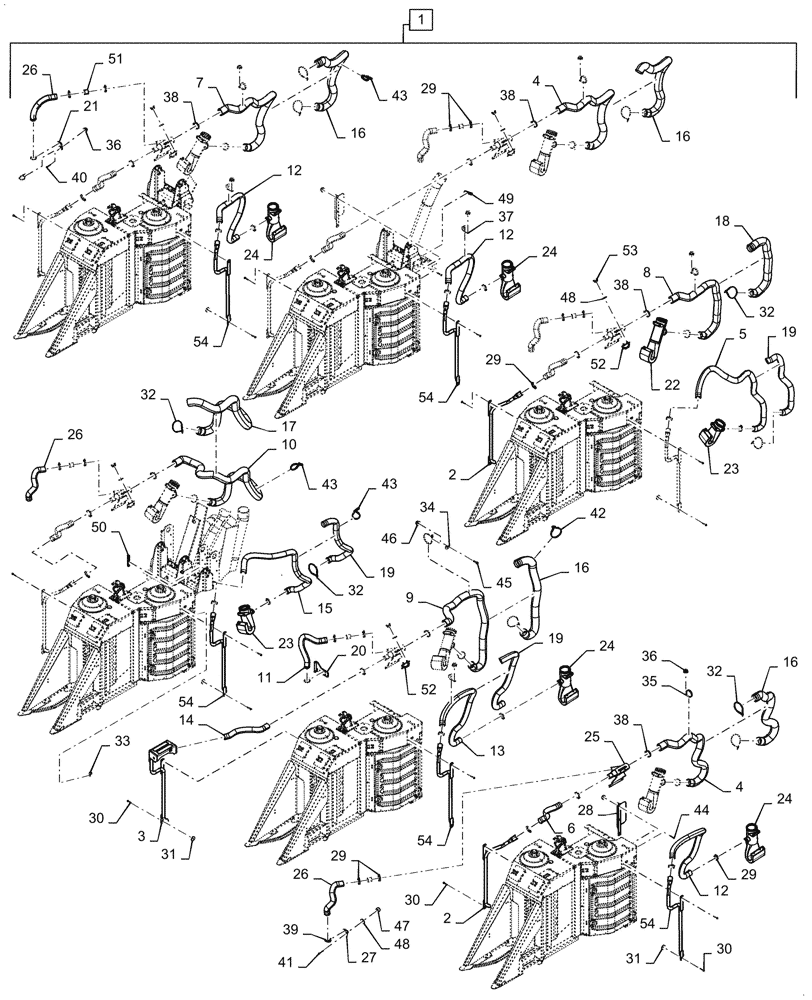

Запчасти Case IH CPX620 (88.016.03) - KIT, JET POST (88) - ACCESSORIES

1

47879272

KIT

Jet Post, Incl 2 - 54

1шт.

2

47825825

TUBE

Jet Post

5шт.

3

47864252

TUBE

RH Jet Post

1шт.

4

47862295

HOSE

3" 1830mm

2шт.

5

47881631

HOSE

2" 2160mm

1шт.

6

47881449

HOSE

Vaccum, 435mm

5шт.

7

47868227

HOSE

3" 1860mm

1шт.

8

47862298

HOSE

3" 1780mm

1шт.

9

47862297

HOSE

3" 2160mm

1шт.

10

47877983

HOSE

3" 3330mm

1шт.

11

47881634

HOSE

2" 710mm

1шт.

12

47880070

HOSE

Vaccum, 1460mm

3шт.

13

47880069

HOSE

Vaccum, 1640mm

1шт.

14

47881635

HOSE

2" 584mm

1шт.

15

47881630

HOSE

2" 1920mm

1шт.

16

47870292

SLEEVE

Hose, 3.5" 1500mm

4шт.

17

47878718

SLEEVE

Hose, 3.5" 2870mm

1шт.

18

47870288

SLEEVE

Hose, 3.5" 1265mm

1шт.

19

47870314

SLEEVE

2.5" 1225mm

3шт.

20

47916697

ANGLE

Outlet Latch, 30/32" Row

1шт.

21

47869045

SUPPORT

Jet Post, Outlet

1шт.

22

47839102

NOZZLE

Front Long

6шт.

23

47839049

NOZZLE

Rear Narrow, Short

2шт.

24

47839530

NOZZLE

Standard Rear

4шт.

25

47946105

PLENUM

Jet Post

6шт.

26

47881447

HOSE

Vaccum, 490mm

5шт.

27

47869047

SUPPORT

Jet Post, Outlet

4шт.

28

47869086

SHIELD

Plant

4шт.

29

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

36шт.

30

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

24шт.

31

86632580

WASHER,0.41" ID x 0.73" OD x 0.06" Thk

12шт.

32

386170C1

CABLE TIE,.30" x 27 1/2"

18шт.

33

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

34

86598598

CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type

1шт.

35

87021162

CLAMP,88.9mm, Coat, 8.7mm Bolt Hole, P Type

6шт.

36

145458

SERRATED NUT,5/16"-18 GR 5 ZND

21шт.

37

86639009

CLAMP,63.5mm, Coat, 13.5mm Bolt Hole, P Type

5шт.

38

86625032

HOSE CLAMP,88.9mm ID - 65mm ID

12шт.

39

87438046

CABLE TIE,375.9 mm L x 8mm W

12шт.

40

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

41

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

8шт.

42

1546052C1

STRAP

13шт.

43

47870947

CABLE TIE

18шт.

44

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

12шт.

45

30944

BOLT,Hex Flg, 1/2" - 13 x 1"

3шт.

46

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

47

86050277

NUT,5/16"-18, GB

8шт.

48

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

20шт.

49

47877947

TRIM

Edging, 95mm

3шт.

50

47877948

TRIM

Edging, 150mm

1шт.

51

47942249

ORIFICE

2"

6шт.

52

47942488

COVER

Jet Post, Plenum

6шт.

53

86627130

WING NUT,1/4"-20

12шт.

54

47825820

TUBE

Jet Post

6шт.
