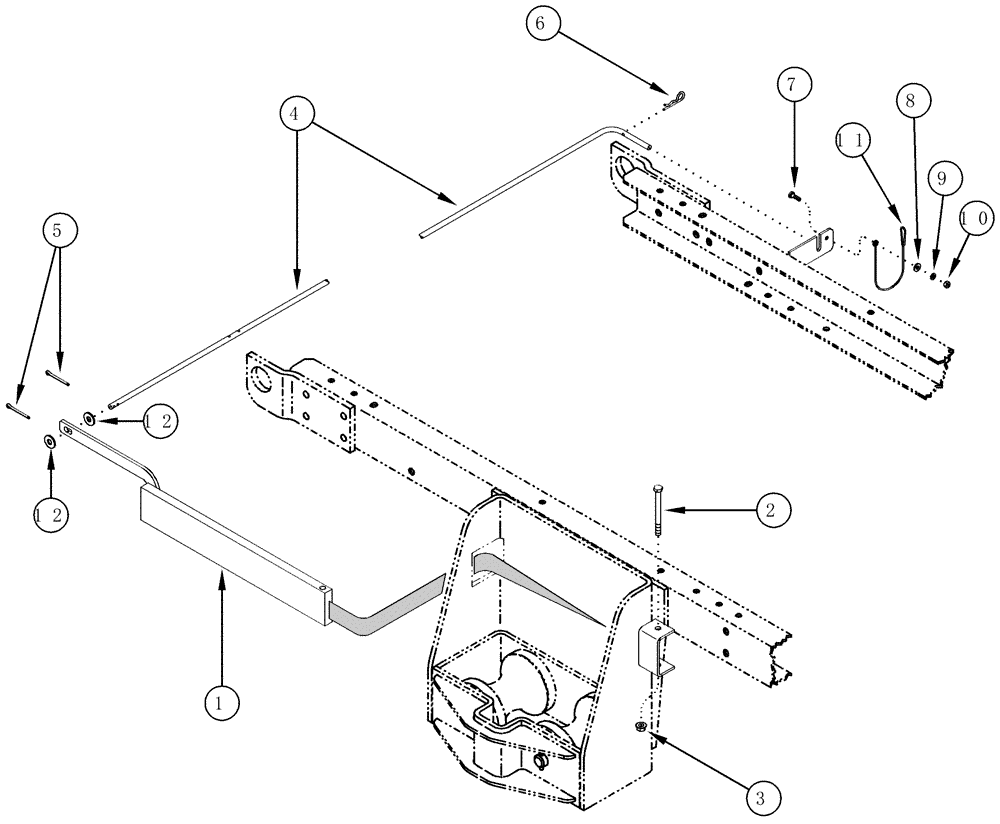

Запчасти Case IH CPX620 (09D-23) - REAR BASKET LOCK (16) - BASKET

1

399091A2

LOCK ASSY

Rear

1шт.

2

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

1шт.

3

231-5146

FLANGE NUT,3/8"-16

1шт.

4

399095A2

ROD

Cylinder Lock, Rear

1шт.

5

432-1216

COTTER PIN,3/16" x 1"

Replaces 432-1228

2шт.

6

586591R1

COTTER PIN

1/8

1шт.

7

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

8

495-11028

WASHER,1/4", SAE

1шт.

9

492-11025

LOCK WASHER,1/4"

1шт.

10

425-104

NUT,1/4"-20, Cl 5

1шт.

11

416624A1

ROPE

1/4 x 12 in, Tether, If Equipped

1шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.
