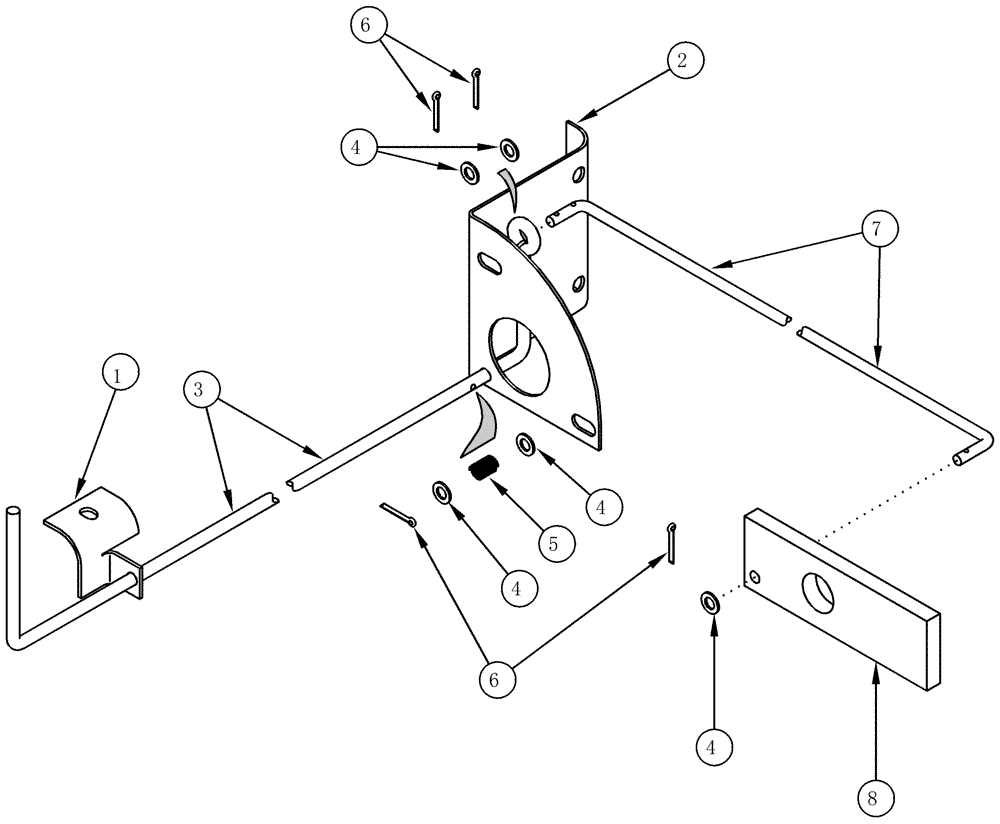

Запчасти Case IH CPX620 (09D-22) - FRONT BASKET LOCK (16) - BASKET

1

410007A1

ANGLE

Cylinder Lock, Front

1шт.

2

410008A1

ANGLE

Inner Basket, Cylinder Lock

1шт.

3

410006A1

ROD

1шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

5шт.

5

540815R2

SPRING

1шт.

6

432-612

COTTER PIN,3/32" x 3/4"

4шт.

7

410005A1

ROD

1шт.

8

1270025C2

LARGE PLATE

PLATE, LARGE Basket Lock

1шт.
