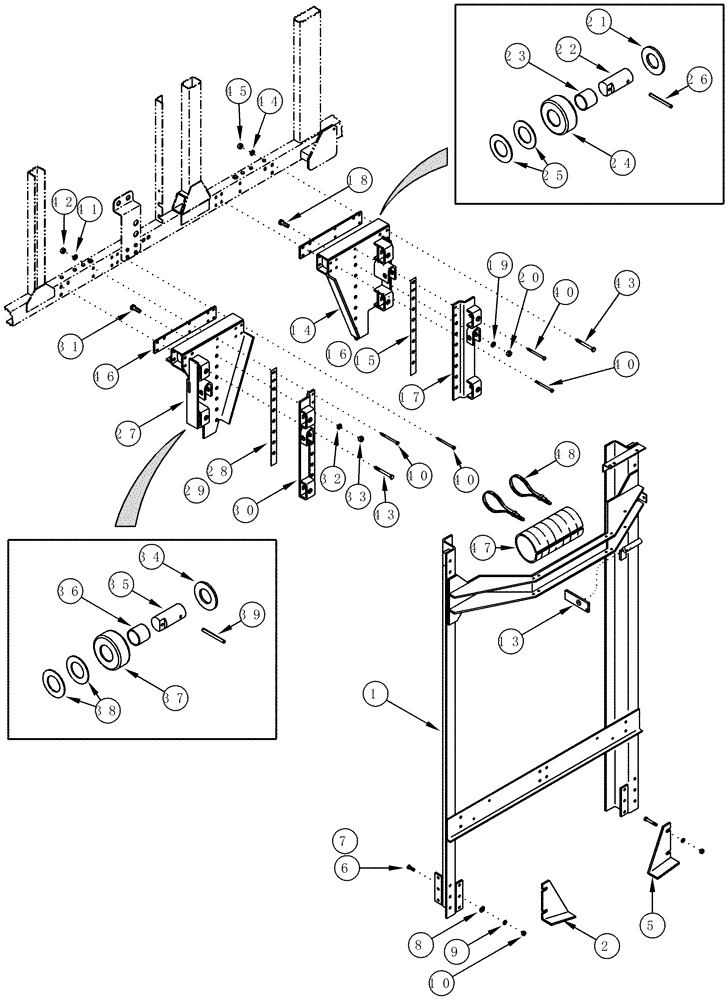

Запчасти Case IH CPX620 (09D-20) - BASKET, LIFT - FRONT (16) - BASKET

1

1349869C5

FRAME

Mast, Front

1шт.

1

87730681

FRAME

Mast, Front, Start Year: 04-JAN-12

1шт.

2

1345223C1

DEFLECTOR

Front Corner, Left Hand

1шт.

5

1345224C1

DEFLECTOR

Front Corner, Right Hand

1шт.

6

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

12шт.

7

426-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

4шт.

8

496-21053

WASHER,17/32" x 1 1/16" x .134"

16шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

16шт.

10

429-108

NUT,1/2"-13, G8

16шт.

13

1270025C2

LARGE PLATE

PLATE, LARGE Basket Lock

1шт.

See Figure 09D-22

1шт.

379058A3

ROLLER ASSY.

Left Hand, Inc. 14 - 26

1шт.

379056A3

SUPPORT

Left Hand, Inc. 14, 21 - 26

1шт.

248324A1

SUPPORT ASSY.

Left Hand, Inc. 17, 21 - 26

1шт.

14

379054A3

SUPPORT

1шт.

15

1266357C1

SHIM

1/32 in

2шт.

16

1266358C1

SHIM

1/16 in

2шт.

17

248322A1

SUPPORT ASSY.

1шт.

18

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

7шт.

19

492-11062

BEARING WASHER,5/8"

7шт.

20

429-1010

NUT,5/8"-11, G8

7шт.

21

495-11106

WASHER,1", SAE

3шт.

22

1260150C2

SHAFT

3шт.

23

1270038C1

BUSHING,25.44mm ID x 28.64mm OD x 25.15mm L

3шт.

24

1260135C1

ROLL

3шт.

25

495-81191

WASHER,1 5/32" x 2" x .060"

1-5/32 x 2 x 3/64

6шт.

26

38-11232

SPLIT PIN/SAFETY PIN,3/16" x 2", Slotted

3/16" x 2", Slotted

3шт.

379057A3

ROLLER ASSY.

Right Hand, Inc. 27 - 39

1шт.

379055A3

SUPPORT

Right Hand, Inc. 27, 34 - 39

1шт.

248325A1

SUPPORT ASSY.

Roller Carriage, Right Hand, Inc. 30, 34 - 39

1шт.

27

379053A3

SUPPORT

1шт.

28

1266357C1

SHIM

1/32 in

2шт.

29

1266358C1

SHIM

1/16 in

2шт.

30

248323A1

SUPPORT

1шт.

31

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

5/8 x 2; 8

7шт.

32

492-11062

BEARING WASHER,5/8"

7шт.

33

429-1010

NUT,5/8"-11, G8

7шт.

34

495-11106

WASHER,1", SAE

(1-1/16 x 2 x 1/8")

3шт.

35

1260150C2

SHAFT

3шт.

36

1270038C1

BUSHING,25.44mm ID x 28.64mm OD x 25.15mm L

3шт.

37

1260135C1

ROLL

3шт.

38

495-81191

WASHER,1 5/32" x 2" x .060"

1-5/32 x 2 x 3/64

6шт.

39

38-11232

SPLIT PIN/SAFETY PIN,3/16" x 2", Slotted

3/16" x 2", Slotted

3шт.

40

426-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

3/8 x 4-1/2; 8

8шт.

40

426-680

BOLT,Hex, 3/8" - 16 x 5", Gr 8

3/8 x 5; 8

4шт.

41

492-11038

LOCK WASHER,3/8"

12шт.

42

429-106

NUT,3/8"-16, G8

3/8; 8

12шт.

43

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

6шт.

44

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

45

429-108

NUT,1/2"-13, G8

1/2; 8

6шт.

46

313504A1

LARGE PLATE

PLATE, LARGE Filler

2шт.

47

231837A1

HOSE

5 Inch Plastic

1шт.

48

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP

2шт.
