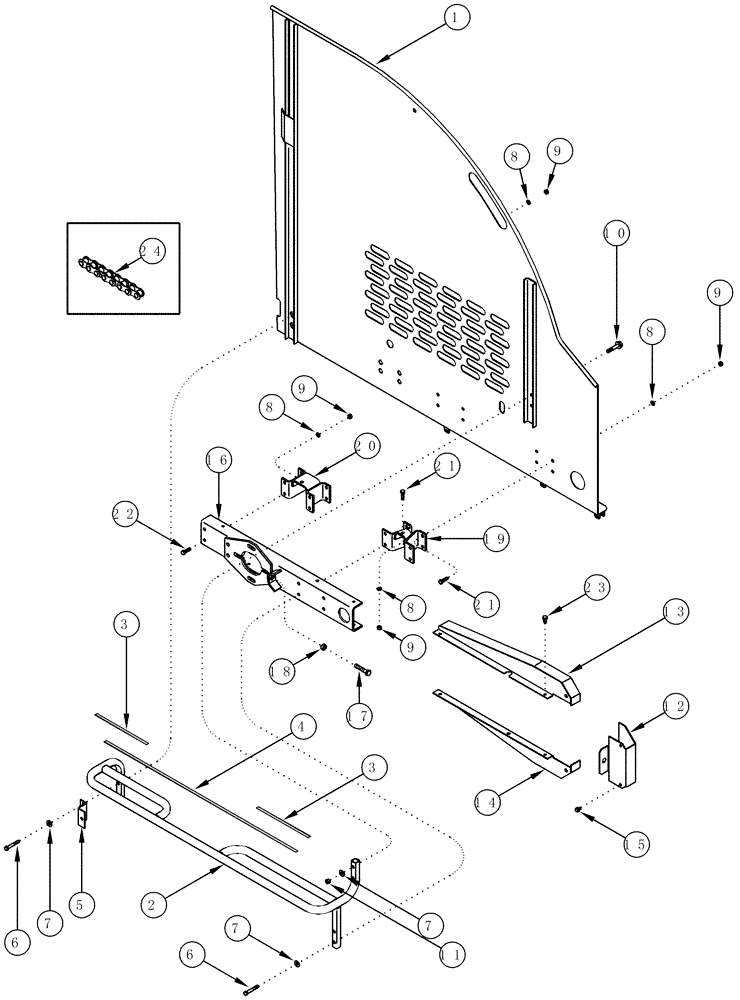

Запчасти Case IH CPX620 (09D-17) - BASKET DOOR - STEP, DRIVE MOTOR SUPPORT AND COVERS (16) - BASKET

1

REF

INSTRUCTION

Shield, Basket Door Side, Front, Shown

1шт.

See Figure 09D-16

1шт.

2

450603A1

STEP

Basket Floor, Inc. 3, 4

1шт.

3

405767A1

PAD

Non-Skid

2шт.

4

405777A1

PAD

Non-Skid

1шт.

5

335724A1

SUPPORT

Conveyor Hose

1шт.

6

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

7

495-21044

WASHER,3/8"

6шт.

8

492-11038

LOCK WASHER,3/8"

14шт.

9

425-106

NUT,3/8"-16, Cl 5

14шт.

10

477-73832

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 2"

2шт.

11

231-4146

NUT,3/8"-16, GB

2шт.

12

450481A2

SHEET

Unloader Chain Shield

1шт.

13

450491A1

COVER

1шт.

14

450492A2

COVER

1шт.

15

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

16

435610A2

CHANNEL

Unloader Drive Support

1шт.

17

113-531

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5, Full Thd

1шт.

18

425-108

NUT,1/2" - 13, Gr 5

1шт.

19

450444A1

BRACKET

Drive Support

1шт.

20

435612A1

BRACKET

Drive Support

1шт.

21

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

16шт.

23

276-14912

SELF-TAP SCREW,Hex Hd, 3/8" x 3/4"

4шт.

24

141492A2

CHAIN (AG),60 HZ, 72 Links x 19.05mm = 1371.6mm

Conveyor Drive Motor, Type 60, Inc. 25

1шт.

25

141493A2

LINK,19.05mm Pitch

1шт.
