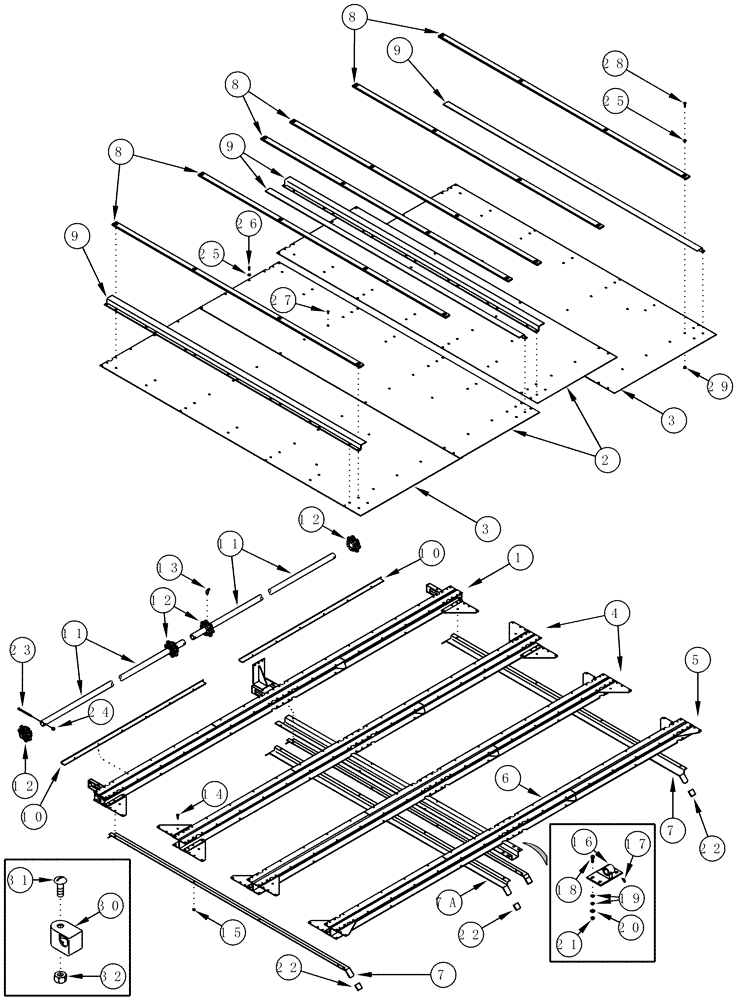

Запчасти Case IH CPX620 (09D-14) - BASKET, FLOOR (16) - BASKET

1

445150A2

STRUT

Basket Floor, Right Hand

1шт.

2

314887A2

SHEET

Basket Floor, Inner

2шт.

3

314888A4

SHEET

Basket Floor, Outer

2шт.

4

445149A2

STRUT

Basket Floor, Center

2шт.

5

445148A2

STRUT

Basket Floor, Left Hand

1шт.

6

447962A1

SUPPORT

1шт.

7

1339112C1

ANGLE

Basket Floor Chain

2шт.

7a

1339113C1

ANGLE

Basket Floor Chain

2шт.

8

314632A2

SLIDE

Basket Floor Slats

6шт.

9

251287A1

ANGLE

Guide

4шт.

10

87447083

SHEET ASSY.

Basket Floor Chain

2шт.

11

249814A1

PIPE ASSY.

Idler Adjustment, Conveyor

2шт.

12

1270109C1

SPROCKET ASSY.

7T

4шт.

13

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

14

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

48шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

48шт.

16

448602A1

PIVOT

1шт.

17

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

1шт.

18

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

4шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

8шт.

20

495-21044

WASHER,3/8"

4шт.

21

231-5146

FLANGE NUT,3/8"-16

4шт.

22

277514A1

GRIP

4шт.

23

1262728C2

BOLT,Hex, 3/8" x 6"

3/8 X 6

4шт.

24

231-1446

NUT,3/8" - 16, Gr 5

4шт.

25

495-81107

WASHER,.281" x 7/8" x .060"

34шт.

26

375677A1

RIVET

1/4 Protruding

10шт.

27

375676A1

RIVET,Pop, 6.42mm OD x 24.64mm L

1/4 Truss

42шт.

29

231-1444

NUT,1/4"-20, GB

24шт.

30

196447C1

CLAMP

3шт.

31

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

3шт.

32

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

28

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

24шт.
