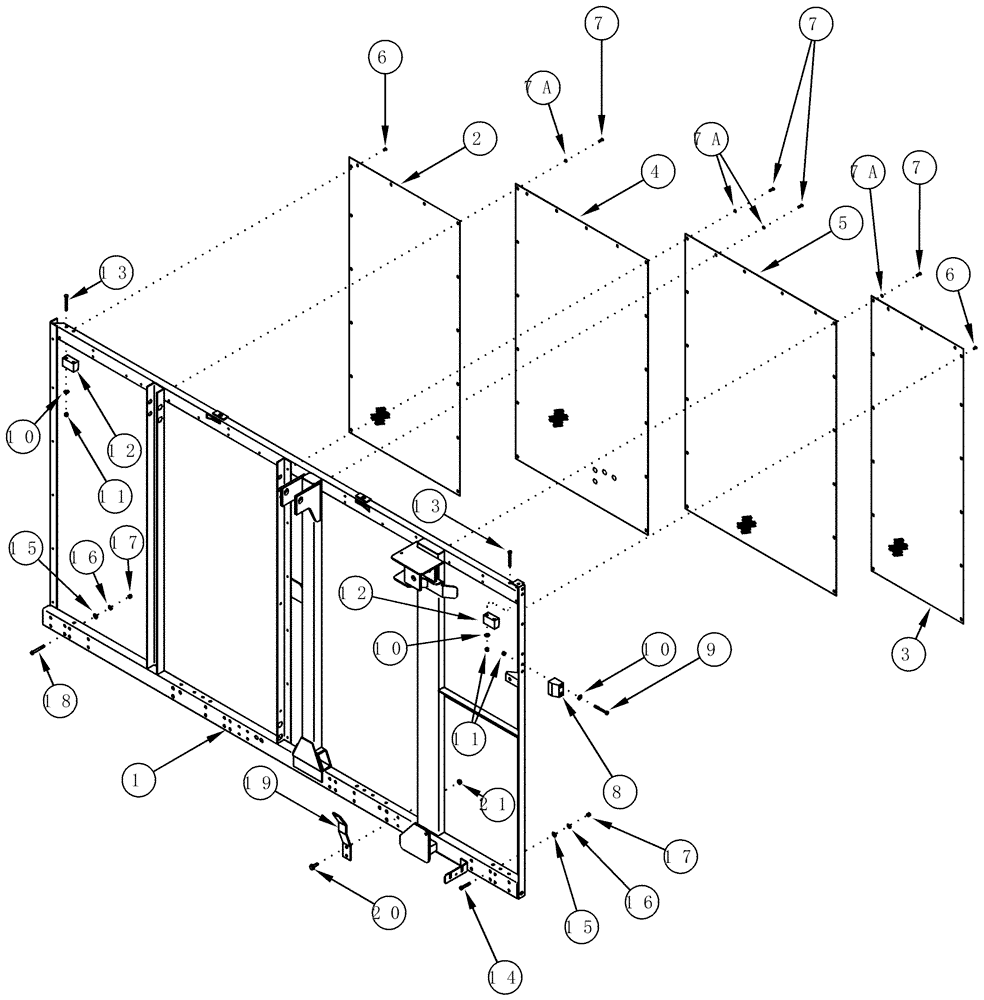

Запчасти Case IH CPX620 (09D-10) - BASKET, FRONT WALL (16) - BASKET

1

292042A5

BASKET ASSY

WALL Front, Welded

1шт.

2

299268A2

SHEET

Right Hand Front

1шт.

3

298711A3

SHEET

Left Hand Front

1шт.

4

86990562

SHEET

Right Hand Front Center

1шт.

4

84494241

SHEET

Right Hand Front Center, Start Year: 04-JAN-12

1шт.

5

86990561

SHEET

Left Hand Front Center

1шт.

5

84494240

SHEET

Left Hand Front Center, Start Year: 04-JAN-12

1шт.

6

375676A1

RIVET,Pop, 6.42mm OD x 24.64mm L

1/4 x 3/8

32шт.

7

375677A1

RIVET

1/4 x 5/8

11шт.

7a

495-81107

WASHER,.281" x 7/8" x .060"

Used With 7

11шт.

8

328227A1

GUIDE

Basket Door

1шт.

9

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

10

495-21044

WASHER,3/8"

6шт.

11

231-1446

NUT,3/8" - 16, Gr 5

6шт.

12

222680A2

GUIDE

Basket Door, Upper Inner

2шт.

13

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

14

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

15

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

12шт.

16

492-11038

LOCK WASHER,3/8"

12шт.

17

425-106

NUT,3/8"-16, Cl 5

12шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

19

87407622

GUIDE

Basket Door Shield

1шт.

20

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

21

231-5146

FLANGE NUT,3/8"-16

2шт.

22

495-81163

WASHER,17/32" x 1 1/2" x .120"

2шт.

23

409-7824

BOLT,Hex Flg, 1/2" - 13 x 1 1/2", Spcl

2шт.

24

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

26

231-1448

NUT,1/2"-13, GB

8шт.

27

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Harness, Not Illustrated

18шт.

28

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

Not Illustrated

12шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Not Illustrated

13шт.
