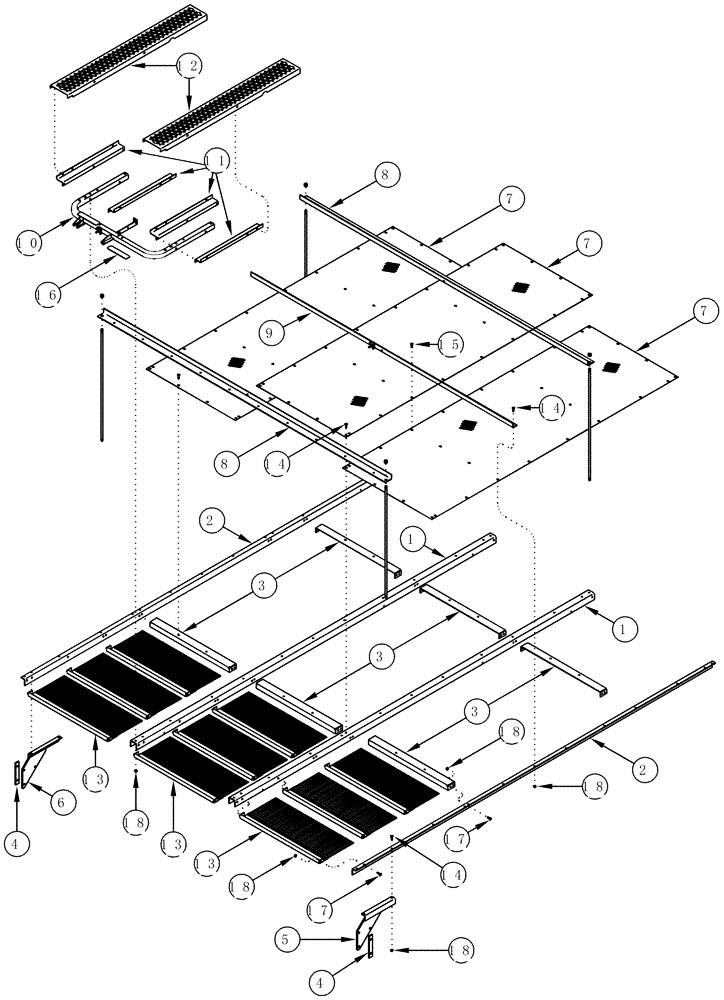

Запчасти Case IH CPX620 (09D-06) - LID, BASKET - TOP (16) - BASKET

1

248858A2

CHANNEL

Basket Grate Support

2шт.

2

248851A2

ANGLE

Basket Grate Support

2шт.

3

231111A2

ANGLE BAR

6шт.

4

197055A1

BAR

Basket Cylinder Mount

2шт.

5

228248A3

ANGLE

Basket Cylinder Mount, Left Hand

1шт.

6

239472A2

ANGLE

Basket Cylinder Mount, Right Hand

1шт.

7

435709A2

SHEET

Basket Lid Top

3шт.

7

84494348

SHEET

Basket Lid Top, Start Year: 04-JAN-12

3шт.

8

280398A2

ANGLE

Front and Rear Tie

2шт.

9

362663A2

SUPPORT

Lid Handrail

1шт.

10

362664A4

TUBE,820.1 mm Length

Handrail

1шт.

11

220672A2

ANGLE

Basket Deck Walkway

4шт.

12

435288A2

STEP

Basket Lid, Serial Range: -Y6T011501

2шт.

12

87343265

STEP

Basket Lid, Start Serial: Y6T011501

2шт.

13

325244A1

DEFLECTOR

Basket Cover

9шт.

14

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

1шт.

15

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

1шт.

16

D55216

PAD,2" x 9"

2шт.

18

231-5146

FLANGE NUT,3/8"-16

1шт.

17

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.
