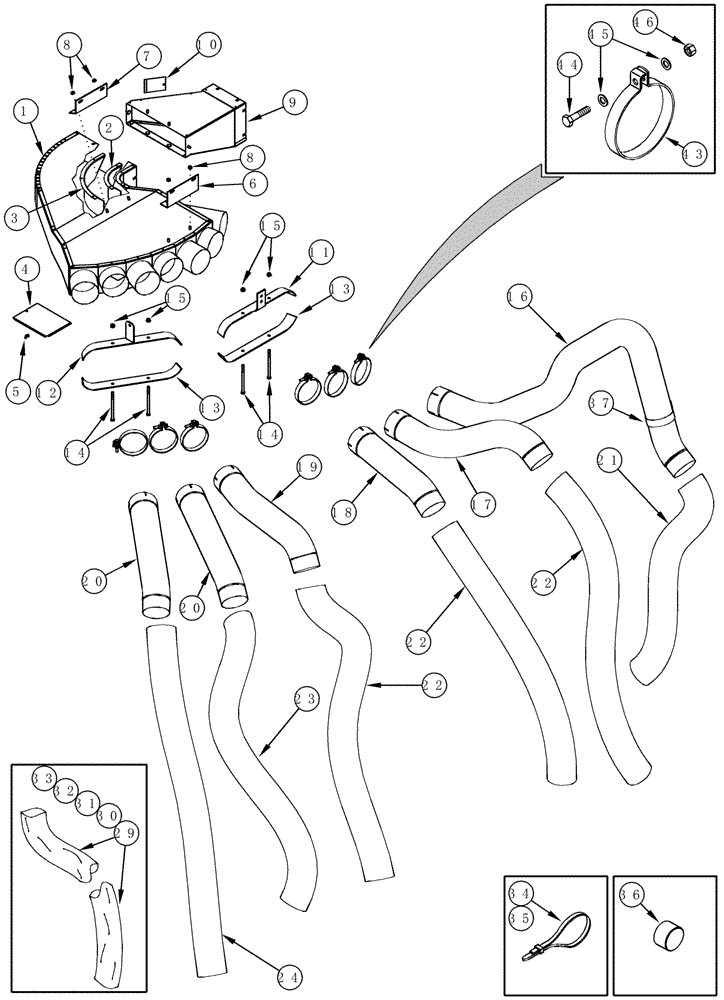

Запчасти Case IH CPX620 (09C-23) - AIR DUCTS AND HOSES - RIGHT SIDE (15) - HANDLING SYSTEM

1

198927A4

DUCT

Air Plenum, Right Hand

1шт.

2

139712A1

DEFLECTOR

Inner

1шт.

3

139713A1

DEFLECTOR

Outer

1шт.

4

412352A1

COVER

Duct Access

2шт.

5

129-409

WING NUT,1/4"-20

4шт.

6

1988854C2

ANGLE

2шт.

7

1990442C1

ANGLE

Rear Support

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

18шт.

9

1270084C1

DUCT

Transition

1шт.

10

1270220C1

COVER

Access

2шт.

11

326512A1

STRAP

Plenum Tube, Upper

2шт.

12

411086A2

STRAP

Air Plenum, Support

1шт.

13

326511A1

STRAP

Plenum Tube

2шт.

14

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

4шт.

15

231-1446

NUT,3/8" - 16, Gr 5

4шт.

16

1988747C1

TUBE

No. 3 Front, 6 Row Narrow; 4 Rear, 6 Row Wide

1шт.

16

1988749C1

PIPE

No. 4 Rear, 6 Row Narrow

1шт.

17

1988874C1

TUBE

No. 4 Front

1шт.

18

1988872C1

TUBE

No. 5 Rear

1шт.

19

1988876C1

TUBE,127.9 mm ID, 124.6 mm OD

No. 5 Front

1шт.

20

248330A1

TUBE,124.6 mm OD, 792 mm Length

No. 6 Rear, No. 6 Front

2шт.

Not Used on 4 Row Wide Configuration

1шт.

21

1338078C3

AIR HOSE,127.00 mm ID x 889.00 mm

No. 4 Rear, 6 Row Wide; No. 4 Rear, 6 Row Narrow

1шт.

Cut From 345093A1

1шт.

22

1984191C1

AIR HOSE

1473 mm (58 in), No. 4 Front, No. 5 Rear, No. 5 Front, 6 Row Wide; No. 2 Rear, No. 4 Front, No. 5 Front, 6 Row Narrow

3шт.

Cut From 345093A1

1шт.

23

417700A1

AIR HOSE

1549 mm (61 in), No. 6 Rear, 6 Row Wide

1шт.

Cut From 345093A1

1шт.

24

417701A1

AIR HOSE

1854 mm (73 in), No. 6 Front

1шт.

Cut From 345093A1

1шт.

29

1984192C1

AIR HOSE

1041 mm (41 in), No. 3 Front, 6 Row Narrow

1шт.

29

284897A1

HOSE PROTECTION

1219 mm (48 in), No. 5 Front, No. 6 Front, 6 Row Wide

1шт.

30

284896A1

HOSE PROTECTION

1067 mm (42 in), No. 5 Rear, 6 Row Wide; No. 5 Rear, No. 5 Front, 6 Row Narrow

1шт.

31

284895A1

HOSE PROTECTION

661 mm (26 in), No. 4 Rear, 6 Row Wide and Narrow

1шт.

32

298854A1

HOSE PROTECTION

1321 mm (52 in), No. 4 Front, 6 Row Wide

1шт.

33

254021A2

HOSE PROTECTION

975 mm (38-3/8 in), No. 6 Rear, 6 Row Wide

1шт.

34

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP 711 mm (28 in)

1шт.

35

1546052C1

STRAP

718 mm (28-1/4 in)

1шт.

36

175231A1

CAP

4-15/16 ID, Plenum Tube, Discharge, 6 Row Wide

1шт.

36

353-75

PLUG,Cap, 5.200" OD

2шт.

37

1546033C1

CLAMP,127mm ID, 10.3mm Bolt Hole, P Type

1шт.

43

650988C1

CLAMP,130mm

Air Supply Duct

8шт.

44

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

8шт.

45

495-21044

WASHER,3/8"

8шт.

46

131-822

NUT,3/8"-16

8шт.

495-11034

WASHER,5/16", SAE

Not Illustrated

1шт.

492-11031

LOCK WASHER,5/16"

1шт.

425-105

NUT,5/16"-18, G5

1шт.

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

231-5146

FLANGE NUT,3/8"-16

1шт.

214-3188

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm

1шт.

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

1шт.

231-4116

NUT,3/8"-16, GB

1шт.
