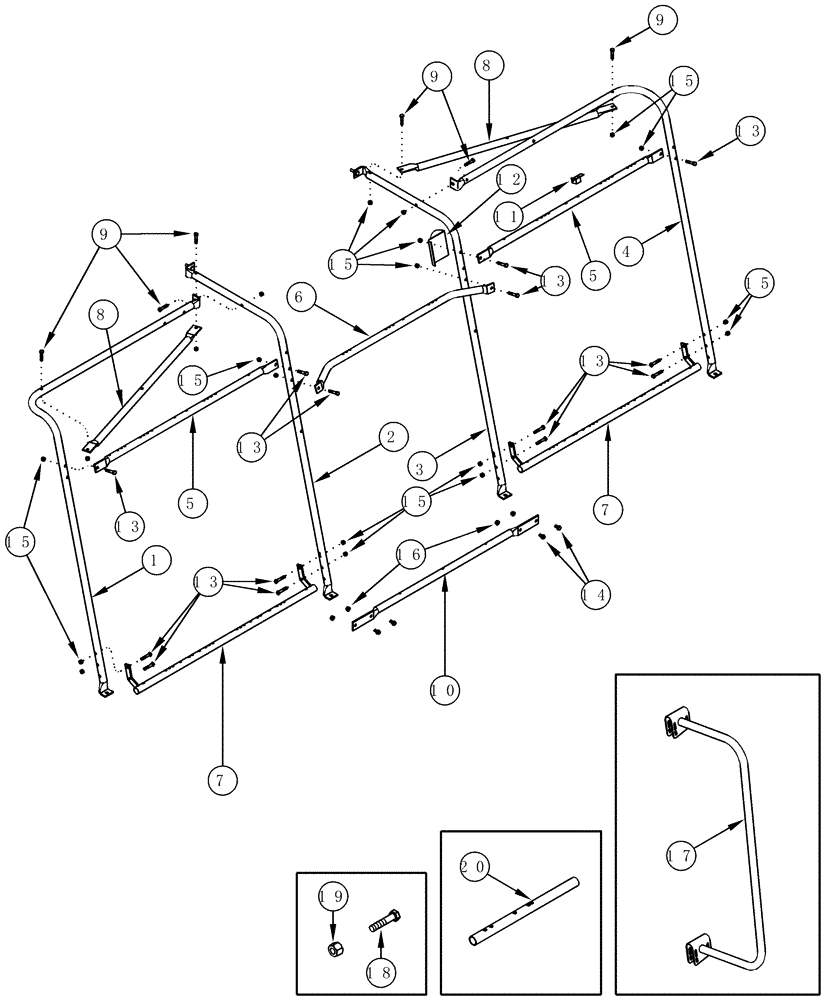

Запчасти Case IH CPX620 (09C-22) - CONVEYOR CHUTE SUPPORTS (15) - HANDLING SYSTEM

1

1546357C5

SUPPORT TUBE,1335, 552 mm Length

Support, Right Hand

1шт.

2

124362A3

TUBE

Support, Right Hand

1шт.

3

124361A2

TUBE

Support, Left Hand

1шт.

4

177135A3

TUBE

Support, Left Hand

1шт.

5

1546361C4

TUBE,31.75 mm OD, 1135 mm Length

2шт.

6

1546355C2

TUBE,31.75 mm OD, 1100, 92 mm Length

1шт.

7

119618A5

SUPPORT

Outer, Lower

2шт.

8

1546356C1

TUBE,31.75 mm OD, 1066 mm Length

Brace

2шт.

9

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

6шт.

10

1984388C1

SUPPORT TUBE,1180 mm Length

1шт.

11

410007A1

ANGLE

1шт.

12

410008A1

ANGLE

1шт.

13

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

20шт.

14

409-7612

BOLT,3/8"-16 x 1.09" OAL

16шт.

15

231-4116

NUT,3/8"-16, GB

22шт.

16

231-5146

FLANGE NUT,3/8"-16

20шт.

17

235701A2

GRAB RAIL

Attaches To No. 5

1шт.

18

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

5шт.

19

231-4115

NUT,5/16"-18, GB

5шт.

20

120376A2

TUBE,25.4 mm OD, 375 mm Length

375 mm (14-3/4 IN), Extension, Skip Row

1-2шт.

2 Used on 6 Row Wide; 1 Used on 6 Row Narrow

1шт.
