Запчасти Case IH CPX620 (09C-20) - CONVEYOR CHUTES - DUAL CENTER, 6 ROW NARROW NO. 2F, 3R, 3F, 4R (15) - HANDLING SYSTEM

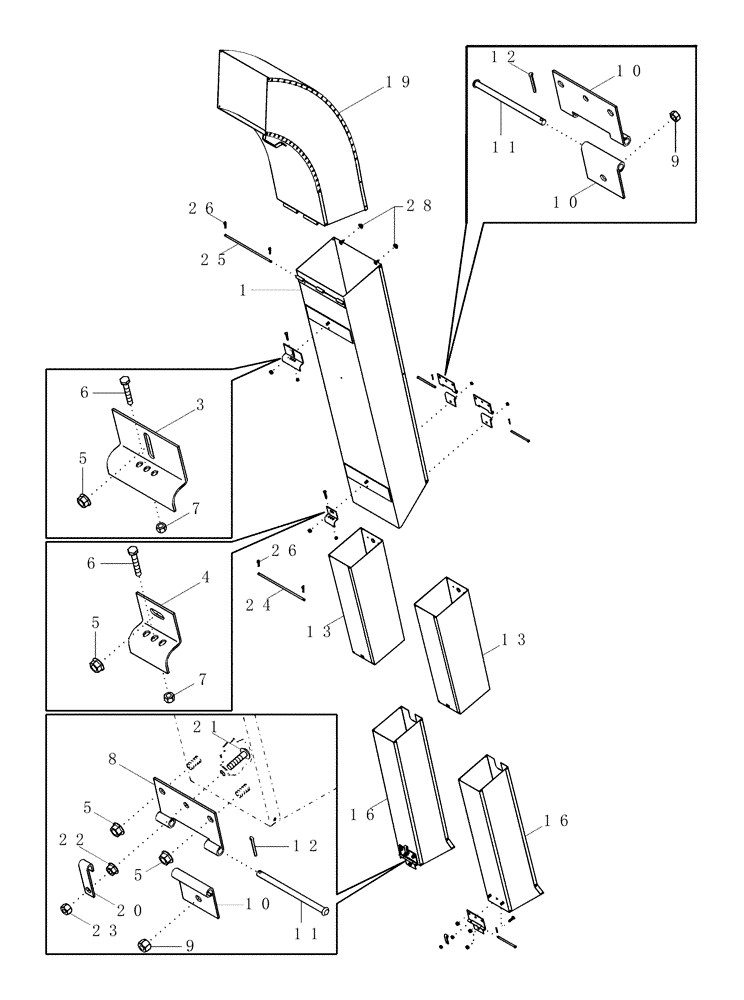

Схема запчастей Case IH CPX620 - (09C-20) - CONVEYOR CHUTES - DUAL CENTER, 6 ROW NARROW NO. 2F, 3R, 3F, 4R (15) - HANDLING SYSTEM
9
5
19
22
6
10
5
8
23
4
13
13
6
10
26
26
24
21
11
5
7
11
28
5
9
16
12
3
7
12
10
20
25
1
16

Артикул

Название

Примечание

Количество

1

87430730

CHUTE

Double, Upper

2шт.

3

127588A1

CLAMP

2шт.

4

127589A1

CLAMP

Lower

2шт.

5

231-5146

FLANGE NUT,3/8"-16

12шт.

6

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

7

230-4114

NUT,1/4"-20, GA

2шт.

8

1349843C1

HINGE

Female

4шт.

9

231-4116

NUT,3/8"-16, GB

4шт.

10

1270014C1

HINGE

Male

4шт.

11

1349860C1

PIN,7.94mm OD x 129mm L

4шт.

12

432-816

COTTER PIN,1/8" x 1"

4шт.

13

1349938C1

CHUTE

Female, Center

4шт.

16

1349934C3

CHUTE

Male, Lower, Center

4шт.

17

425-106

NUT,3/8"-16, Cl 5

Not Illustrated

1шт.

18

492-11038

LOCK WASHER,3/8"

Not Illustrated

1шт.

19

242378A2

HOOD

Outer, Double

2шт.

20

1984343C1

HOOK

Air Pipe

4шт.

21

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

4шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

23

231-4115

NUT,5/16"-18, GB

4шт.

24

233320A2

PIN,7.94mm OD x 194.5mm L

Single Conveyer Chutes

2шт.

25

233321A2

PIN,7.94mm OD x 366.5mm L

Double Conveyer Chutes

2шт.

26

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

4шт.

27

195-81027

WASHER,0.38" ID x 1.12" OD x 0.07" Thk

2 Used Per Hood, Not Illustrated

1шт.

28

360662A1

NUT

5/16 Special, Conveyor Pipe, Hood

4шт.

29

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

Not Illustrated

10шт.

30

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

Not Illustrated

4шт.

31

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

Not Illustrated

14шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Not Illustrated

14шт.

Выбрано товаров: 29
