Запчасти Case IH CPX620 (09C-19) - CONVEYOR CHUTES - DUAL OUTER, 6 ROW NARROW NO. 1, 5, 6 (15) - HANDLING SYSTEM

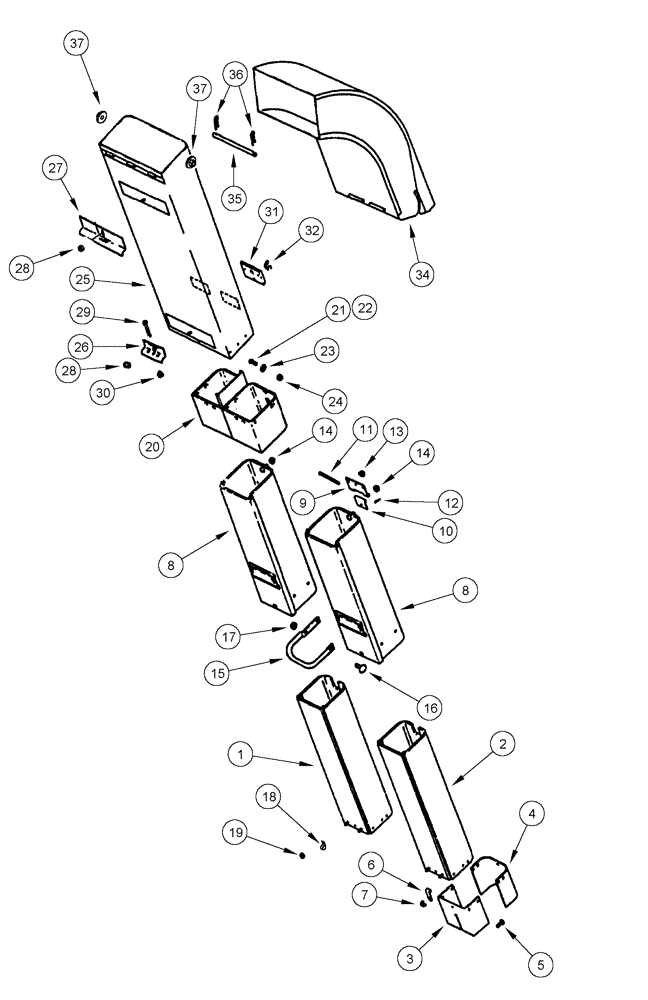

Схема запчастей Case IH CPX620 - (09C-19) - CONVEYOR CHUTES - DUAL OUTER, 6 ROW NARROW NO. 1, 5, 6 (15) - HANDLING SYSTEM
23
30
21
22
6
2
10
15
32
1
14
28
37
4
35
5
36
37
31
13
20
25
26
16
14
9
24
28
19
3
34
8
29
8
7
17
11
27
18
12

Артикул

Название

Примечание

Количество

1

226659A1

CHUTE

Male, Lower, Outer, 1R, 6F

2шт.

2

1349803C1

CHUTE

Male, Lower, Outer, 1F, 2F, 2R, 6R

4шт.

3

131427A2

SHEET

Polyurethane

6шт.

4

131428A2

SHEET

Polyurethane

6шт.

5

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

6шт.

6

1984343C1

HOOK

Air Pipe

6шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

48шт.

8

1984139C3

CHUTE

Female, Outer

6шт.

9

1349843C1

HINGE

Female

12шт.

10

1270014C1

HINGE

Male

12шт.

11

1349860C1

PIN,7.94mm OD x 129mm L

12шт.

12

432-816

COTTER PIN,1/8" x 1"

12шт.

13

231-4116

NUT,3/8"-16, GB

6шт.

14

231-5146

FLANGE NUT,3/8"-16

12шт.

15

196609A1

BRACKET

Air Hose

3шт.

16

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

9шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

9шт.

18

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

6шт.

19

231-4115

NUT,5/16"-18, GB

6шт.

20

1349872C3

DIVIDER

Double Chute

3шт.

21

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

60шт.

22

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

24шт.

23

495-11034

WASHER,5/16", SAE

28шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

42шт.

25

87430727

CHUTE

Double, Upper, No. 1, 2, 6

3шт.

26

127589A1

CLAMP

Lower

3шт.

27

127588A1

CLAMP

3шт.

28

231-5146

FLANGE NUT,3/8"-16

18шт.

29

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

30

230-4114

NUT,1/4"-20, GA

4шт.

34

242378A2

HOOD

Outer, Double

3шт.

35

233321A2

PIN,7.94mm OD x 366.5mm L

3шт.

36

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

6шт.

37

360662A1

NUT

5/16 Special, Conveyor Pipe, Hood

6шт.

Выбрано товаров: 34
