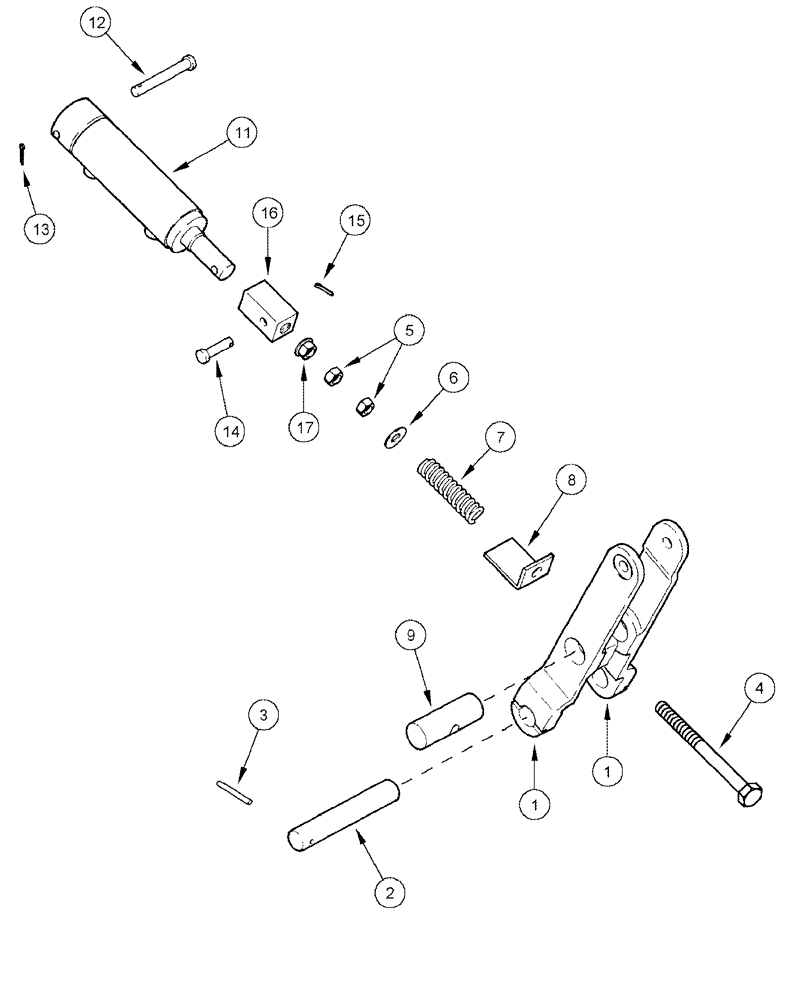

Запчасти Case IH CPX620 (09C-12) - REAR FAN PULLEY LINKAGE (15) - HANDLING SYSTEM

1

1990156C1

ARM

Idler Pulley

1шт.

2

1990151C1

SHAFT,25.4mm OD x 135mm L

Idler Pivot

1шт.

3

438-11232

LOCK PIN,3/16" x 2", Slotted

1шт.

4

113-2671

BOLT,Hex, 1/2" - 13 x 7", Gr 8

1шт.

5

425-108

NUT,1/2" - 13, Gr 5

2шт.

6

495-11053

WASHER,1/2", SAE

1шт.

7

427075A1

SPRING

Idler

1шт.

8

1990058C1

ANGLE

1шт.

9

1990152C1

PIN,31.75mm OD x 90mm L

Pivot

1шт.

11

133405C92

CYLINDER

51 ID x 63 mm strk, Fan Clutch, Serial Range: -Y6T011706

1шт.

See Figure 08-44

1шт.

11

87337239R

REMAN-HYD CYLINDER

CPX620 CASE IH COTTON PICKER, 51 ID x 63 mm strk., Fan Clutch, Serial Range: -Y6T011706 (5/05-8/06), Reman for New PN 133405C92

1шт.

11

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

11

87391858

CYLINDER

Fan Clutch, Start Serial: Y6T011706

1шт.

See Figure 08-45

1шт.

11

87391858C

CORE-HYD CYLINDER

Return Number, CYLINDER CLUTCH

1шт.

11

87449896R

REMAN-HYD CYLINDER

Remanufactured Clutch Cylinder

1шт.

11

87449896C

CORE-HYD CYLINDER

Return Number, CYLINDER CLUTCH

1шт.

12

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

1шт.

13

432-816

COTTER PIN,1/8" x 1"

1шт.

14

427-6156

CLEVIS PIN,9.53mm OD x 39.67mm L

1шт.

15

432-616

COTTER PIN,3/32" x 1"

1шт.

16

138184A1

BLOCK

Idler

1шт.

17

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.
