Запчасти Case IH CPX620 (02-15) - TURBOCHARGER SYSTEM - ASN Y6T011701 (01) - ENGINE

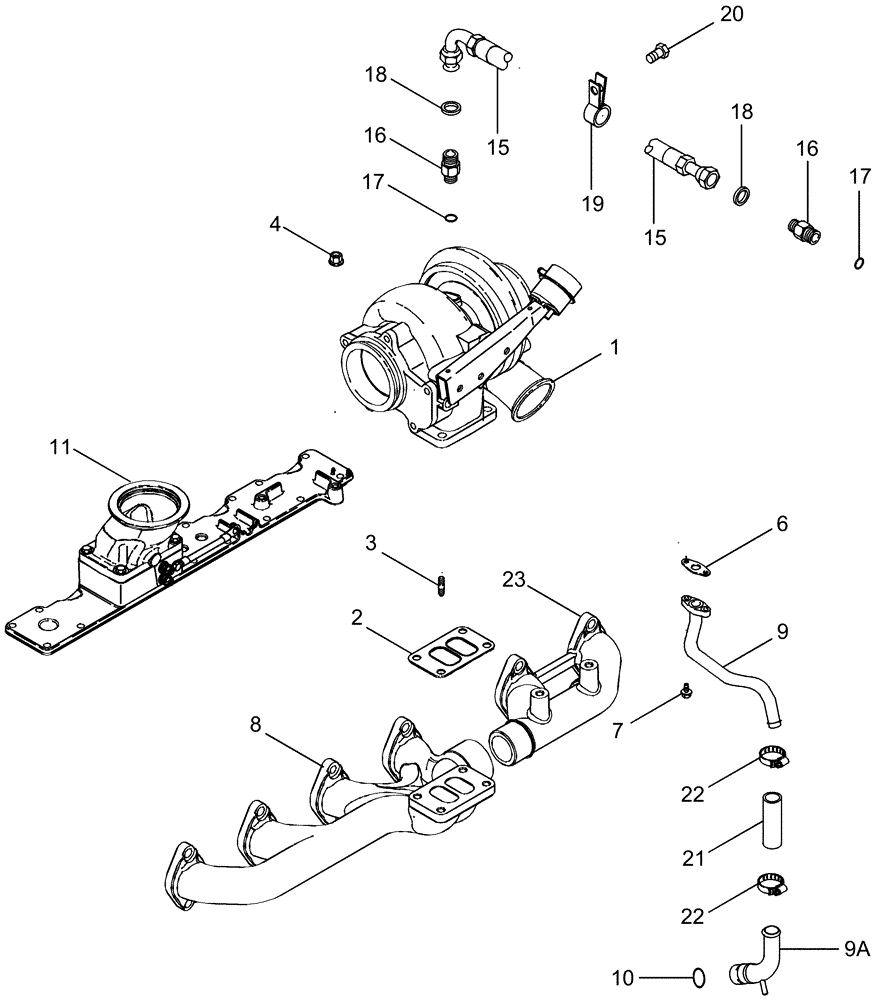

Схема запчастей Case IH CPX620 - (02-15) - TURBOCHARGER SYSTEM - ASN Y6T011701 (01) - ENGINE
3
8
15
22
16
20
9a
18
21
16
22
18
19
6
15
2
23
17
11
9
17
10
4
1
7

Артикул

Название

Примечание

Количество

1

87355317

TURBOCHARGER

1шт.

1

87355317R

REMAN-TURBOCHARGER

Reman for New PN 87355317

1шт.

1

87355317C

CORE-TURBOCHARGER

Return Number

1шт.

1

84269951R

REMAN-TURBOCHARGER

Reman For New PN 87355317

1шт.

1

84269951C

CORE-TURBOCHARGER

Return Number

1шт.

2

J901356

GASKET,0.5mm Thk

Turbo Mount

1шт.

3

J818823

STUD

M10 x 1.5

4шт.

4

J818824

FLANGE NUT

M10

4шт.

6

J937706

GASKET,0.79mm Thk

Oil Drain

1шт.

7

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

8

87344862

EXHAUST MANIFOLD

1шт.

9

86993028

TUBE,0.875" OD

Turbo Drain at Turbo

1шт.

9a

J945108

TUBE

Turbo Drain

1шт.

10

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

11

REF

INSTRUCTION

COVER Intake

1шт.

15

87345099

FLEXIBLE HOSE,9.53mm ID x 385mm L, SAE 100R14

533 mm (21 in)

1шт.

16

J922789

HYD CONNECTOR

Inc. 17

2шт.

17

J678603

O-RING,2.2mm Thk x 9.3mm ID

1шт.

19

87434675

CLAMP,10.16mm ID, 10.41mm Bolt Hole, P Type

1шт.

20

615-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

21

J286499

HOSE

76 mm (3"), Turbo Drain Tube

1шт.

22

214-1512

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm, W/ Liner

2шт.

23

87344861

EXHAUST MANIFOLD

1шт.

Выбрано товаров: 23
