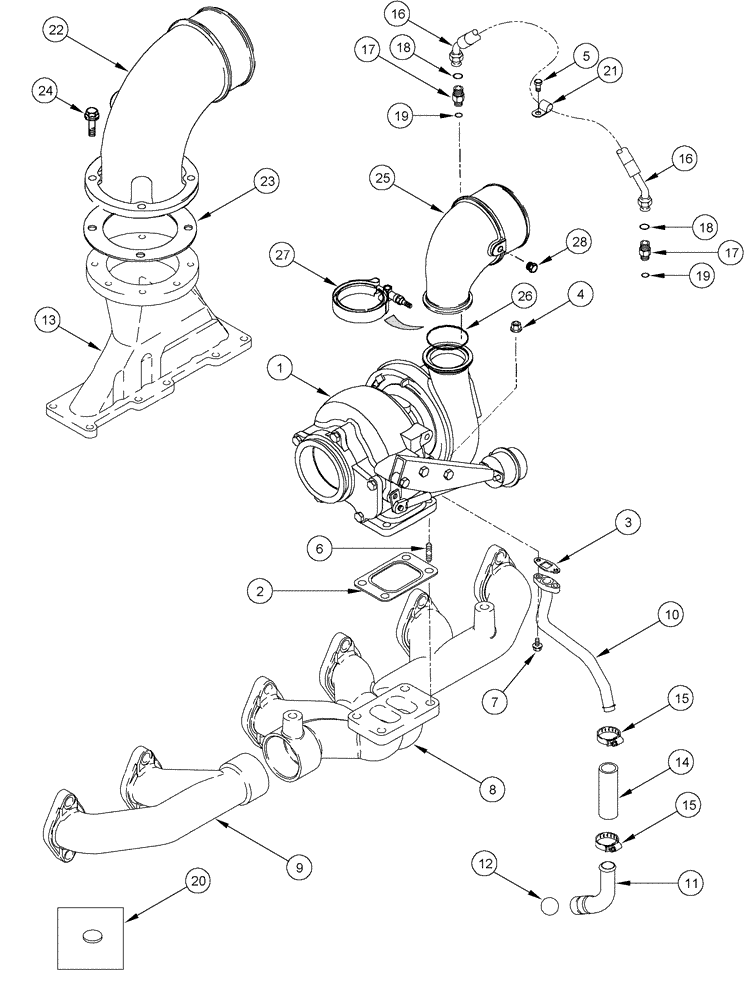

Запчасти Case IH CPX620 (02-14) - TURBOCHARGER SYSTEM - BSN Y6T011701 (01) - ENGINE

J800406

TURBOCHARGER

6TAA-8304, Inc. 1, 2, 3

1шт.

84410510R

REMAN-TURBOCHARGER

CPX620 BSN Y6T011701 (5/05-8/06), Reman for New PN J800406

1шт.

84410510C

CORE-TURBOCHARGER

Return Number

1шт.

2

J919369

GASKET,0.5mm Thk

Mounting, Turbocharger

1шт.

3

J937706

GASKET,0.79mm Thk

Oil Drain

1шт.

4

J818824

FLANGE NUT

M10

4шт.

5

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

6

J818823

STUD

M10 x 40

4шт.

7

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

8

J943841

EXHAUST MANIFOLD

Exhaust

1шт.

See Figure 02-12

1шт.

9

J937477

MANIFOLD

Exhaust

1шт.

See Figure 02-12

1шт.

10

J945108

TUBE

1шт.

11

J943819

TUBE

TUBE, Turbocharger Oil Drain

1шт.

12

86625099

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

13

J943613

AIR INTAKE

1шт.

See Figure 02-12

1шт.

14

J286499

HOSE

1шт.

15

214-1512

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm, W/ Liner

2шт.

16

J282159

FLEXIBLE HOSE

1шт.

17

J922789

HYD CONNECTOR

Inc. 18, 19

2шт.

18

J678603

O-RING,2.2mm Thk x 9.3mm ID

1шт.

19

313262A1

O-RING,0.07" Thk x 0.364" ID

(M9.2 ID x 1.7 Thk)

1шт.

20

J920706

PLUG

22 mm OD

1шт.

21

87434675

CLAMP,10.16mm ID, 10.41mm Bolt Hole, P Type

1/2 ID

1шт.

22

370140A1

ELBOW

Air Intake Manifold

1шт.

23

J917892

GASKET,0.79mm Thk

1шт.

24

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

4шт.

25

86998476

ELBOW

Turbocharger Adapter

1шт.

26

J883284

O-RING,0.07" Thk x 2.364" ID, -36

1шт.

27

J069053

CLAMP,66.54mm ID

1шт.

28

217-428

PLUG,Hex Soc, 1/8" - 27 NPTF

2шт.
