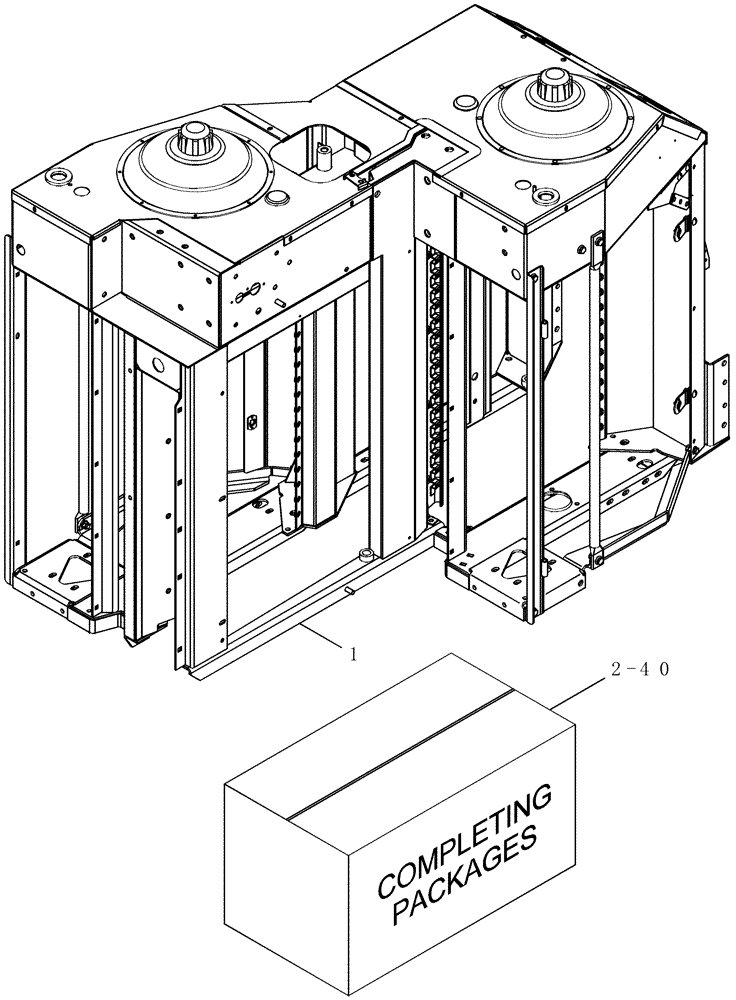

Запчасти Case IH CPX620 (09A-39) - DRUM SERVICE ASSEMBLIES / COMPLETING PACKAGES 6 ROW WIDE (13) - PICKING SYSTEM
№
Артикул
Название
Примечание
Количество
87426425
DRUM
Assembly, Service, Drum #1; Inc. 1 - 6, 8, 12, 13, 21, 22, 30, 32, 35
1шт.
87426426
DRUM
Assembly, Service, Drum #2; Inc. 1 - 5, 7, 9, 12, 15, 18, 23, 31, 34, 37
1шт.
87426427
DRUM
Assembly, Service, Drum #3; Inc. 1 - 6, 11, 16, 19, 24, 28, 30, 33, 37
1шт.
87426428
DRUM
Assembly, Service, Drum #4; Inc. 1 - 6, 10, 17, 20, 25, 28, 30, 33, 38
1шт.
87426429
DRUM
Assembly, Service, Drum #5; Inc. 1 - 5, 7, 10, 11, 15, 18, 26, 29, 31, 34, 39
1шт.
87426430
DRUM
Assembly, Service, Drum #6; Inc. 1 - 6, 9, 11, 14, 19, 27, 30, 33, 40
1шт.
87426431
DRUM
Assembly, High Yield, Service, Drum #1; Inc. 1 - 6, 8, 12,13, 21, 22, 30, 32, 35
1шт.
87426432
DRUM
Assembly, High Yield, Service, Drum #2; Inc. 1 - 5, 7, 9, 12, 15, 18, 23, 31, 34, 36
1шт.
87426433
DRUM
Assembly, High Yield, Service, Drum #3; Inc. 1 - 6, 11, 16, 19, 24, 28, 30, 33, 37
1шт.
87426434
DRUM
Assembly, High Yield, Service, Drum #4; Inc. 1 - 6, 10, 17, 20, 25, 28, 30, 33, 38
1шт.
87426435
DRUM
Assembly, High Yield, Service, Drum #5; Inc. 1 - 5, 7, 10, 11, 15, 18, 26, 29, 31, 34, 39
1шт.
87426436
DRUM
Assembly, High Yield, Service, Drum #6; Inc. 1 - 6, 9, 11, 14, 19, 27, 30, 33, 40
1шт.
1
NSS
NOT SOLD SEPARAT
Drum, Basic Service, With Covers and Harness
1шт.
2
87454849
PACKAGE
Rotor Doors
1шт.
See Figure 09A-37
1шт.
3
87454857
PACKAGE
Front Outlets
1шт.
See Figure 09C-02
1шт.
4
431245A1
PACKAGE
Front Nozzles
1шт.
See Figure 09C-01
1шт.
5
87454858
PACKAGE
Rear Outlets
1шт.
See Figure 09C-02
1шт.
6
431491A1
PACKAGE
Rear Nozzles
1шт.
See Figure 09C-02
1шт.
7
431473A1
PACKAGE
Rear Nozzles
1шт.
See Figure 09C-02
1шт.
8
431654A1
PACKAGE
Front Transition
1шт.
See Figure 09C-01
1шт.
9
431655A1
PACKAGE
Front Transition
1шт.
See Figure 09C-01
1шт.
10
431244A1
PACKAGE
Front Transition
1шт.
See Figure 09C-01
1шт.
11
431475A1
PACKAGE
Rear Transitions
1шт.
See Figure 09C-02
1шт.
12
431472A1
PACKAGE
Rear Transitions
1шт.
See Figure 09C-02
1шт.
13
431647A1
PACKAGE
Front Extension
1шт.
See Figure 09C-01
1шт.
14
431648A1
PACKAGE
Front Extension
1шт.
See Figure 09C-01
1шт.
15
431243A1
PACKAGE
Front Extension
1шт.
See Figure 09C-01
1шт.
16
431480A1
PACKAGE
Front Extension
1шт.
See Figure 09C-01
1шт.
17
431496A1
PACKAGE
Front Extension
1шт.
See Figure 09C-01
1шт.
18
431471A1
PACKAGE
Rear Extension
1шт.
See Figure 09C-02
1шт.
19
431481A1
PACKAGE
Rear Extension
1шт.
See Figure 09C-02
1шт.
20
431497A1
PACKAGE
Rear Extension
1шт.
See Figure 09C-02
1шт.
21
431651A1
PACKAGE
Rear Extension
1шт.
See Figure 09C-02
1шт.
22
431240A1
PACKAGE
Gearbox
1шт.
See Figure 09A-11
1шт.
23
431634A1
PACKAGE
Gearbox
1шт.
See Figure 09A-12
1шт.
24
431635A1
PACKAGE
Gearbox
1шт.
See Figure 09A-14
1шт.
25
431636A1
PACKAGE
Gearbox
1шт.
See Figure 09A-16
1шт.
26
431637A1
PACKAGE
Gearbox
1шт.
See Figure 09A-17
1шт.
27
431280A1
PACKAGE
Gearbox
1шт.
See Figure 09A-18
1шт.
28
433188A1
PACKAGE
Gearbox Completing
1шт.
See Figure 09A-16
1шт.
29
433186A1
PACKAGE
Gearbox Completing
1шт.
See Figure 09A-17
1шт.
30
414357A1
PACKAGE
Plant Lifter with Automatic Height Control
1шт.
See Figures 09A-27, 09A-28, 09A-30
1шт.
31
414358A1
PACKAGE
Plant Lifter without Automatic Height Control
1шт.
See Figures 09A-27, 09A-28
1шт.
32
448177A1
PACKAGE
Automatic Height Control Completing with Ladder Latch
1шт.
See Figures 09A-30, 09A-37
1шт.
33
431241A1
PACKAGE
Automatic Height Control Completing without Ladder Latch
1шт.
See Figures 09A-30, 09A-37
1шт.
34
431281A1
PACKAGE
Automatic Height Control Fillers
1шт.
See Figure 09A-37
1шт.
35
431246A1
PACKAGE
Completing Parts
1шт.
36
431492A1
PACKAGE
Completing Parts
1шт.
37
431692A1
PACKAGE
Completing Parts
1шт.
38
431476A1
PACKAGE
Completing Parts
1шт.
39
431694A1
PACKAGE
Completing Parts
1шт.
40
431695A1
PACKAGE
Completing Parts
1шт.
