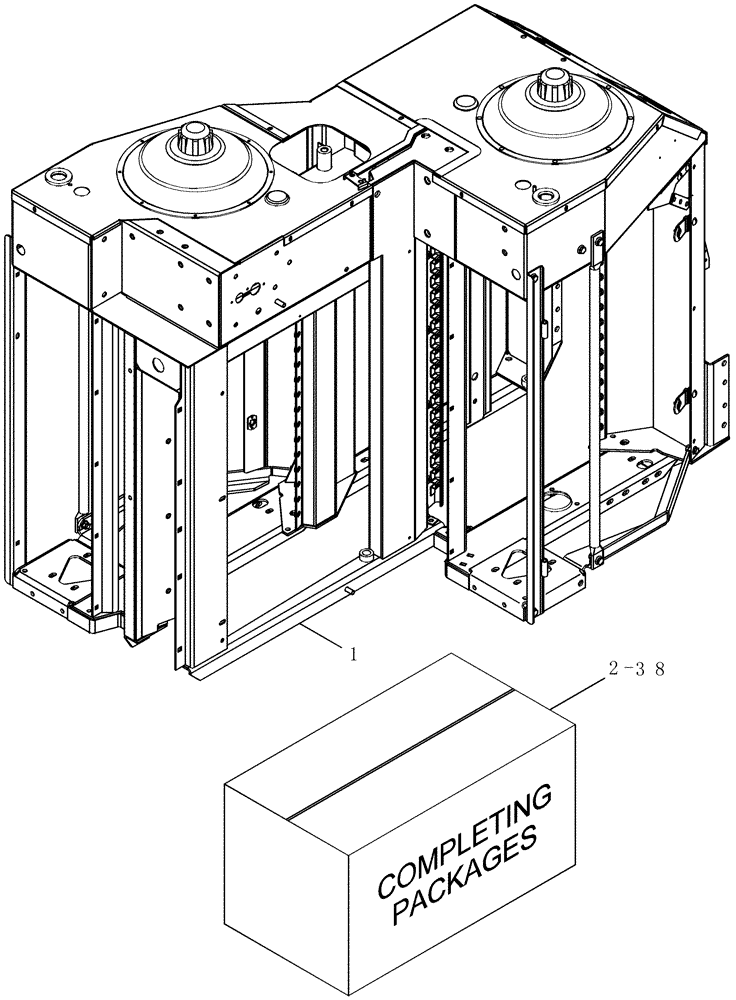

Запчасти Case IH CPX620 (09A-38) - DRUM SERVICE ASSEMBLIES / COMPLETING PACKAGES 6 ROW NARROW (13) - PICKING SYSTEM
№
Артикул
Название
Примечание
Количество
87426419
DRUM
Assembly, Service, Drum #1; Inc. 1, 2, 4, 6, 7, 10, 12, 14, 15, 18, 20, 28, 30, 33
1шт.
87426421
DRUM
Assembly, Service, Drum #2; Inc. 1, 2, 7, 10, 11, 13, 18, 21, 26, 29, 32, 34
1шт.
87426422
DRUM
Assembly, Service, Drum #3; Inc. 1, 3, 4, 6, 8, 9, 13, 17, 19, 22, 27, 28, 31, 35
1шт.
87426423
DRUM
Assembly, Service, Drum #4; Inc. 1, 2, 4, 6, 12, 15, 23, 26, 28, 31, 36
1шт.
87416636
DRUM
Assembly, Service, Drum #5; Inc. 1, 2, 4, 6, 7, 10, 12, 13, 15, 18, 24, 29, 32, 37
1шт.
87416638
DRUM
Assembly, Service, Drum #6; Inc. 1, 2, 5, 6, 7, 10, 11, 13, 16, 18, 25, 28, 31, 38
1шт.
87424035
DRUM
Assembly, High Yield, Service, Drum #1; Inc. 1, 2, 4, 6, 7, 10, 12, 14, 15, 18, 20, 24, 28, 30, 33
1шт.
87424036
DRUM
Assembly, High Yield, Service, Drum #2; Inc. 1, 2, 4, 6, 7, 10, 13, 18, 21, 26, 29, 32, 34
1шт.
87424037
DRUM
Assembly, High Yield, Service, Drum #3; Inc. 1, 3, 4, 6, 8, 9, 17, 19, 22, 27, 28, 31, 35
1шт.
87424038
DRUM
Assembly, High Yield, Service, Drum #4; Inc. 1, 2, 4, 6, 7, 12, 15, 23, 26, 28, 31, 36
1шт.
87424033
DRUM
Assembly, High Yield, Service, Drum #5; Inc. 1, 2, 4, 6, 7, 10, 12, 13, 15, 18, 24, 29, 32, 37
1шт.
87424034
DRUM
Assembly High Yield, Service, Drum #6; Inc. 1, 2, 5, 6, 7, 10, 11, 13, 16, 18, 25, 28, 31, 38
1шт.
1
NSS
NOT SOLD SEPARAT
Drum, Basic Service, With Covers and Harness
1шт.
2
87454849
PACKAGE
Rotor Doors
1шт.
See Figure 09A-37
1шт.
4
87454859
PACKAGE
Front Outlets
1шт.
See Figure 09C-01
1шт.
3
87454852
PACKAGE
Rotor Doors
1шт.
See Figure 09A-37
1шт.
5
87454857
PACKAGE
Front Outlets
1шт.
See Figure 09C-02
1шт.
6
431245A1
PACKAGE
Front Nozzles
1шт.
See Figure 09C-01
1шт.
7
87454858
PACKAGE
Rear Outlets
1шт.
See Figure 09C-02
1шт.
8
87454861
PACKAGE
Rear Outlets
1шт.
See Figure 09C-02
1шт.
9
431769A1
PACKAGE
Rear Nozzles
1шт.
See Figure 09C-02
1шт.
10
431473A1
PACKAGE
Rear Nozzles
1шт.
See Figure 09C-02
1шт.
11
431655A1
PACKAGE
Front Transition
1шт.
See Figure 09C-01
1шт.
12
431244A1
PACKAGE
Front Transition
1шт.
See Figure 09C-01
1шт.
13
431475A1
PACKAGE
Rear Transitions
1шт.
See Figure 09C-02
1шт.
14
431472A1
PACKAGE
Rear Transitions
1шт.
See Figure 09C-02
1шт.
15
431647A1
PACKAGE
Front Extension
1шт.
See Figure 09C-01
1шт.
16
431243A1
PACKAGE
Front Extension
1шт.
See Figure 09C-01
1шт.
17
431797A1
PACKAGE
Front Extension
1шт.
See Figure 09C-01
1шт.
18
431471A1
PACKAGE
Rear Extension
1шт.
See Figure 09C-02
1шт.
19
431798A1
PACKAGE
Rear Extension
1шт.
See Figure 09C-02
1шт.
20
431240A1
PACKAGE
Gearbox
1шт.
See Figure 09A-11
1шт.
21
431758A1
PACKAGE
Gearbox
1шт.
See Figure 09A-12
1шт.
22
431789A1
PACKAGE
Gearbox
1шт.
See Figure 09A-14
1шт.
23
431636A1
PACKAGE
Gearbox
1шт.
See Figure 09A-16
1шт.
24
431637A1
PACKAGE
Gearbox
1шт.
See Figure 09A-17
1шт.
25
431280A1
PACKAGE
Gearbox
1шт.
See Figure 09A-18
1шт.
26
433187A1
PACKAGE
Gearbox Completing
1шт.
See Figure 09A-16
1шт.
27
433189A1
PACKAGE
Gearbox Completing
1шт.
See Figure 09A-17
1шт.
28
414357A1
PACKAGE
Plant Lifter with Automatic Height Control
1шт.
See Figures 09A-27, 09A-28, 09A-30
1шт.
29
414358A1
PACKAGE
Plant Lifter without Automatic Height Control
1шт.
See Figures 09A-27, 09A-28
1шт.
30
448177A1
PACKAGE
Automatic Height Control Completing with Ladder Latch
1шт.
See Figures 09A-30, 09A-37
1шт.
31
431241A1
PACKAGE
Automatic Height Control Completing without Ladder Latch
1шт.
See Figures 09A-30, 09A-37
1шт.
32
431281A1
PACKAGE
Automatic Height Control Fillers
1шт.
See Figure 09A-37
1шт.
33
431246A1
PACKAGE
Completing Parts
1шт.
34
431769A1
PACKAGE
Completing Parts
1шт.
35
87454855
PACKAGE
Completing Parts
1шт.
36
431831A1
PACKAGE
Completing Parts
1шт.
37
431694A1
PACKAGE
Completing Parts
1шт.
38
431695A1
PACKAGE
Completing Parts
1шт.
Выбрано товаров: 81
