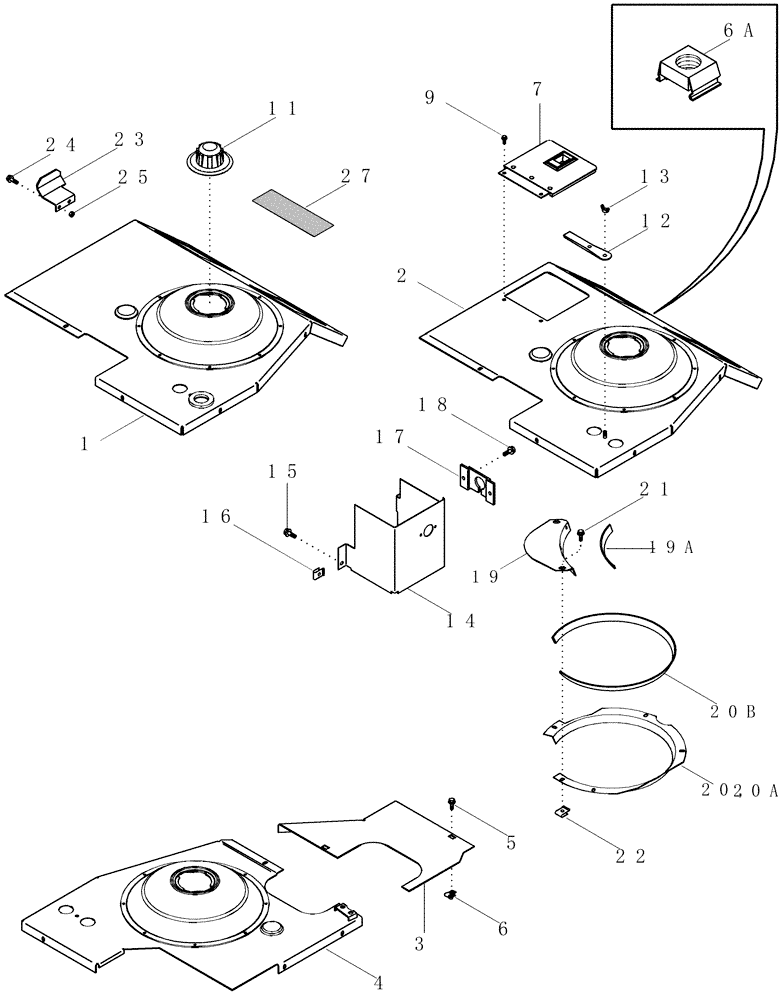

Запчасти Case IH CPX620 (09A-35) - COVERS (13) - PICKING SYSTEM

1

1982627C2

COVER ASSY

Front Right Hand, Drums Numbers 1, 3, 4, 5, 6

1шт.

See Figure 09A-36

1шт.

2

1982724C1

COVER ASSY

Front Right Hand, Drum Number 2, With Opening For Operator Presence System

1шт.

See Figure 09A-36

1шт.

3

1990261C2

COVER ASSY

Top, Center

1шт.

See Figure 09A-36

1шт.

4

1982764C2

COVER ASSY

Top, Rear

1шт.

See Figure 09A-36

1шт.

5

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

20шт.

6

104329C1

NUT

1/4

16шт.

6a

673689R1

NUT

Cage

4шт.

7

1982665C2

COVER ASSY

Access, Large, 2 Used on Drum Numbers 1, 3, 4, 5, 6; 3 Used on Drum Number 2

2-3шт.

See Figure 09A-36

1шт.

9

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

10шт.

11

1982787C2

PLUG

Rotor

2шт.

12

1982894C2

LOCKING PLATE

Doffer Adjustment

2шт.

13

129-409

WING NUT,1/4"-20

2шт.

14

87454862

CHANNEL

Tether Storage, Drum Number 2

1шт.

15

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

4 Used on Drum Numbers 1, 3, 4, 5, 6; 6 Used on Drum Number 2

4-6шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4 Used on Drum Numbers 1, 3, 4, 5, 6; 6 Used on Drum Number 2

4-6шт.

17

87454863

SUPPORT

Connector Mounting, Drum Number 2

1шт.

18

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

1шт.

19

433777A1

COVER

Access, Picker Bar, Inc. 19B

2шт.

19a

NSS

NOT SOLD SEPARAT

SEAL

1шт.

20

433775A1

RING

Rotor Guard, Left Hand, Inc. 20A, 20B

1шт.

20a

1988726C1

RING

Rotor Guard, Left Hand

1шт.

20b

NSS

NOT SOLD SEPARAT

SEAL

1шт.

20

433776A1

RING

Rotor Guard, Right Hand, Inc. 20A, 20B

1шт.

20a

1988727C1

RING

Rotor Guard, Right Hand

1шт.

20b

NSS

NOT SOLD SEPARAT

SEAL

1шт.

21

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

14шт.

22

104329C1

NUT

1/4

14шт.

23

1983176C2

BRACKET

Rotor Wrench, Drum Number 2

1шт.

24

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

27

D55216

PAD,2" x 9"

2 x 9 in, Self-Adhesive

2шт.
