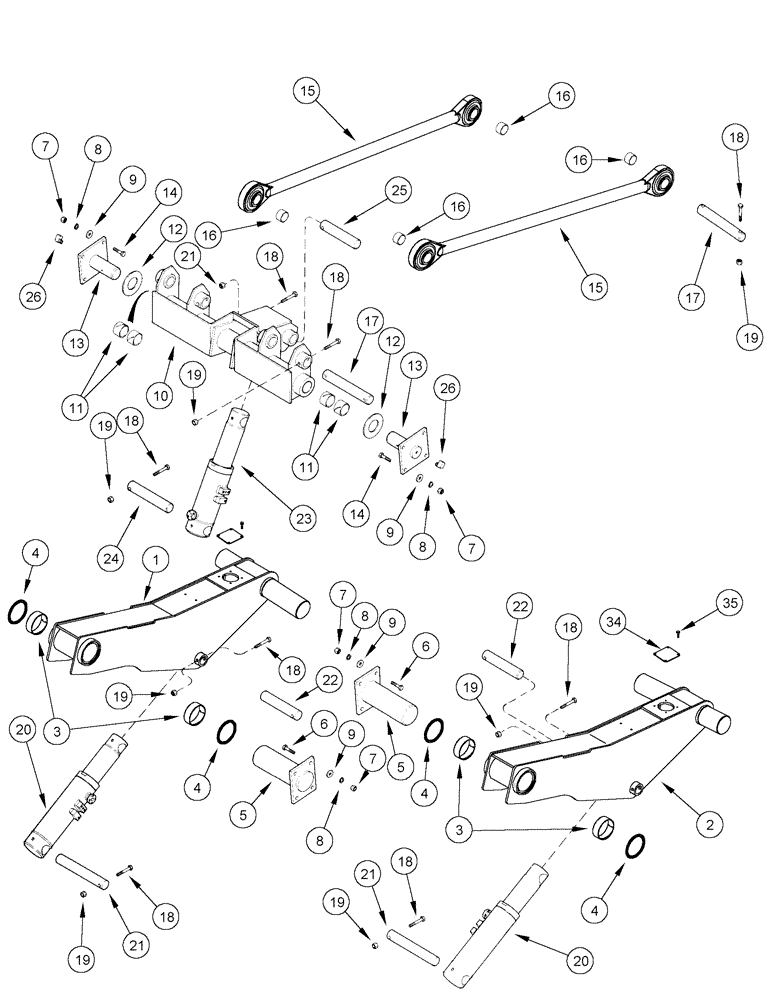

Запчасти Case IH CPX620 (09A-31) - DRUM LIFT ARMS (13) - PICKING SYSTEM

1

278387A5

ARM, LIFT

Left Hand, Inc. 3, 4

1шт.

2

278386A5

ARM, LIFT

Right Hand, Inc. 3, 4

1шт.

3

115792A1

BUSHING

2шт.

4

199246A1

SEAL,101.6mm ID x 123.98mm OD x 6.35mm Thk

Lift Arm Pivot

2шт.

5

417476A1

PIN

2шт.

6

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

8шт.

7

329-108

NUT,1/2"-13, G8

18шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

16шт.

9

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

16шт.

10

1982981C2

PIVOT

Kickback, Inc. 11, Serial Range: -Y6T011501

1шт.

10

87366220

PIVOT ASSY.

Kickback, Inc. 11, Start Serial: Y6T011501

1шт.

11

669644R1

BUSHING

4шт.

12

495-31238

WASHER,2.38" ID x 4.75" OD x 0.22" Thk

2шт.

13

1983044C1

PIN

Kickback Pivot

2шт.

14

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

8шт.

15

297464A1

LINK ASSY.

Rear Radius

2шт.

16

320425A1

SPACER

1-53/64 ID x 3-15/16

4шт.

17

1982990C2

PIN

4шт.

18

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

14шт.

19

231-4138

LOCK NUT,1/2"-13, GB

14шт.

20

107784A1

CYLINDER ASSY.

98 ID x 272 mm strk, Drum Lift, Serial Range: -Y6T011501

2шт.

See Figure 08-29

1шт.

20

87272663

HYDRAULIC CYLINDER,88.9mm Rod, 271.5mm Stroke

Drum Lift, Start Serial: Y6T011501

2шт.

See Figure 08-31

1шт.

21

348316A1

PIN,44.21mm OD x 280mm L

Lift Cylinder, Lower

2шт.

22

1983053C1

PIN

Lift Cylinder, Upper

2шт.

23

107785A1

CYLINDER ASSY.

102 ID x 185 mm strk, Drum Tilt, Serial Range: -Y6T011501

1шт.

See Figure 08-31

1шт.

23

87272664

CYLINDER ASSY.,88.9mm Rod, 184.6mm Stroke

Drum Tilt, Start Serial: Y6T011501

1шт.

See Figure 08-32

1шт.

24

1982991C1

PIN

Kickback Cylinder, Lower

1шт.

25

1983053C1

PIN

Kickback Cylinder, Upper

1шт.

28

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

6шт.

29

295528A1

SWITCH

Proximity, Drum Lift (2), Drum Tilt, Not Illustrated

3шт.

See Figures 04-10, 04-11

1шт.

30

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

Not Illustrated

1шт.

31

461-32516

HEX SOC SCREW,1/4"-20 x 1"

Not Illustrated

4шт.

32

112291A1

COVER

Switch Port

3шт.

33

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

34

87415938

COVER

2шт.

35

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

8шт.
