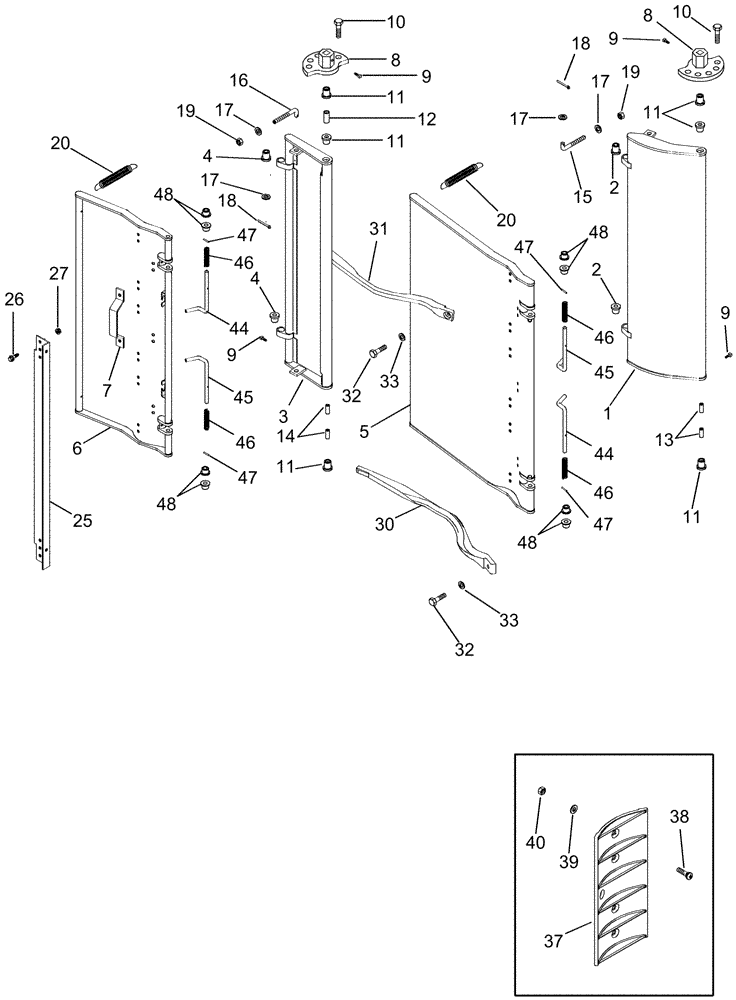

Запчасти Case IH CPX620 (09A-29) - PLANT COMPRESSOR (13) - PICKING SYSTEM

1

442695A1

GUIDE

Front, Right Hand, Inc. 2, Serial Range: -Y6T011501

1шт.

1

87516309

GUIDE

Front, Right Hand, Inc. 2, Start Serial: Y6T011501

1шт.

2

404983A2

BUSHING,10.3mm ID x 18.1mm OD x 20mm L

Flanged, Serial Range: -Y6T011501

2шт.

2

87516315

GUIDE BUSHING,10.3mm ID x 18.1mm OD x 15.8mm L

Non-Flanged, Start Serial: Y6T011501

2шт.

3

442696A1

GUIDE

Rear, Right Hand, Inc. 4, Serial Range: -Y6T011501

1шт.

3

87516310

GUIDE

Rear, Right Hand, Inc. 4, Start Serial: Y6T011501

1шт.

4

404983A2

BUSHING,10.3mm ID x 18.1mm OD x 20mm L

Flanged, Serial Range: -Y6T011501

2шт.

4

87516315

GUIDE BUSHING,10.3mm ID x 18.1mm OD x 15.8mm L

Non-Flanged, Start Serial: Y6T011501

2шт.

87432914

EXTENSION ASSY.

Front, Inc. 5, 44 - 47, Serial Range: -Y6T011501

1шт.

87516311

EXTENSION ASSY.

Front Rotor, Inc. 5, 44 - 48, Start Serial: Y6T011501

1шт.

87432913

EXTENSION ASSY.

Rear, Inc. 6, 44 - 47, Serial Range: -Y6T011501

1шт.

87516312

EXTENSION ASSY.

Rear Rotor, Inc. 6, 44 - 48, Start Serial: Y6T011501

1шт.

5

NSS

NOT SOLD SEPARAT

Extension, Front, Inc. 7

1шт.

6

NSS

NOT SOLD SEPARAT

Extension, Rear, Inc. 7

1шт.

7

160638C2

HANDLE

1шт.

8

216542C1

HUB

Torsion

2шт.

9

485-1258

SET SCREW,Sq Hd, 1/4"-20 x 1/2"

4шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

11

216544C1

BUSHING

6шт.

12

86982778

SPACER,15.8mm ID x 21.34mm OD x 46.02mm L

1шт.

13

1982784C1

TORSION BAR

Front

1шт.

14

1982785C1

TORSION BAR

Rear

1шт.

15

669752R1

ADJUSTMENT ROD

Front

2шт.

16

216543C1

ADJUSTMENT ROD

Rear

2шт.

17

495-21044

WASHER,3/8"

8шт.

18

432-812

COTTER PIN,3/4" OAL x 1/8" W

4шт.

19

131-463

NUT,3/8"-16

4шт.

20

1338869C2

SPRING,162mm Free Length

Extension

2шт.

25

1982806C2

SUPPORT

1шт.

26

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

27

231-5146

FLANGE NUT,3/8"-16

2шт.

30

216828C2

GUIDE

Left Hand

17шт.

31

216829C2

GUIDE

Right Hand

17шт.

32

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

34шт.

33

87058C1

BELLEVILLE WASHER

34шт.

37

87401078

PLATE

Scrapping, Shallow Ribbed, If Equipped

6шт.

37

87403481

PLATE

Scrapping, Deep Ribbed, If Equipped

6шт.

38

474-12510

SCREW,FLAT, 1/4" - 28 x 5/8"

18шт.

39

492-11025

LOCK WASHER,1/4"

18шт.

40

425-114

NUT,1/4"-28, G5

18шт.

44

87434457

PIN,9.52mm OD

Compression

1шт.

45

87426046

PIN,9.52mm OD

Compression

1шт.

46

87426044

SPRING

Compression

2шт.

47

38-1812

LOCK PIN,1/8" x 3/4", Slotted

2шт.

48

87516316

GUIDE BUSHING,10.3mm ID x 15mm OD x 10.5mm L

Extension, Flanged

4шт.

87525393

PACKAGE

Compressor Sheet, Front, Inc. 1, 5, 44 - 48

1шт.

87525395

PACKAGE

Compressor Sheet, Rear, Inc. 3, 6, 44 - 48

1шт.

87525392

PACKAGE

Compressor Sheet, Front and Rear, Inc. 1, 3, 5, 6, 44 - 48

1шт.
