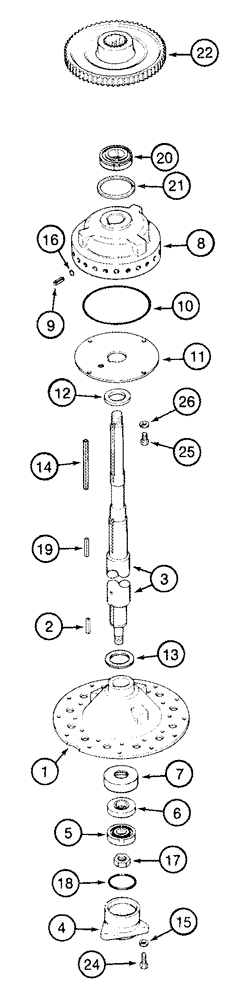

Запчасти Case IH CPX620 (09A-20) - DRUM ROTOR SUPPORTS AND SHAFT (13) - PICKING SYSTEM

1

216597C1

SUPPORT

Picker Bar

2шт.

2

Q1443

KEY,5/16" Sq x 1 1/2", Par

2шт.

3

1982446C2

SHAFT

Picker Drum

2шт.

4

1982437C1

BEARING HOUSING,51 mm ID x 76 mm OD x 63 mm

Pedestal Lower Bearing

2шт.

5

1982454C1

BALL BEARING,25mm ID x 62mm OD x 17mm W

Pedestal, Lower

2шт.

6

1982438C1

WASHER

2шт.

7

1982439C1

BEARING CAP,33 mm ID x 77.5 mm OD x 23.9 mm

Pedestal Lower Bearing

2шт.

1990333C1

BEARING ASSY

Journal Bearing, Inc. 8 - 9

2шт.

8

NSS

NOT SOLD SEPARAT

HOLDER

1шт.

9

38-11610

LOCK PIN,1/4" x 5/8", Slotted

12шт.

10

238-7163

O-RING,0.103" Thk x 5.987" ID, -163, Cl 7, 75 Duro

2шт.

11

1982397C2

RETAINER

Bearing Head

2шт.

12

221529C1

WASHER,42mm ID x 66mm OD x 5.5mm Thk

Drum Rotor

2шт.

13

495-81090

WASHER,42.06mm ID x 63.5mm OD x 0.84mm Thk

2шт.

14

Y24417

KEY,1/4" Sq x 5", Par

Square, 1/4 x 5

2шт.

15

492-11038

LOCK WASHER,3/8"

6шт.

16

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

24шт.

17

185216C1

LOCK NUT

7/8 NF

2шт.

18

238-5143

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

2шт.

19

586879R1

KEY

5/16 x 2

2шт.

20

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

Drum Drive Shaft

2шт.

21

102-23283

SNAP RING,#283, 3.009", Int, Spiral

No. 283, Internal Spiral

2шт.

22

116022A1

GEAR

104T, Spindle Drive

2шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

25

424-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 2

8шт.

26

492-11031

LOCK WASHER,5/16"

8шт.
