Запчасти Case IH CPX620 (09A-19) - DRUM ROTOR AND DRIVE CAMS (13) - PICKING SYSTEM

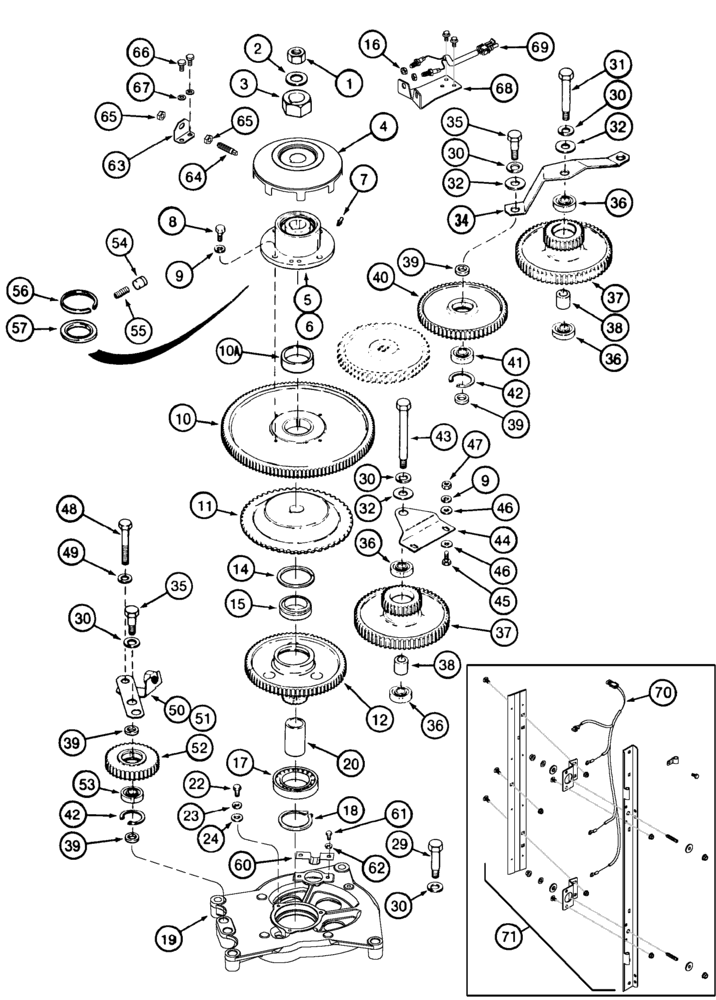

Схема запчастей Case IH CPX620 - (09A-19) - DRUM ROTOR AND DRIVE CAMS (13) - PICKING SYSTEM
31
38
38
30
67
6
4
19
36
30
11
1
70
54
30
35
22
9
9
18
8
24
51
39
49
40
69
5
52
66
41
46
7
36
30
17
61
65
46
32
68
10a
36
60
36
57
64
2
65
55
43
32
15
39
35
48
3
47
10
34
39
71
53
42
45
20
23
12
50
37
56
42
29
16
63
44
39
32
30
14
62
37

Артикул

Название

Примечание

Количество

1

230-46318

LOCK NUT,1 1/8"-12, GA

2шт.

2

495-81190

WASHER,1.16" ID x 1.75" OD x 0.12" Thk

2шт.

3

1988758C1

HUB

Rotor Wrench

2шт.

4

87424376

CAP

Drum Clutch Speed Sensor

2шт.

5

1984289C4

RATCHET

Reverse, Left Hand, For Repair Kit Components See Ref. 54 - 57

1шт.

6

1984290C4

RATCHET

Reverse, Right Hand, For Repair Kit Components See Ref. 54 - 57

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

8

424-616

BOLT,Hex, 3/8" - 16 x 1", Gr 2

8шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

10

1339217C1

GEAR

160T, Inc. 10A

2шт.

10a

1982410C1

BUSHING,57.25mm ID x 66.79mm OD x 18.74mm L

1шт.

11

1982414C1

SPROCKET ASSY.

Monitor Pickup

2шт.

12

116021A1

GEAR

104T, Spindle Drive

2шт.

14

102-23283

SNAP RING,#283, 3.009", Int, Spiral

No. 283, Internal Spiral

2шт.

15

87424378

SPACER,31.78mm ID x 48mm OD x 18mm L

Drum Rotor Speed Sensor

2шт.

16

87328624

JAM NUT

5/16 Stainless

8шт.

17

201118C91

BEARING ASSY,65mm ID x 100mm OD x 18mm W

Cam Center

2шт.

18

100-11255

SNAP RING,#255, Ext

2шт.

19

394252A1

CAM

Cotton Picker, Left Hand

1шт.

19

394253A1

CAM

Cotton Picker, Right Hand, Not Illustrated

1шт.

20

672448R2

SPACER

Inner Bearing

2шт.

22

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

5/16 x 1/2

6шт.

23

492-11031

LOCK WASHER,5/16"

8шт.

24

95-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

6шт.

29

1982635C2

BOLT

7шт.

30

892-11020

LOCK WASHER,M20

8шт.

31

1982636C2

BOLT

1шт.

32

495-11081

WASHER,3/4", SAE

4шт.

34

1982612C1

SUPPORT

Idler Retaining

1шт.

35

1982634C2

BOLT

5/8

2шт.

36

524598R91

BALL BEARING,20mm ID x 52mm OD x 15mm W

Idler Gear

4шт.

36

524598R91GV

BEARING

Value, Ball Bearing

4шт.

37

1982409C1

GEAR

Idler

2шт.

38

1982615C1

SPACER

Double Idler

2шт.

39

1982412C1

SPACER

Idler Gear

6шт.

40

1339309C1

GEAR

93T, Drum Drive

1шт.

41

524598R91

BALL BEARING,20mm ID x 52mm OD x 15mm W

Gear

1шт.

42

100-21206

SNAP RING,2.062", Int, #206

3шт.

43

1982637C2

BOLT

1шт.

44

1982620C2

ANGLE BAR

Idler, Rear

1шт.

45

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

46

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4шт.

47

425-106

NUT,3/8"-16, Cl 5

2шт.

48

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

2шт.

48

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

49

492-11062

BEARING WASHER,5/8"

4шт.

50

87424381

SUPPORT

Drive, Left Hand

1шт.

52

1339404C1

GEAR

56T, Doffer Drive

2шт.

51

87424380

SUPPORT

Drive, Right Hand

1шт.

53

524598R91

BALL BEARING,20mm ID x 52mm OD x 15mm W

Doffer Gear

2шт.

278799A1

REPAIR KIT

Inc. 54 - 57

1шт.

54

700703406

CAM

Ratchet

14шт.

55

700703408

SPRING

Detent

14шт.

56

800-2180

SNAP RING,M80, Int

1шт.

57

124088A1

RING

Ratchet

1шт.

60

394414A1

CLAMP,24mm ID

2шт.

61

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

4шт.

62

492-11031

LOCK WASHER,5/16"

4шт.

62

492-11038

LOCK WASHER,3/8"

2шт.

63

87424377

SUPPORT

Rotor Speed Sensor

1шт.

64

87426499

MAGNET

Magnet, Rotor Monitor

1шт.

65

87446500

NUT

Nut, Nylon 5/16

1шт.

66

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

67

492-11025

LOCK WASHER,1/4"

2шт.

68

87424379

BRACKET

Rotor Speed Sensor

2шт.

69

87326704

SENSOR

Reed Switch Drum Rotor, Inc. 16

2шт.

70

87448799

HARNESS

Rotor

1шт.

71

REF

INSTRUCTION

HINGE ASSY, Front Doffer Post w/Flap

1шт.

See Figure 04-33

1шт.
