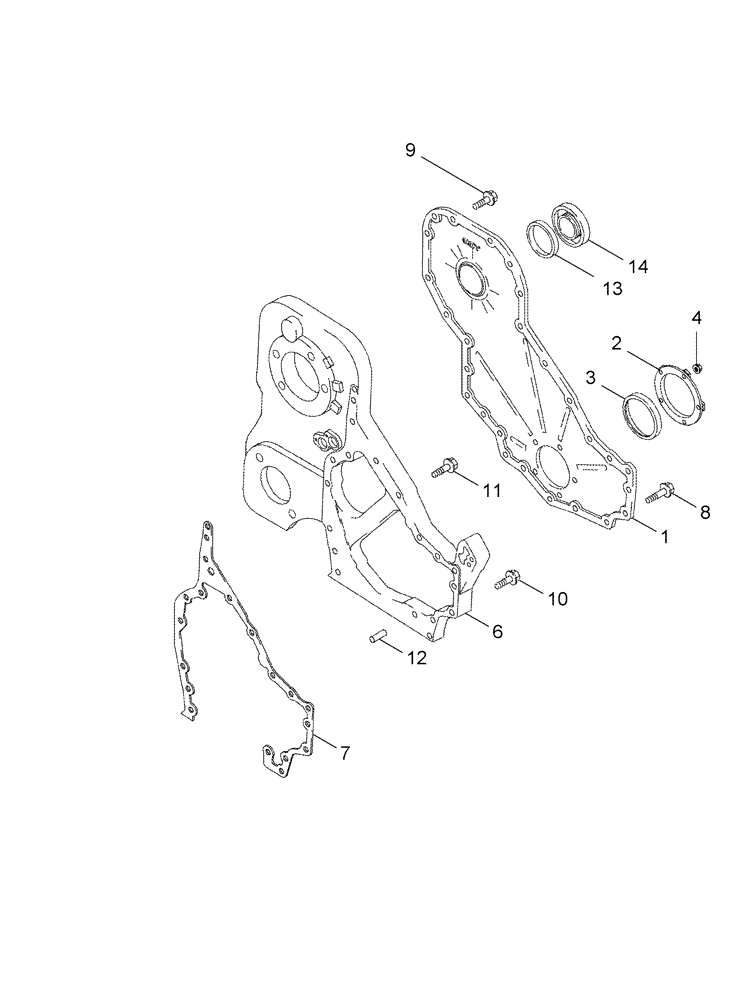

Запчасти Case IH CPX620 (02-10) - FRONT GEAR COVER - BSN Y6T011701 (01) - ENGINE

1

J948045

COVER

1шт.

2

J941786

CARRIER

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL, Order A77790 or A77808

1шт.

See Figure 02-33

1шт.

4

87493304

FLANGE NUT

M6

5шт.

6

J945853

HOUSING

1шт.

7

J944293

GASKET,1.01mm Thk

Gear Housing

1шт.

8

J926863

FLANGE BOLT

M8 x 50

12шт.

9

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

14шт.

10

J926846

FLANGE BOLT

M8 x 20

3шт.

11

J943885

BOLT

M8 x 40

2шт.

12

J900257

PIN,10.01mm OD x 16mm L

10 mm

2шт.

13

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

14

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

1шт.
