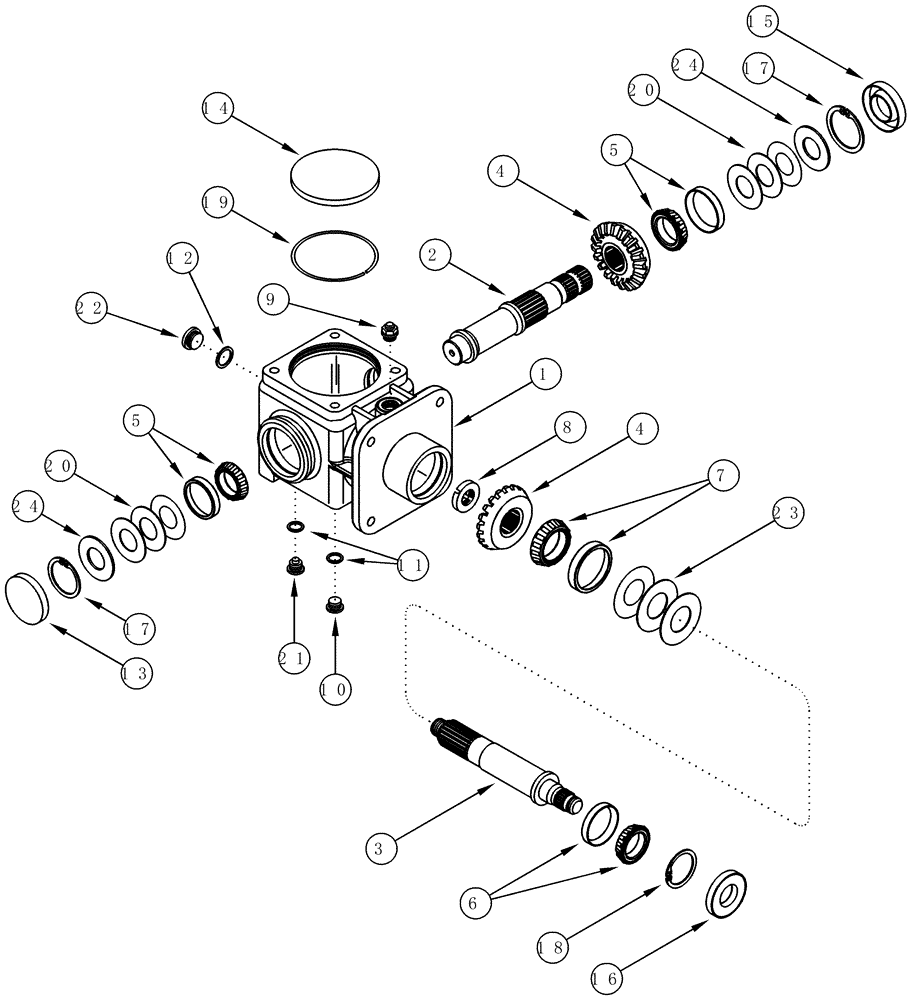

Запчасти Case IH CPX620 (09A-04) - GEARBOX - DRUM DRIVE, LEFT HAND (13) - PICKING SYSTEM

338161A2

GEARBOX ASSY

Drum Drive - Left HandInc. 1 - 24

1шт.

338161A2R

REMAN-GEARBOX

CPX620 (5/05-8/06)

1шт.

338161A2C

CORE-GEARBOX

Return Number

1шт.

1

375394A1

CASE ASSY.

Gear

1шт.

2

375396A2

SHAFT

Output

1шт.

3

375400A2

SHAFT

Input

1шт.

4

375401A2

GEAR SET

1шт.

5

906064R1

TAPERED BEARING,35 mm ID x 72 mm OD x 15 mm

2шт.

6

906065R1

TAPERED BEARING,40mm ID x 80mm OD x 19.75mm W

1шт.

7

906066R1

TAPERED BEARING,40 mm ID x 90 mm OD x 20 mm

1шт.

8

375406A1

SLOTTED NUT

1шт.

9

375408A1

BREATHER

1шт.

10

375409A1

PLUG

M16

1шт.

11

933155R1

SEALING RING,M16 x 20 x 1.5

3шт.

12

933608R1

SEALING RING,M26 x 31 x 2

1шт.

13

375412A1

CAP

72 mm

1шт.

14

375413A1

CAP

120 mm

1шт.

15

375414A1

SEAL,35mm ID x 72mm OD

1шт.

16

375415A1

SEAL,35mm ID x 68mm OD

1шт.

17

800-2172

SNAP RING

No. 72

2шт.

18

800-2168

SNAP RING,M68, Int

1шт.

19

800-21120

SNAP RING,M120, Int

No. 120

1шт.

20

906068R1

SHIM,M62 x 72mm OD x 0.1mm Thk

Shim, 0.10 mm (0.004 in)

4шт.

20

906069R1

SHIM,M62 x 72mm OD x 0.3mm Thk

Shim, 0.30 mm (0.012 in)

4шт.

20

906070R1

SHIM,M62 x 72mm OD x 0.5mm Thk

Shim, 0.50 mm (0.020 in)

4шт.

21

375423A1

PLUG

M16

1шт.

22

375424A1

PLUG

M26

1шт.

23

906076R1

SHIM,M80 ID x 90 OD x .1 Thk

Shim, 0.10 mm (0.004 in)

1шт.

23

906077R1

SHIM,M80 ID x 90 OD x .3 Thk

Shim, 0.30 mm (0.012 in)

2шт.

23

906078R1

SHIM,M80 ID x 90 OD x .5 Thk

Shim, 0.50 mm (0.020 in)

1шт.

24

906072R1

SHIM,M62 ID x 72 OD x 2 Thk

Shim, 2.0 mm

2шт.
