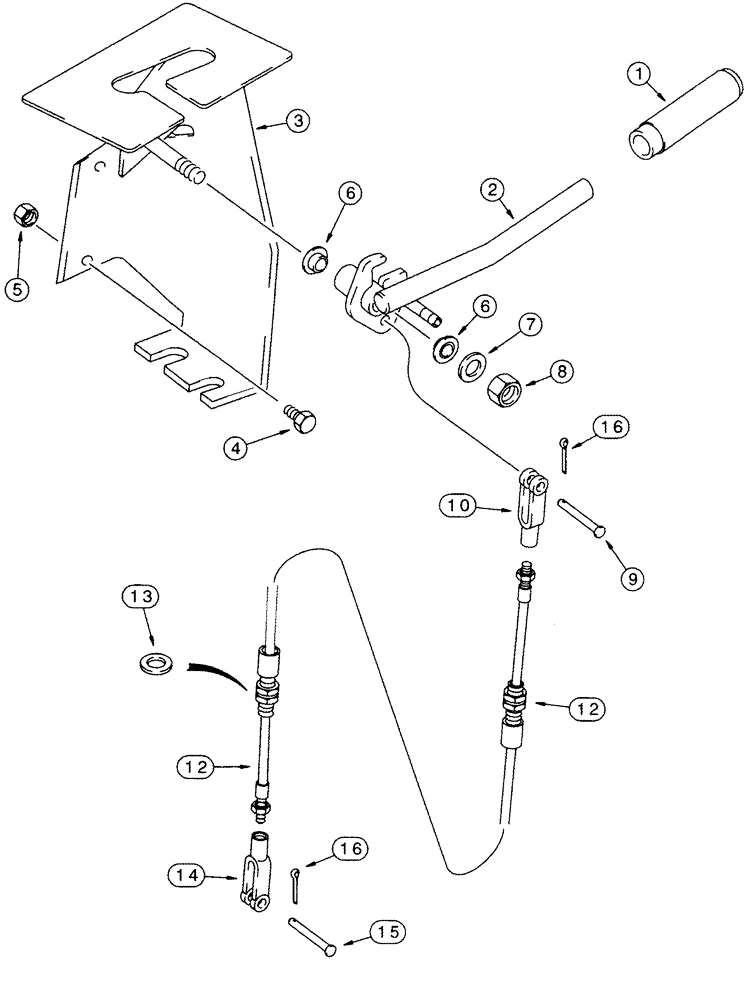

Запчасти Case IH CPX620 (09A-01) - AUXILIARY DRUM DRIVE CONTROL (13) - PICKING SYSTEM

1

283524A1

GRIP

1шт.

2

127315A2

LEVER

1шт.

3

87412672

SUPPORT

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

6

S115001

FLANGED BEARING,0.502" ID x 0.627" OD x 0.3125"

2шт.

7

495-11053

WASHER,1/2", SAE

1шт.

8

231-1448

NUT,1/2"-13, GB

1шт.

9

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

10

213-125

ADJUSTABLE CLEVIS,5/16" - 32

1шт.

11

127415A2

DECAL

Drum Engage, Not Illustrated

1шт.

See Figure 09F-13

1шт.

12

124818A1

CABLE

1шт.

13

495-21081

WASHER,3/4"

1шт.

14

213-125

ADJUSTABLE CLEVIS,5/16" - 32

1шт.

15

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

16

432-612

COTTER PIN,3/32" x 3/4"

2шт.
