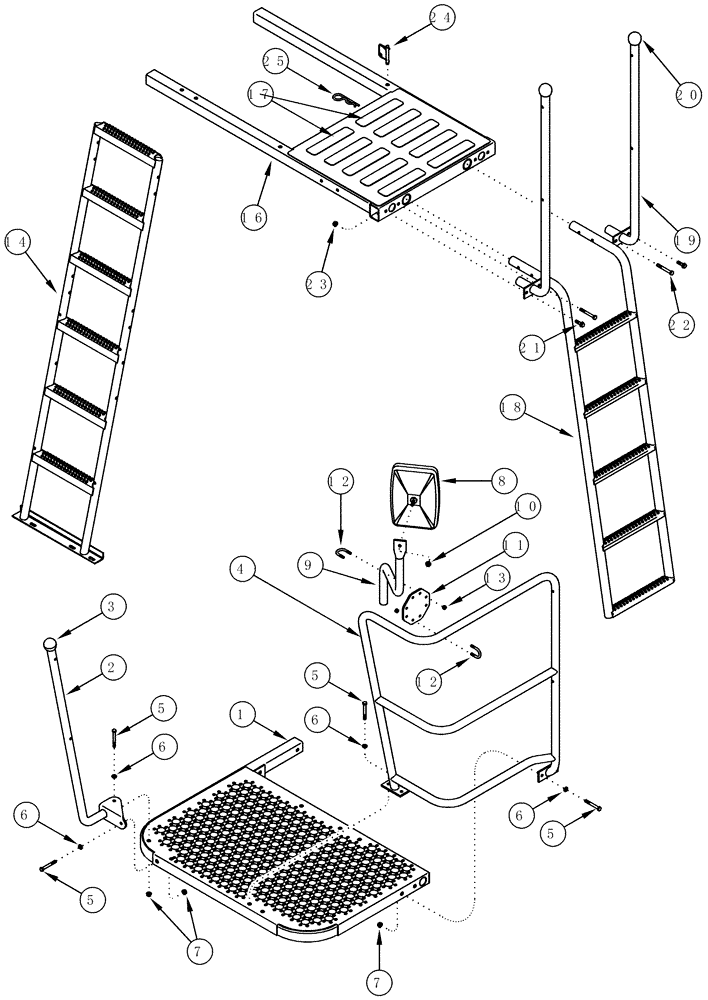

Запчасти Case IH CPX620 (09F-12) - CAB AND SERVICE PLATFORMS AND BASKET LADDER (12) - CHASSIS

NSS

NOT SOLD SEPARAT

Cab Platform Assy, Inc. 1 - 13

1шт.

1

443457A2

PLATFORM ASSY.

, Serial Range: -Y6T011501

1шт.

1

87345108

PLATFORM

, Start Serial: Y6T011501

1шт.

2

446457A1

POST

Handrail, Inc. 3

1шт.

3

349014A1

KNOB

1шт.

4

440869A1

HANDRAIL

Cab Platform

1шт.

5

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

6шт.

6

495-81129

WASHER,13/32" x 3/4" x .120"

6шт.

7

231-5146

FLANGE NUT,3/8"-16

6шт.

8

1283403C1

MIRROR

Cab, Left Hand

1шт.

9

449402A1

TUBE

Cab Mirror

1шт.

10

122379A1

FLANGE NUT

3/8

1шт.

11

449401A1

PLATE

1шт.

12

140374A1

U-BOLT,5/16" - 18 x 41mm W x 47mm L

4шт.

13

231-4215

LOCK NUT,5/16"-18, GB

8шт.

14

444246A2

LADDER

Basket

1шт.

16

448078A1

PLATFORM ASSY.

Inc. 17

1шт.

17

D55216

PAD,2" x 9"

2 x 9 in

10шт.

18

447657A2

LADDER

1шт.

19

446227A1

POST

Inc. 20

2шт.

20

349014A1

KNOB

1шт.

21

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

22

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

23

231-5146

FLANGE NUT,3/8"-16

4шт.

24

439-1848

HEADED PIN,1/2" x 3"

2шт.

25

486830R1

COTTER PIN

2шт.
