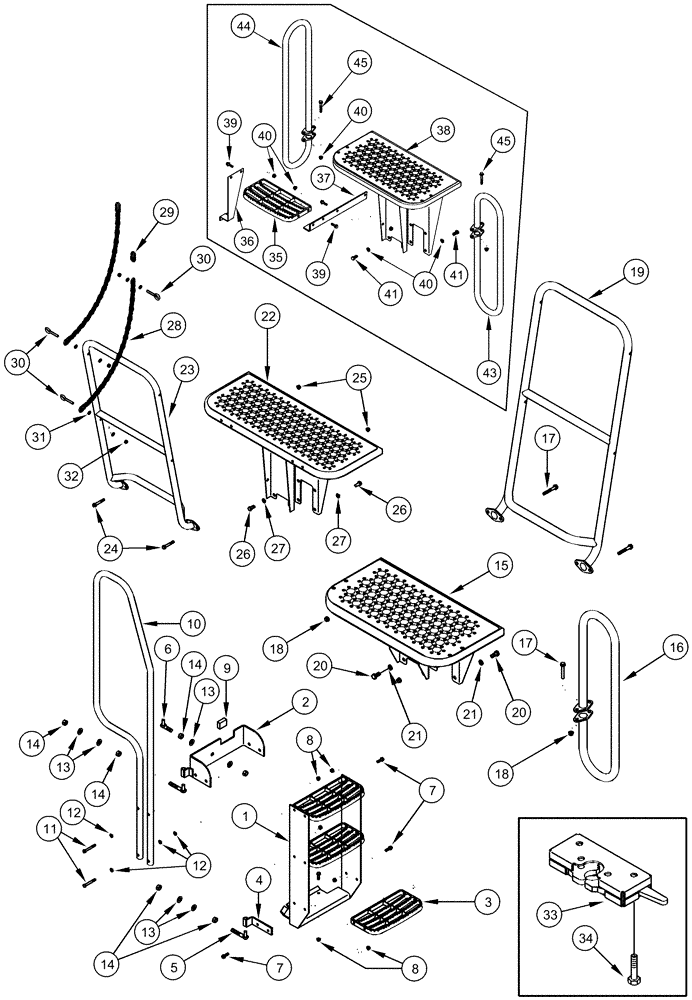

Запчасти Case IH CPX620 (09F-11) - DRUM LADDER, DRUM NUMBERS 1 AND 2 STEP ASSEMBLIES (12) - CHASSIS

NSS

NOT SOLD SEPARAT

Ladder Assy, Cotton Drum, Inc. 1-14

1шт.

1

437571A1

SUPPORT

Ladder Base

1шт.

2

437572A1

SUPPORT

Ladder, Upper

1шт.

3

87270245

STEP

3шт.

4

437573A1

HINGE

Drum Ladder

1шт.

5

437580A1

PIVOT PIN

100 mm (3-15/16 in)

2шт.

6

437581A1

PIVOT PIN

60 mm (2-3/8 in)

1шт.

7

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

12шт.

8

231-5146

FLANGE NUT,3/8"-16

13шт.

9

187884C1

SEALING STRIP,50mm L

51 mm (2 in), Cut From : 187885C1

1шт.

10

437579A1

HANDRAIL

Drum Ladder, Front

1шт.

11

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

6шт.

12

495-81129

WASHER,13/32" x 3/4" x .120"

8шт.

13

495-11066

WASHER,5/8", SAE

6шт.

14

425-1010

NUT,5/8"-11, G5

6шт.

NSS

NOT SOLD SEPARAT

Step Assy, Drum Number 1, Inc. 15 - 21

1шт.

15

445284A3

STEP

Drum 1 on 6 Row, Serial Range: -Y6T011501

1шт.

15

87345109

STEP

Drum 1 on 6 Row, Start Serial: Y6T011501

1шт.

16

445285A1

GRAB RAIL

2шт.

17

409-7640

BOLT,Hex Flg, 3/8" - 16 x 2 1/2", Spcl

6шт.

18

231-5146

FLANGE NUT,3/8"-16

6шт.

19

445286A1

GRAB RAIL

With Step

2шт.

20

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

6шт.

21

892-11012

LOCK WASHER,M12

6шт.

NSS

NOT SOLD SEPARAT

Step Assy, Drum Number 2, Inc. 22 - 32

1шт.

22

445283A2

STEP

Drum 2 on 6 Row, Serial Range: -Y6T011501

1шт.

22

87345110

STEP

Drum 2 on 6 Row, Start Serial: Y6T011501

1шт.

23

445286A1

GRAB RAIL

With Step

2шт.

24

409-7640

BOLT,Hex Flg, 3/8" - 16 x 2 1/2", Spcl

4шт.

25

231-5146

FLANGE NUT,3/8"-16

4шт.

26

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

6шт.

27

892-11012

LOCK WASHER,M12

6шт.

28

449891A1

CHAIN

4шт.

29

326376A2

LINK

Ladder Chain

24шт.

30

449894A1

EYEBOLT

4шт.

31

495-11034

WASHER,5/16", SAE

8шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

33

141224A1

LATCH

1шт.

34

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

3шт.

35

257375A1

STEP

4 Row Wide

1шт.

36

440864A1

SUPPORT

4 Row Wide

1шт.

37

440863A1

ANGLE

4 Row Wide

1шт.

38

87399556

STEP

STEP 4 Row Wide

1шт.

39

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

4 Row Wide

10шт.

40

231-5146

FLANGE NUT,3/8"-16

4 row wide

10шт.

41

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

4 Row Wide

6шт.

42

892-11012

LOCK WASHER,M12

4 Row Wide

6шт.

43

445285A1

GRAB RAIL

4 Row Wide

1шт.

44

87413926

GRAB RAIL

4 Row Wide

1шт.

45

409-7640

BOLT,Hex Flg, 3/8" - 16 x 2 1/2", Spcl

4 Row Wide

4шт.
