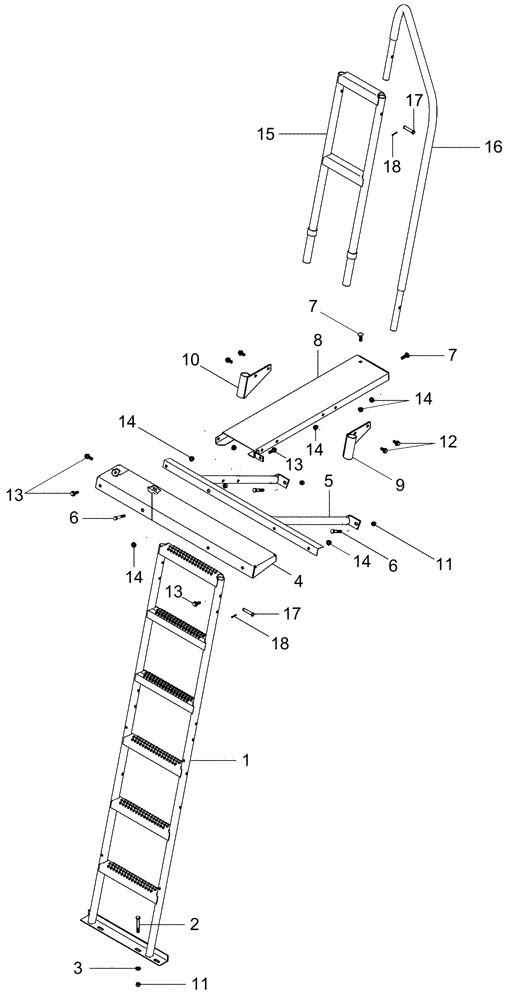

Запчасти Case IH CPX620 (09F-10) - STEPS LADDERS - BASKET LID - 6 ROW NARROW AND 4 ROW WIDE (12) - CHASSIS

1

444246A2

LADDER

Basket

1шт.

2

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

3шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

3шт.

4

245139A1

STEP

Basket Lid Step Extension, Serial Range: -Y6T011501

1шт.

4

87385038

STEP

Basket Front Ladder, Start Serial: Y6T011501

1шт.

5

245140A1

SUPPORT

Basket Ladder Mount

1шт.

6

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

7

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

1шт.

8

245187A1

STEP

Rear Basket Ladder, Serial Range: -Y6T011501

1шт.

8

87385036

STEP

Rear Basket Ladder, Start Serial: Y6T011501

1шт.

9

232549A1

SUPPORT

Upper Basket Ladder, LH

1шт.

10

232550A1

SUPPORT

Upper Basket Ladder, RH

1шт.

11

231-4116

NUT,3/8"-16, GB

7шт.

12

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

13

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

5шт.

14

231-5146

FLANGE NUT,3/8"-16

11шт.

15

245143A3

LADDER

Basket, Upper

1шт.

16

277782A1

RAMP

Basket, Upper

1шт.

17

439-1624

HEADED PIN,3/8" x 1 1/2"

2шт.

18

586591R1

COTTER PIN

1/8

2шт.
