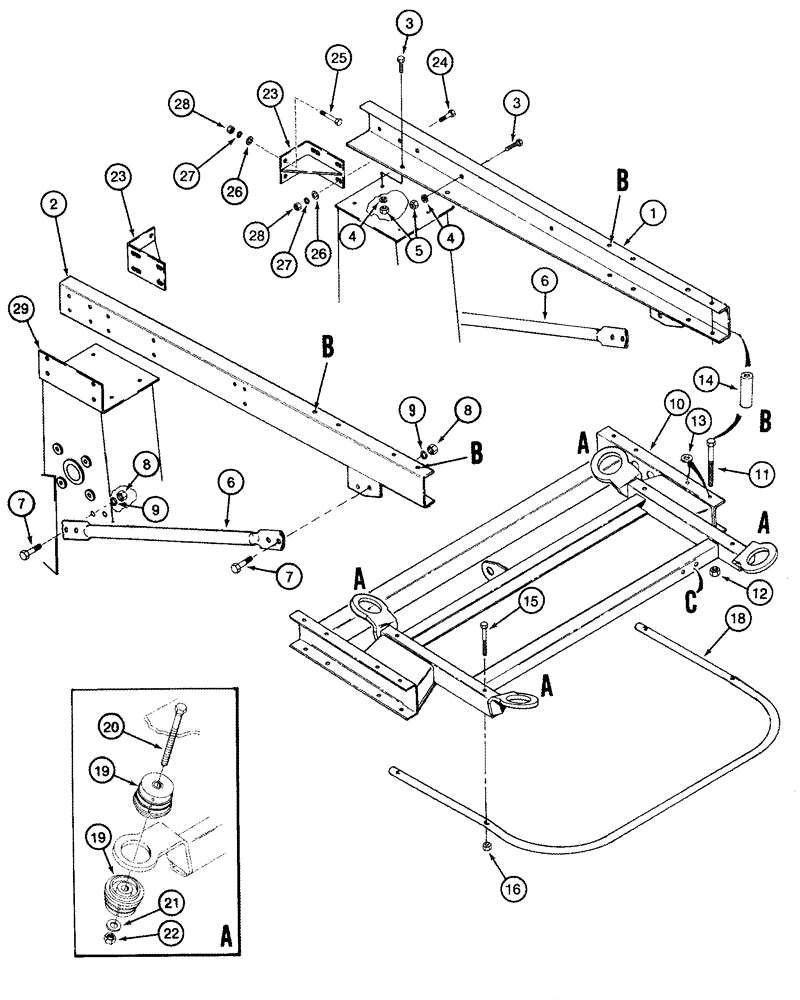

Запчасти Case IH CPX620 (09F-08) - SUPPORTS, MAIN FRAME AND CAB AND PLATFORM (12) - CHASSIS

301846A6

FRAME ASSY

Main Chassis, Not Illustrated

1шт.

1

139132A3

CHANNEL

Cab Support, Left Hand

1шт.

2

139135A3

CHANNEL

Cab Support, Right Hand

1шт.

3

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

12шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

5

425-108

NUT,1/2" - 13, Gr 5

12шт.

6

127523A1

SUPPORT

Cab Channel To Chassis, Lower

2шт.

7

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

8шт.

8

425-1010

NUT,5/8"-11, G5

8шт.

9

492-11062

BEARING WASHER,5/8"

8шт.

10

127519A4

SUPPORT

Cab Mount, Front

1шт.

11

426-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 8

8шт.

12

232-4118

NUT,1/2"-13, GC

8шт.

13

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

14шт.

14

194103A1

SPACER

Cab Mount Support

4шт.

15

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

4шт.

16

232-4118

NUT,1/2"-13, GC

4шт.

18

192720A1

GUARD

Cab, Front Cover

1шт.

19

123566A1

ISOLATOR

Cab Mount

8шт.

20

426-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

4шт.

21

D35009

WASHER

21/32 x 2-1/2 x 11/64

4шт.

22

232-41110

NUT,5/8"-11, GC

4шт.

23

86867C2

BRACKET

Front Mast, At Cab Support Channel

2шт.

24

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

25

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

26

495-11053

WASHER,1/2", SAE

12шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

28

425-108

NUT,1/2" - 13, Gr 5

12шт.

29

301846A6

FRAME ASSY

Main, Cab and Platform, Partial View, Serial Range: -Y6T011502

1шт.

29

87354984

Main, Cab and Platform, Partial View, Start Serial: Y6T011502

1шт.

29

87458982

Main, Cab and Platform, Partial View, Start Serial: Y6T011701

1шт.
