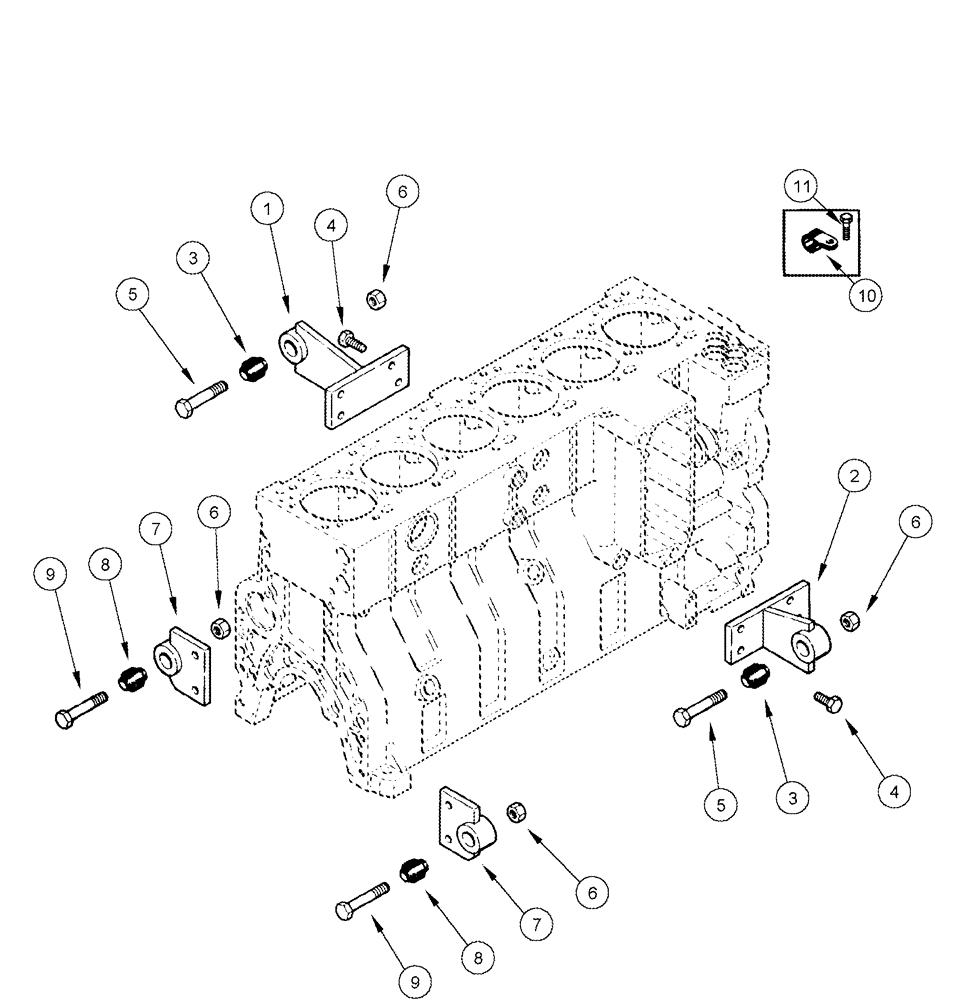

Запчасти Case IH CPX620 (02-08) - ENGINE MOUNTING (01) - ENGINE

1

368377A1

Engine, Left Hand Front, With Bushing

1шт.

2

368378A1

Engine, Right Hand Front, With Bushing

1шт.

3

672870R1

BUSHING

1шт.

4

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

8шт.

5

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

6

231-41110

LOCK NUT,5/8"-11, GB

4шт.

7

2216809R91

Engine, Flywheel End, With Bushing

2шт.

8

672870R1

BUSHING

2шт.

9

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

10

1345263C1

CLIP

3/4 ID

2шт.

11

413-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5

2шт.
