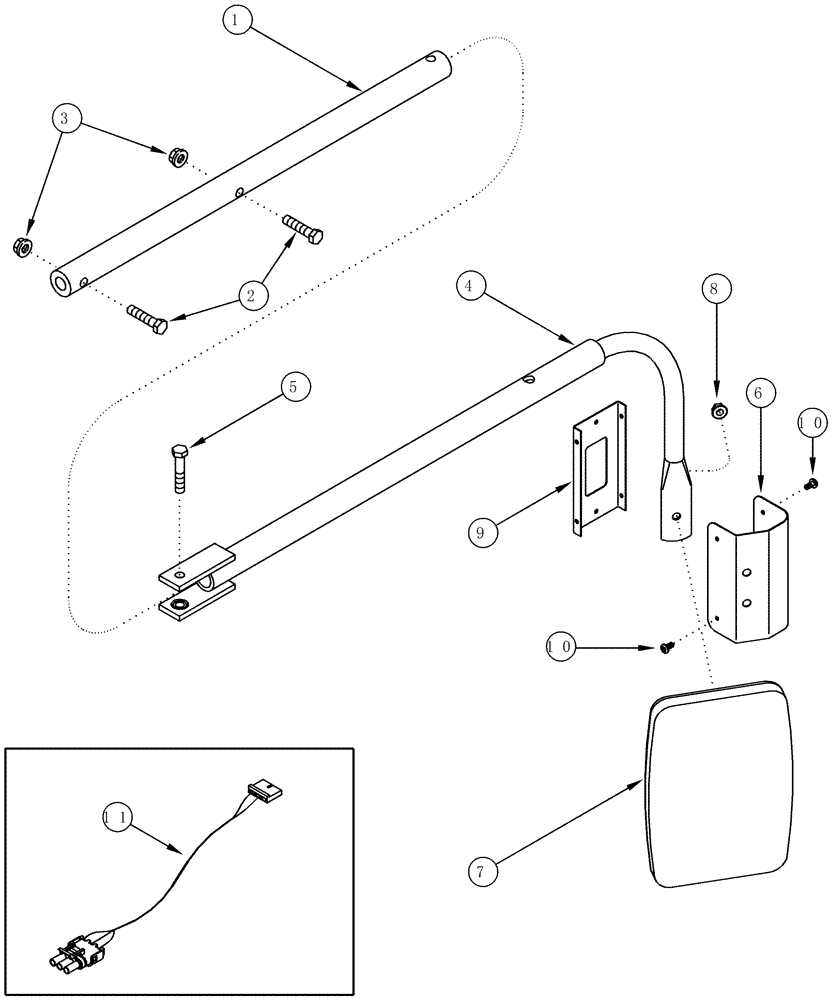

Запчасти Case IH CPX620 (09E-22) - CAB - MIRROR, RIGHT HAND REAR VIEW (10) - CAB & AIR CONDITIONING

1

198901A1

TUBE,38.1 mm OD

Mirror Support Inner

1шт.

2

614-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8, Full Thd

2шт.

3

825-51412

FLANGE NUT,M12, Flg Ser

2шт.

4

178342A3

SUPPORT

Mirror Support Outer, Right Hand

1шт.

5

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

1шт.

6

291911A1

SUPPORT

1шт.

7

1283403C1

MIRROR

1шт.

8

122379A1

FLANGE NUT

3/8

1шт.

9

127960A1

SUPPORT

1шт.

10

1321447C1

SELF-TAP SCREW,Cross Pan Hd, 1/4 -20 x 1/2" OAL

4шт.

11

447525A1

HARNESS

Right Hand Mirror

1шт.
