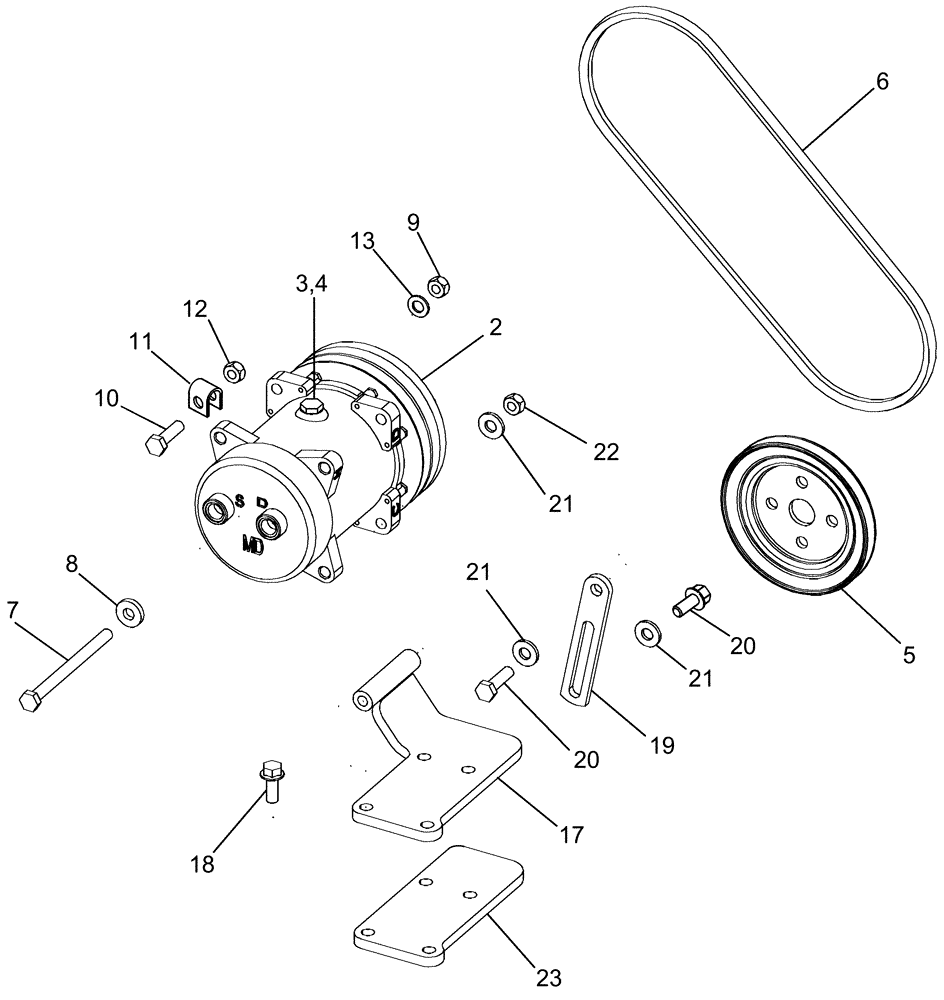

Запчасти Case IH CPX620 (09E-21) - AIR CONDITIONING SYSTEM - COMPRESSOR MOUNTING AND DRIVE (10) - CAB & AIR CONDITIONING

86993462

AIRCOND. COMPRESSOR

Inc. 1 - 4

1шт.

86993462GV

AIRCOND. COMPRESSOR

Value

1шт.

86993462R

REMAN-COMPRESSOR

CPX620 (5/05-8/06)

1шт.

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

48017123R

REMAN-A/C COMP KIT

Reman Kit -- A/C Compressor, Receiver-Dryer, Valve

1шт.

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

1

135324A2

CLUTCH

1шт.

2

NSS

NOT SOLD SEPARAT

COMPRESSOR

1шт.

3

A49667

PLUG

1шт.

4

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

5

431716A1

PULLEY,147mm OD

Compressor Drive

1шт.

6

87351975

V-BELT,12.70 mm W x 1007.00 mm L

A/C Drive to Y6T011701

1шт.

6

87351975

V-BELT,12.70 mm W x 1007.00 mm L

A/C Drive, Start Serial: Y6T011701

1шт.

7

86980413

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

1шт.

8

3120737R1

WASHER,10.8mm ID x 25mm OD x 5mm Thk

1шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

1шт.

10

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

11

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

12

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

17

87311814

BRACKET Compressor Mounting, Serial Range: -Y6T011501

1шт.

17

87272605

MOUNTING PARTS

A/C Compressor Mount, Start Serial: Y6T011501

1шт.

18

905-10035

BOLT,Hex Flg, M10 x 35mm

, Serial Range: -Y6T011501

4шт.

18

905-10025

BOLT,Hex Flg, M10 x 25mm

, Start Serial: Y6T011501

4шт.

19

84716C1

SUPPORT

Adjusting

1шт.

20

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

21

896-16010

WASHER,11mm ID x 24mm OD x 3mm Thk

3шт.

22

832-41310

NUT,M10 x 1.5, Cl 10

1шт.

23

87271896

SPACER

A/C Mount, Serial Range: -Y6T011501

1шт.
