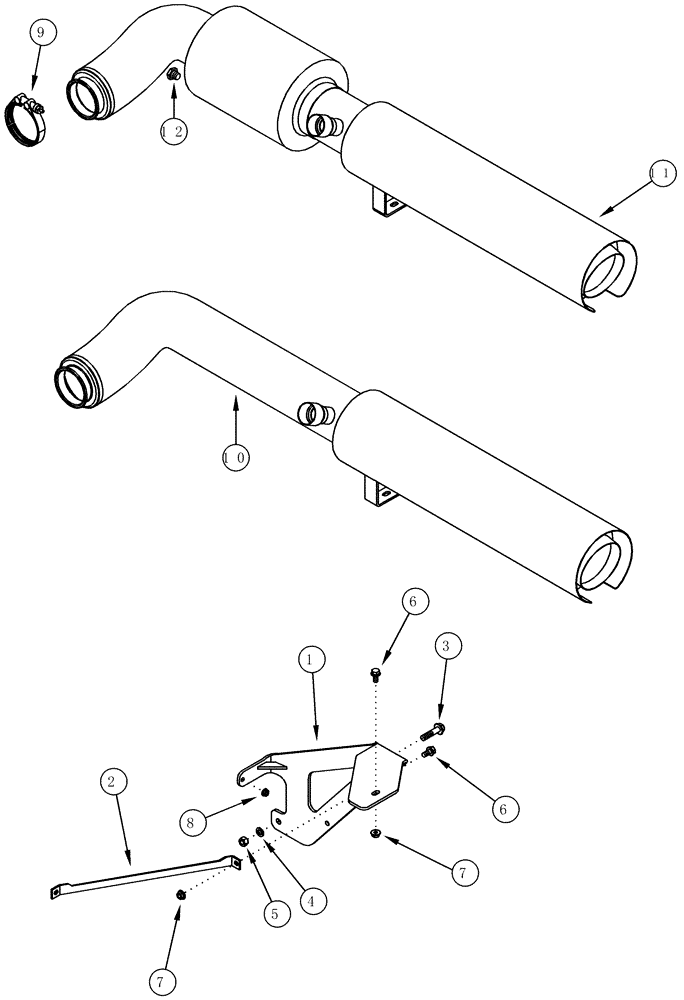

Запчасти Case IH CPX620 (02-07) - EXHAUST SYSTEM (01) - ENGINE

1

444606A2

SUPPORT

Muffler, Serial Range: -Y6T011701

1шт.

2

87421046

BRACE

, Serial Range: -Y6T011701

1шт.

3

87025455

BOLT,Hex, 1/2" - 13 x 2", Gr 8

1шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

5

429-108

NUT,1/2"-13, G8

1шт.

6

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

7

425-286

FLANGE NUT,Flg, 3/8"-16, G5

2шт.

8

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

9

A170807

CLAMP,102mm ID

Includes Hardware

1шт.

10

412447A3

MUFFLER

Standard

1шт.

11

282198A4

MUFFLER

Spark Arrester, Inc. 12

1шт.

12

217-409

PLUG,Hex Hd, 1/2" - 14 NPT

1шт.
