Запчасти Case IH CPX620 (09E-16) - HEATER / AIR CONDITIONING - EVAPORATOR HEATER CORE & BLOWER MOUNTING - BSN Y6T011701 (10) - CAB & AIR CONDITIONING

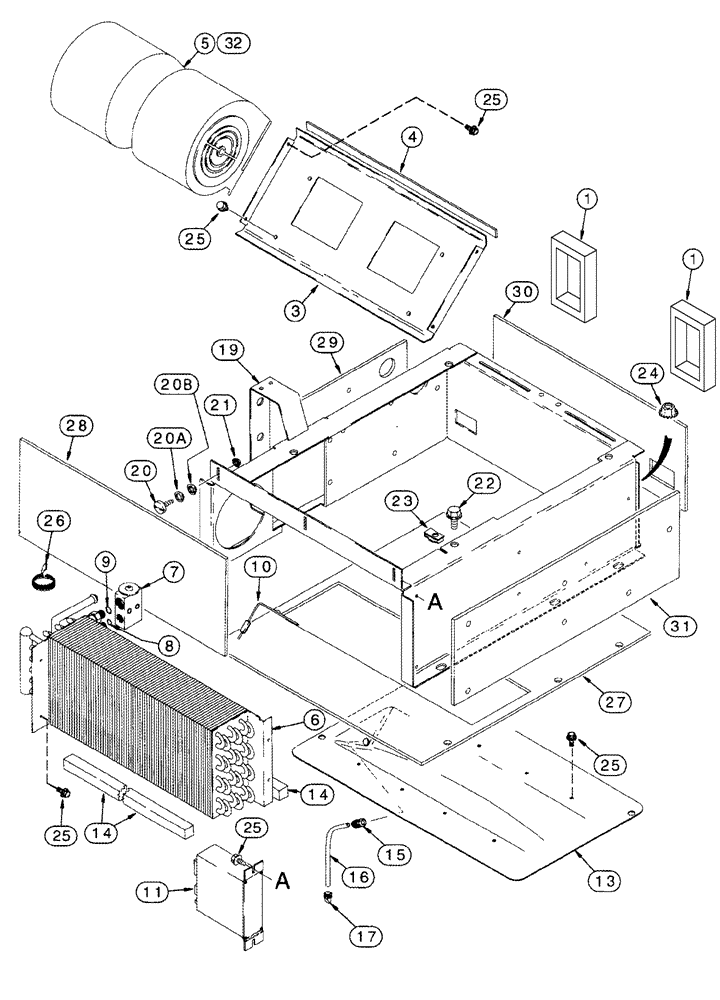

Схема запчастей Case IH CPX620 - (09E-16) - HEATER / AIR CONDITIONING - EVAPORATOR HEATER CORE & BLOWER MOUNTING - BSN Y6T011701 (10) - CAB & AIR CONDITIONING
1
31
3
22
25
25
8
21
20a
30
4
25
24
20
28
16
25
13
29
6
5
15
14
26
32
9
7
23
10
20b
14
25
11
17
19
27
1

Артикул

Название

Примечание

Количество

1

124999A1

GASKET

Louver

2шт.

3

377565A1

PLATE

1шт.

4

377566A1

GASKET

1шт.

5

323610A1

BLOWER

1шт.

84222524R

REMAN-BLOWER

CPX620 BSN Y6T011701 (5/05-8/06), Reman for New P/N 323610A1

1шт.

84222524C

CORE-BLOWER

Return Number

1шт.

449221A1

BODY

Inc. 6 - 9

1шт.

6

377560A1

CORE-COMPRESSOR

1шт.

7

386535A1

VALVE

1шт.

8

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

9

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

10

184720A2

SENSOR

Temperature, Evaporator

1шт.

10a

121067A1

FASTENER

1 x 12, Velcro, Cut From 121068A1, Not Illustrated

4шт.

11

239951A3

MODULE

1шт.

13

121595A2

PAN

1шт.

14

192269A1

FOAM INSULATION,25mm W x 500mm L x 19mm Thk

500 mm (19-5/8 in), Cut From 1971350C1

2шт.

15

1250522C3

FITTING

2шт.

16

122116A1

HEATER HOSE,12.95 mm ID x 1524.00 mm

Cut from Bulk

2шт.

17

109239C2

CHECK VALVE

2шт.

19

377374A1

SUPPORT

1шт.

20

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

3шт.

20a

492-11010

LOCK WASHER,#10

3шт.

20b

493-81000

LOCK WASHER,Ext-Int Tooth, #10

3шт.

21

231-51409

SERRATED NUT,Flg, USR, #10-24

3шт.

22

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

23

488837C1

SPRING NUT

5/16

4шт.

24

825-5148

SERRATED NUT,M8, Flg Ser

6шт.

25

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

23шт.

26

83822C1

TAPE

610 mm (24 in), Cut From 1954475C1

4шт.

27

279438A1

INSULATOR

Center Floor

1шт.

28

279305A2

INSULATOR

Rear Wall

1шт.

29

377557A1

INSULATOR

Left Hand

1шт.

30

279233A1

INSULATOR

Center

1шт.

31

279230A2

INSULATOR

RH

1шт.

32

87333653

WIRE HARNESS

Blower Motor Jumper, Not Shown

1шт.

Выбрано товаров: 35
