Запчасти Case IH CPX620 (09E-12) - SEAT, OPERATOR - AIR SUSPENSION, PLATE AND SLIDES (10) - CAB & AIR CONDITIONING

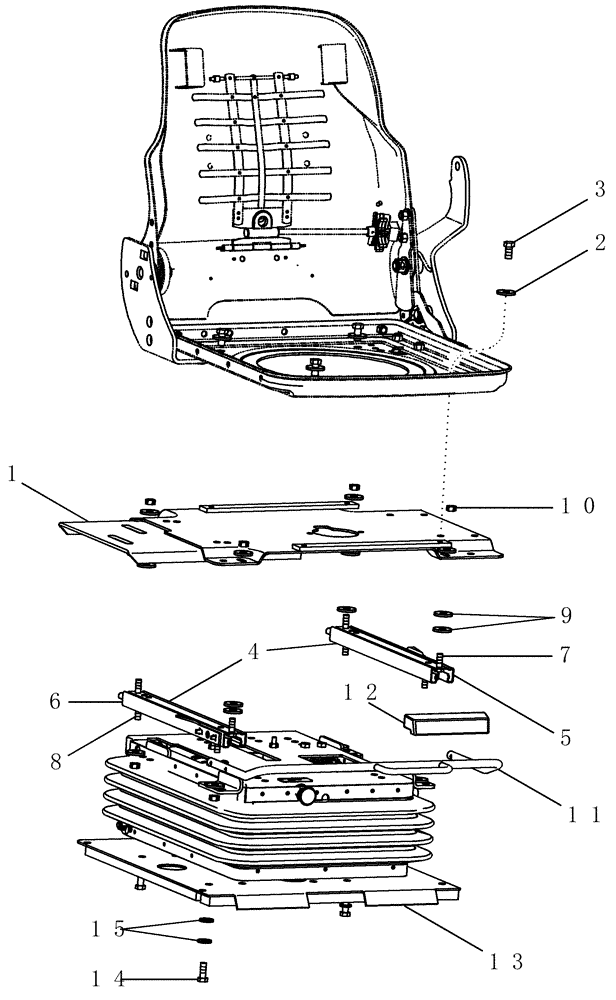

Схема запчастей Case IH CPX620 - (09E-12) - SEAT, OPERATOR - AIR SUSPENSION, PLATE AND SLIDES (10) - CAB & AIR CONDITIONING
1
9
10
4
14
11
5
7
3
15
2
12
13
8
6

Артикул

Название

Примечание

Количество

86989910

SEAT

Inc. 1 - 18, Inc. Figure(s) 09E-11, 09E-13

1шт.

1

87413045

PLATE

Seat Adapter

1шт.

2

1974732C1

WASHER

4шт.

3

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

4

87416482

KIT

Locking Slides, Inc. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

Slide Assy, Left Hand

1шт.

6

NSS

NOT SOLD SEPARAT

Slide Assy, Right Hand

1шт.

7

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

8

117-109

SQUARE BOLT,5/18" - 16 x 3/4", Gr 5

4шт.

9

1974732C1

WASHER

16шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

11

86994163

SERVICE KIT

BAR, Fore / Aft Slide

1шт.

12

180587A1

HANDLE

Knob

1шт.

13

87413043

PLATE

Seat Mounting

1шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

15

495-11034

WASHER,5/16", SAE

4шт.

16

263-10610

SELF-TAP SCREW,Slotted Pan Hd, #12 x 5/8"

Not Shown

1шт.

17

492-11012

LOCK WASHER,#12

Not shown

1шт.

18

495-31022

WASHER,#10

Not Shown

1шт.

Выбрано товаров: 19
