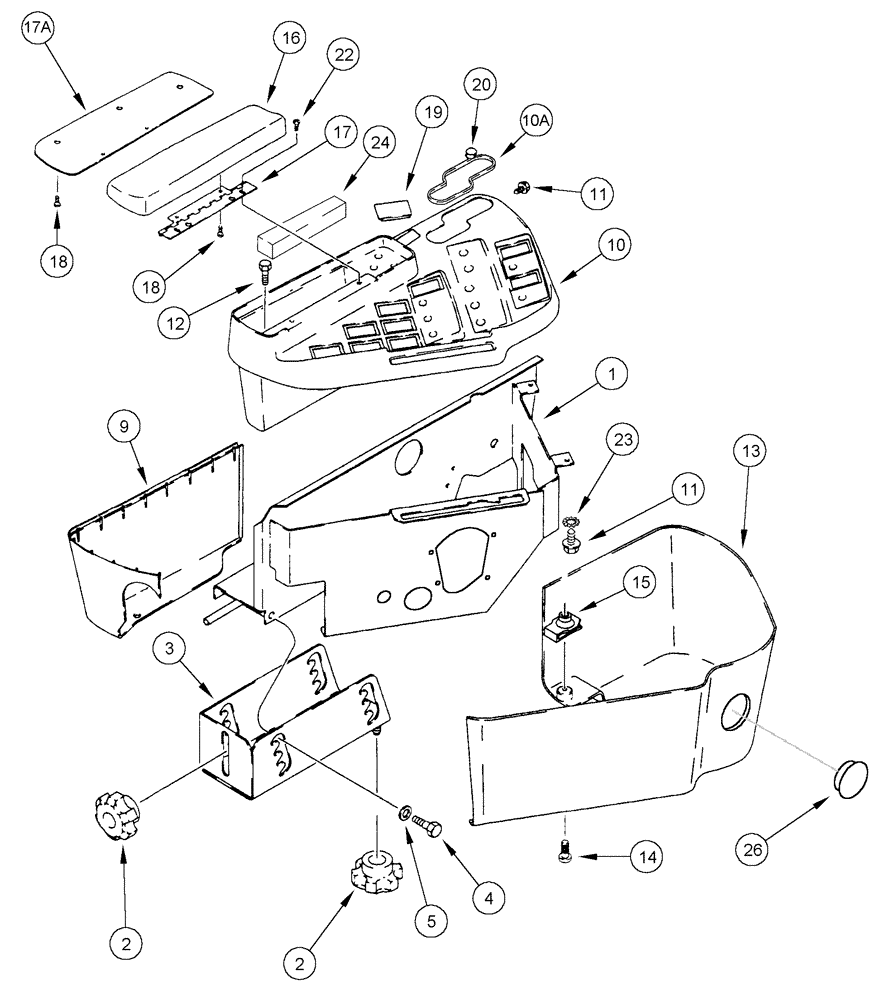

Запчасти Case IH CPX620 (09E-08) - CAB CONSOLE, RIGHT HAND (10) - CAB & AIR CONDITIONING

1

345286A1

FRAME ASSY

1шт.

2

118781A1

KNOB

3шт.

3

117107A2

SUPPORT

1шт.

4

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

4шт.

5

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

9

130412A1

COVER

Rear

1шт.

10

87457694

COVER ASSY

COVER ASSY Right Hand, Inc. 10A, 10B

1шт.

10a

128833A2

GUIDE

1шт.

10b

87458088

SHEET

SHEET Decals 6

1шт.

See Figure 09F-16

1шт.

11

841-4410

SCREW,HWH, M4 x 10mm, Cl 4.8

2шт.

12

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

1шт.

13

118321A2

SKIRT

Front

1шт.

14

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

4шт.

15

131-861

SPRING NUT,Tinn, U, #10-24

4шт.

16

128970A3

ARMREST

Inc. 17 - 18

1шт.

17

128849A2

HINGE

1шт.

17a

185546A1

PLATE

1шт.

18

185544A1

SCREW

5шт.

19

245918C1

LENS

Blanking, Rocker Switch Opening

2шт.

20

353-402

PLUG,Dome, .375" hole, Nylon

Switch Opening

8шт.

22

841-4410

SCREW,HWH, M4 x 10mm, Cl 4.8

2шт.

25

353-404

PLUG,Dome, .500" hole, Nylon

Not Illustrated

1шт.

26

86625129

PLUG,Dome, 1" Hole, Nylon

1шт.

23

493-81000

LOCK WASHER,Ext-Int Tooth, #10

2шт.
