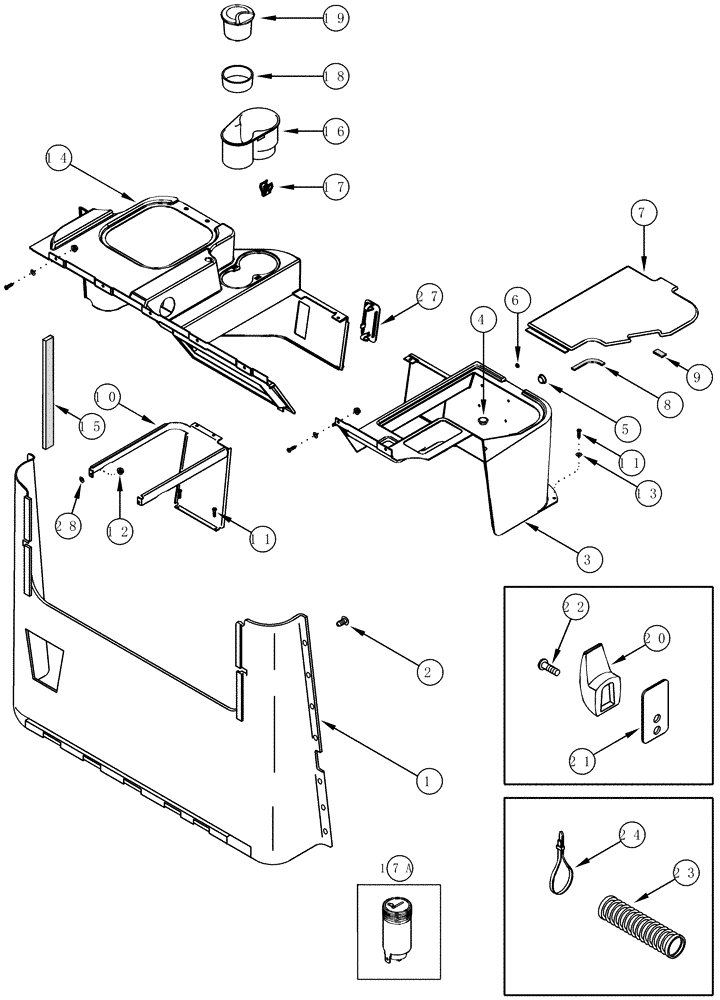

Запчасти Case IH CPX620 (09E-07) - CAB INTERIOR (10) - CAB & AIR CONDITIONING

1

198900A2

PANEL

Rear Trim, Inc. 2

1шт.

2

121064A1

CLASP

14шт.

3

401088A1

COVER

Pedestal, RH

1шт.

4

353-410

PLUG,Dome, .875" hole, Nylon

1шт.

5

86625129

PLUG,Dome, 1" Hole, Nylon

1шт.

6

353-400

PLUG,Dome, .250" hole, Nylon

4шт.

7

401090A1

COVER

Fuse Access

1шт.

8

1990258C1

SEAL

80 mm (3-5/32 in), Cut From 187874C2

2шт.

9

121067A1

FASTENER

1 x 12, Velcro, Cut From 121068A1

2шт.

10

398456A1

SUPPORT

Pedestal, LH

1шт.

11

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

13шт.

12

825-5146

SERRATED NUT,M6, Flg Ser

2шт.

13

495-31022

WASHER,#10

11шт.

14

401089A1

COVER

Pedestal, LH

1шт.

15

192269A1

FOAM INSULATION,25mm W x 500mm L x 19mm Thk

500 mm (19-5/8 in), Cut From 1971350C1

1шт.

16

401091A1

HOLDER

Cup

1шт.

17

278316A2

CLIP

Cup Holder Retainer

2шт.

434227A1

CIGAR LIGHTER

Inc. 17A, 18, 19, Order Components

1шт.

17a

371831A1

CIGAR LIGHTER

Element, 12V

1шт.

18

301901A1

INSERT

Cup Holder

1шт.

19

302456A1

ASH TRAY

1шт.

20

3234176R1

COAT HOOK

1шт.

21

60-6520T1

PLATE

1шт.

22

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

1шт.

23

236586A1

CONDUIT

990 mm (39 in) Cable

1шт.

24

1978896C1

STRAP

774.7 mm (30,6 in)

1шт.

27

302118A1

COVER

1шт.

28

195-81026

WASHER,.266" x 13/16" x .079"

2шт.
