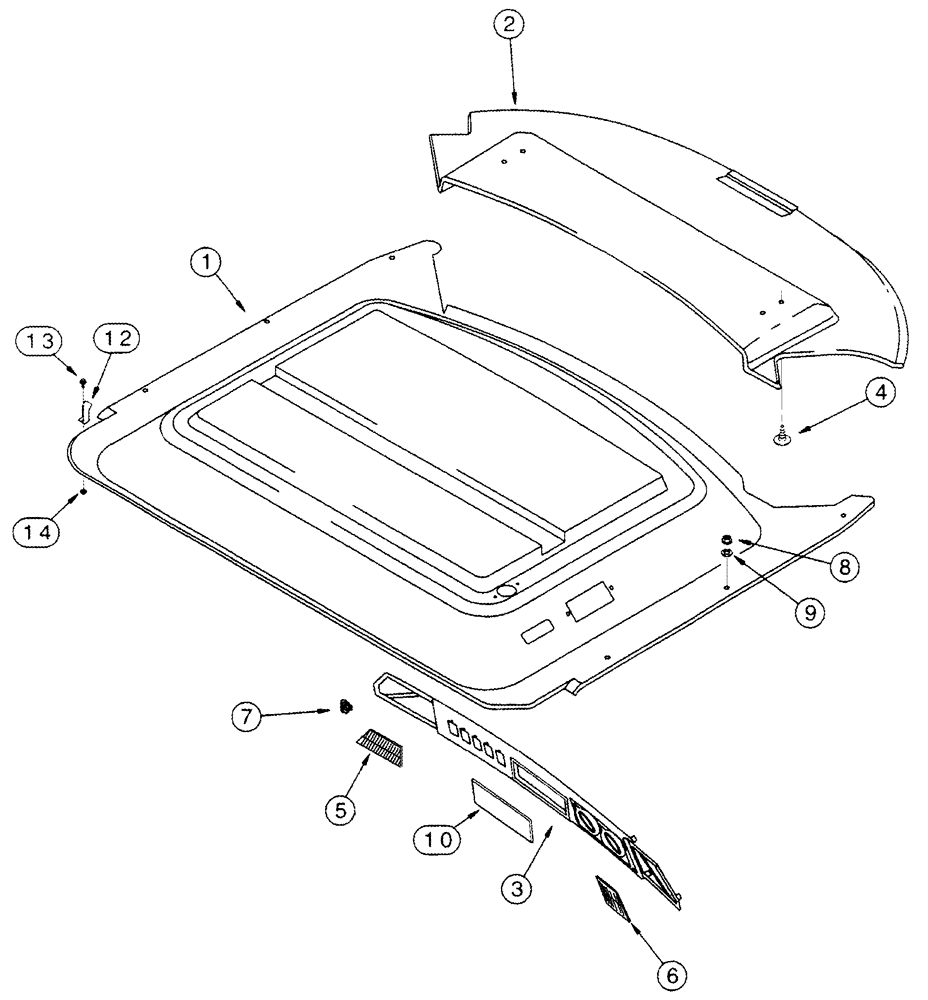

Запчасти Case IH CPX620 (09E-06) - CAB HEADLINER (10) - CAB & AIR CONDITIONING

1

121570A8

ROOF LINING

Rear

1шт.

2

121815A3

ROOF LINING

Front

1шт.

3

371552A1

PANEL

Replaces 136705A2, Serial Range: -Y6T011701

1шт.

3

87309490

PANEL

Overhead Switch, Start Serial: Y6T011701

1шт.

4

260-16524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

12шт.

5

1971229C2

COVER

Speaker, LH

1шт.

6

1971349C2

COVER

Speaker, RH

1шт.

7

97058C1

CLIP

4шт.

8

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

6шт.

9

96814C3

WASHER,10mm ID x 22.25mm OD x 2.25mm Thk

6шт.

10

1535219C1

COVER

Radio Opening

1шт.

12

116812A1

CLIP

Headliner

2шт.

14

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

13

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

2шт.
