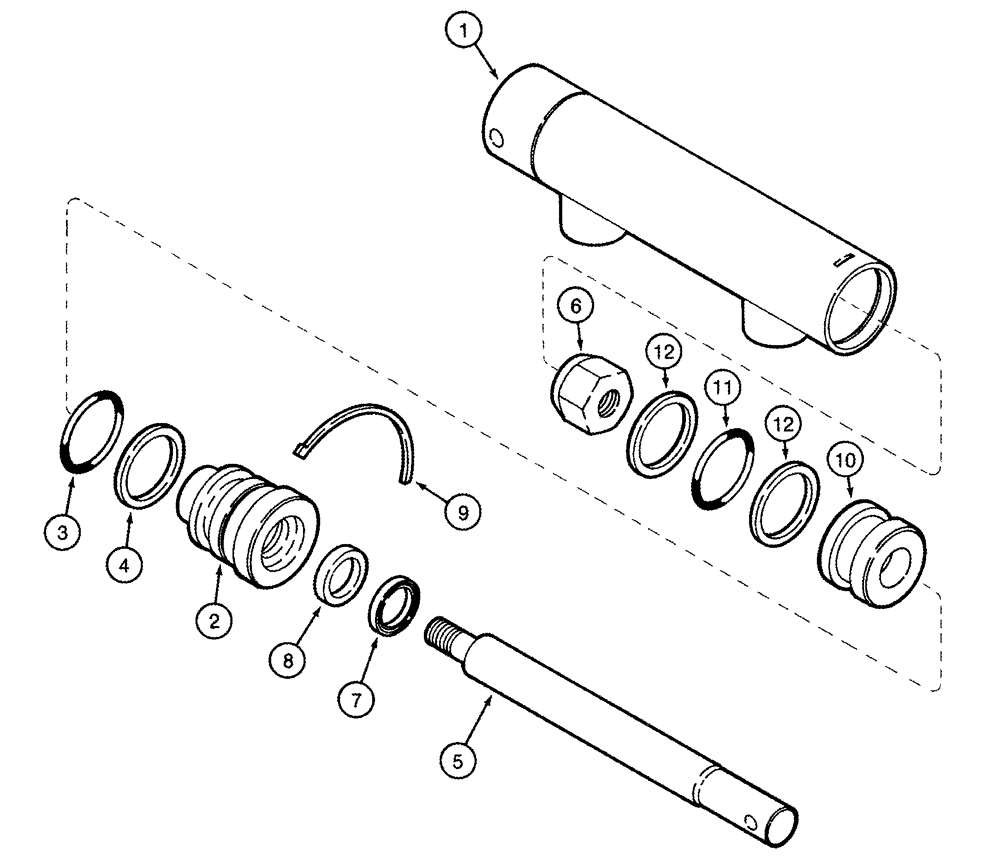

Запчасти Case IH CPX620 (08-44) - FAN ENGAGEMENT CYLINDER ASSEMBLY - BSN Y6T011706 (07) - HYDRAULICS

133405C92

CYLINDER

51 ID x 63 mm strk, Fan Clutch, Inc. 1 - 12

1шт.

87337239R

REMAN-HYD CYLINDER

CPX620 CASE IH COTTON PICKER, BSN Y6T011706, 51 ID x 63 mm strk., Fan Clutch (5/05-8/06), Reman for New PN 133405C92

1шт.

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE

1шт.

2

108641C1

GLAND

1шт.

3

238-6326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1шт.

4

381293R1

BACK-UP RING,2.015" ID x 0.047" Width

Backup

1шт.

5

108639C1

PISTON ROD

1шт.

6

231-41310

LOCK NUT,5/8"-11, GB

1шт.

7

532773R1

WIPER SEAL

1шт.

8

389500A1

SEAL,26.18mm ID x 32.17mm OD x 4.66mm Thk

1шт.

9

461180R1

RETAINER

169 mm (6-1/4 in), Cut From 140600C1

1шт.

10

108640C2

PISTON

Cylinder

1шт.

11

238-6326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1шт.

12

381850R2

BACK-UP RING,Split, 41.68mm ID x 51.18mm OD x 2.39mm Thk

2шт.

63884C92

SEAL KIT

Inc. 3, 4, 7, 8, 9, 11, 12

1шт.
