(08-37) - BASKET LIFT INTERMEDIATE CYLINDER ASSEMBLY - BSN Y6T011505

Запчасти Case IH CPX620 (08-37) - BASKET LIFT INTERMEDIATE CYLINDER ASSEMBLY - BSN Y6T011505 (07) - HYDRAULICS

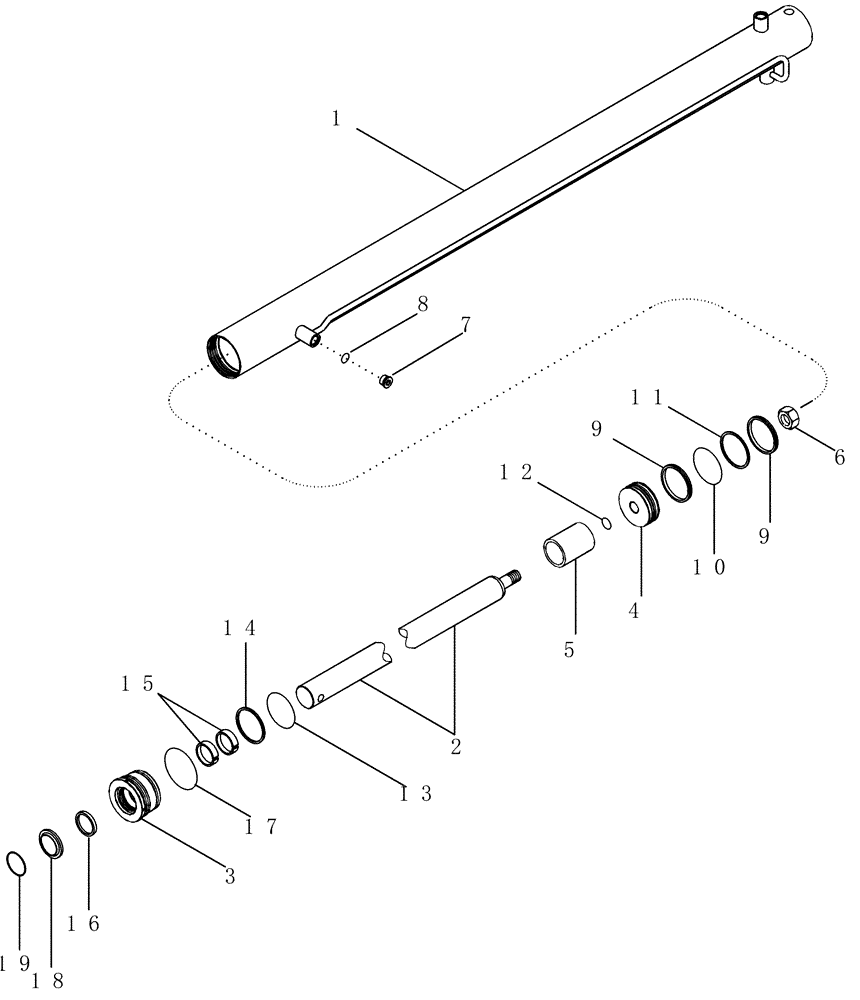

Схема запчастей Case IH CPX620 - (08-37) - BASKET LIFT INTERMEDIATE CYLINDER ASSEMBLY - BSN Y6T011505 (07) - HYDRAULICS
8
4
9
6
2
5
10
12
14
3
11
1
19
7
16
18
17
15
9
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

442982A2

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 1828.8mm Stroke

Basket Lift, Intermediate, 89.7 mm Bore, Inc. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE, Cylinder

1шт.

2

87425216

PISTON ROD

Cylinder

1шт.

3

87425235

GLAND

1шт.

4

87425236

PISTON

1шт.

5

87425218

SPACER

1шт.

6

232-46324

LOCK NUT,1 1/2"-12, GC

1шт.

7

9841223

PLUG,1-1/16" - 12 ORB

Incl. 8

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

87425237

SEAL KIT

Seal Replacemant, Inc. 9 - 19

1шт.

9

NSS

NOT SOLD SEPARAT

RING, Wear

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL, Piston

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER, Backup

1шт.

15

NSS

NOT SOLD SEPARAT

RING, Wear

1шт.

16

NSS

NOT SOLD SEPARAT

CUP

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING

1шт.

18

NSS

NOT SOLD SEPARAT

WIPER

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING

1шт.
