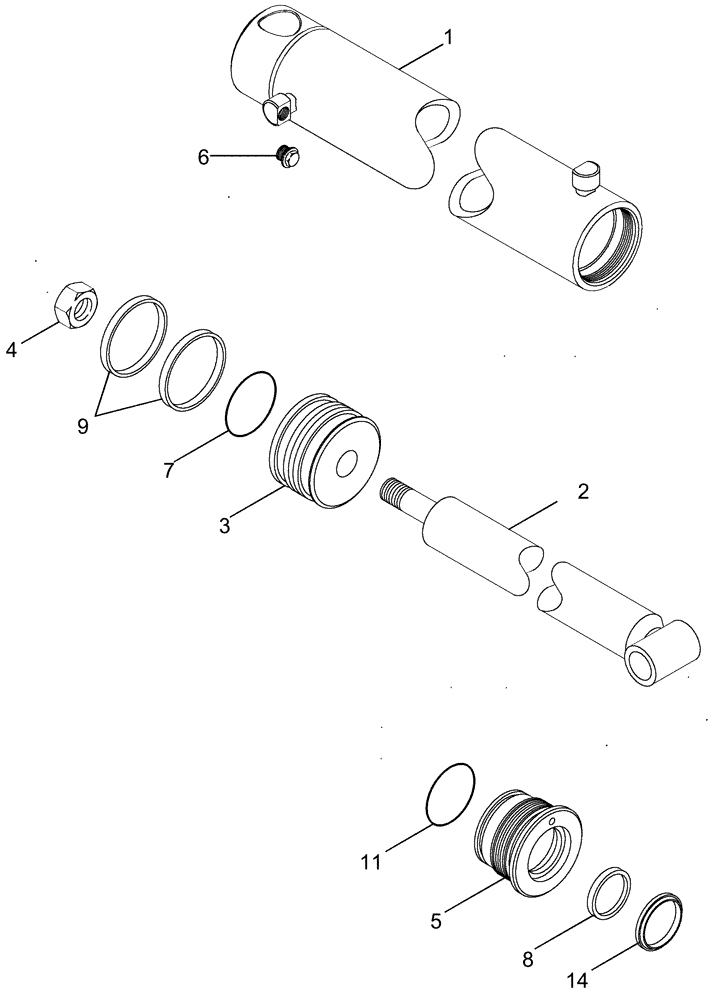

Запчасти Case IH CPX620 (08-34) - DRUM SPREAD CYLINDER ASSEMBLY - ASN Y6T011502 (07) - HYDRAULICS

87272673

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 374.9mm Stroke

Drum Spread, Inc. 1 - 14

2шт.

1

NSS

NOT SOLD SEPARAT

Tube

1шт.

2

87385488

ROD

1шт.

3

NSS

NOT SOLD SEPARAT

Piston

1шт.

4

NSS

NOT SOLD SEPARAT

Locknut

1шт.

5

NSS

NOT SOLD SEPARAT

Head

1шт.

6

NSS

NOT SOLD SEPARAT

Plug

3шт.

87384989

SEAL KIT

Kit, Inc. 7 - 14

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Piston Seal

1шт.

9

NSS

NOT SOLD SEPARAT

Wear Ring

2шт.

10

NSS

NOT SOLD SEPARAT

Back-Up Washer

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

12

NSS

NOT SOLD SEPARAT

Wear Ring

1шт.

13

NSS

NOT SOLD SEPARAT

U-Cup Rod Seal

1шт.

14

NSS

NOT SOLD SEPARAT

Rod Wiper

1шт.
