(08-33) - DRUM SPREAD CYLINDER ASSEMBLY - BSN Y6T011502

Запчасти Case IH CPX620 (08-33) - DRUM SPREAD CYLINDER ASSEMBLY - BSN Y6T011502 (07) - HYDRAULICS

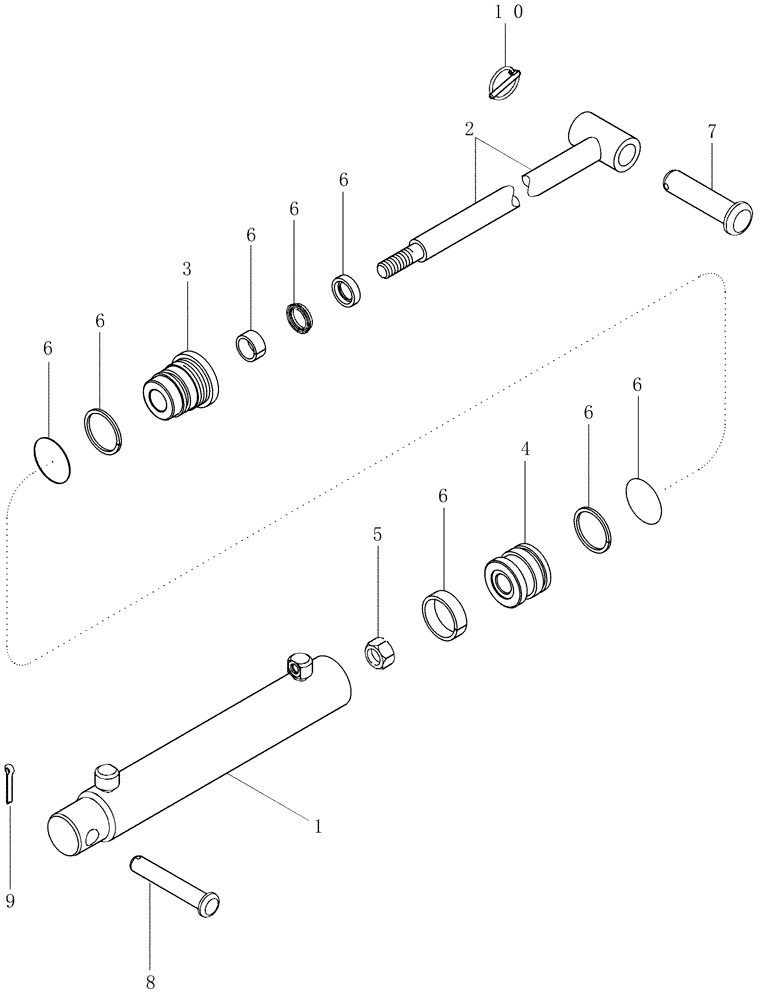

Схема запчастей Case IH CPX620 - (08-33) - DRUM SPREAD CYLINDER ASSEMBLY - BSN Y6T011502 (07) - HYDRAULICS
10
5
3
6
9
6
6
7
8
6
6
4
2
6
6
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87423752

CYLINDER,Double Acting, 31.75mm Rod, 374.65mm Stroke

CYLINDER ASSY. 70 mm (2-3/4in) ID x 375 mm (14-3/4 in) strk, Drum Spread, Inc. 1 - 6

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE

1шт.

2

87415311

CYLINDER

ROD

1шт.

3

87415312

CYLINDER

GLAND

1шт.

4

87415313

CYLINDER

PISTON Cylinder

1шт.

5

231-46112

LOCK NUT,3/4"-16, GB

1шт.

6

87440866

SEAL KIT

PACKAGE, SEALS

1шт.

7

439-11656

HEADED PIN,25.4mm OD x 88.9mm L

2шт.

8

439-11664

HEADED PIN,1" x 4"

2шт.

9

432-1620

COTTER PIN,1/4" x 1 1/4"

2шт.

10

A30338

PIN

1/4 Lynch

2шт.

11

76349

PLUG,9/16" - 18 ORB

Alternate Rod End Ports

1шт.
