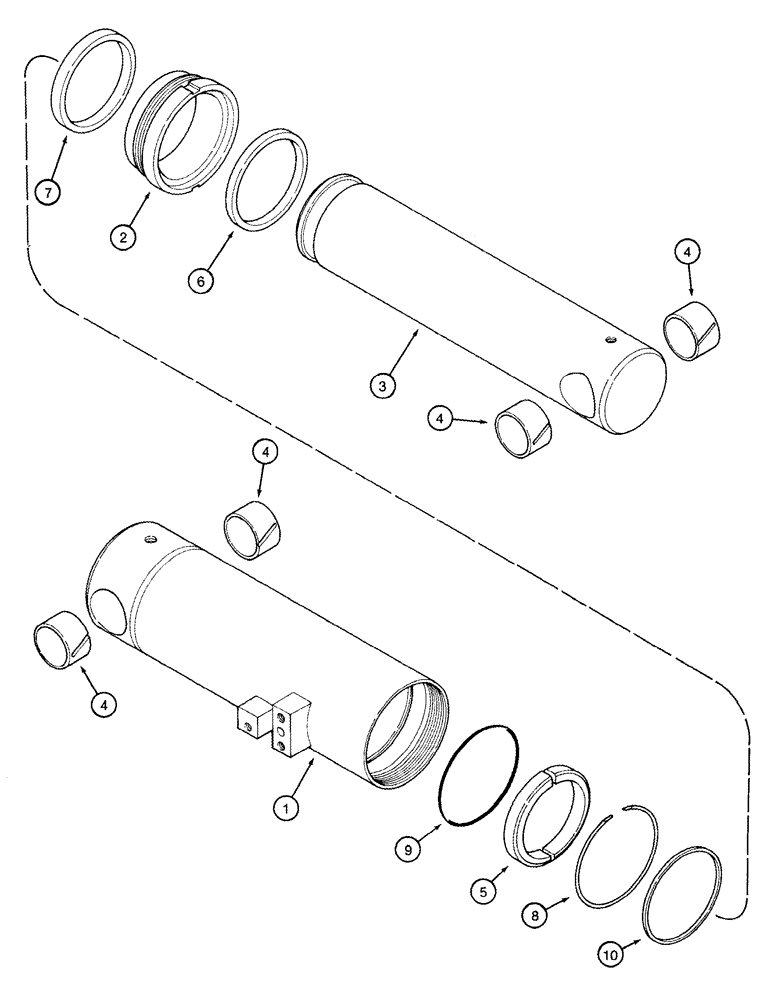

Запчасти Case IH CPX620 (08-31) - DRUM TILT CYLINDER ASSEMBLY - BSN Y6T011501 (07) - HYDRAULICS

107785A1

CYLINDER ASSY.

102 ID x 185 mm strk, Drum Tilt, Inc. 1 - 10

1шт.

1

107840A1

TUBE

1шт.

2

1980306C1

GLAND

1шт.

3

1346280C1

PISTON ROD

1шт.

4

1288568C1

BUSHING,44.5mm ID x 47.65mm OD x 28mm L

4шт.

5

NSS

NOT SOLD SEPARAT

PISTON

1шт.

1980307C1

SEAL KIT

Inc. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL

1шт.

8

NSS

NOT SOLD SEPARAT

WIRE

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING

1шт.

10

NSS

NOT SOLD SEPARAT

RING

1шт.
